SFR144K2TLZWN Dental Bearings

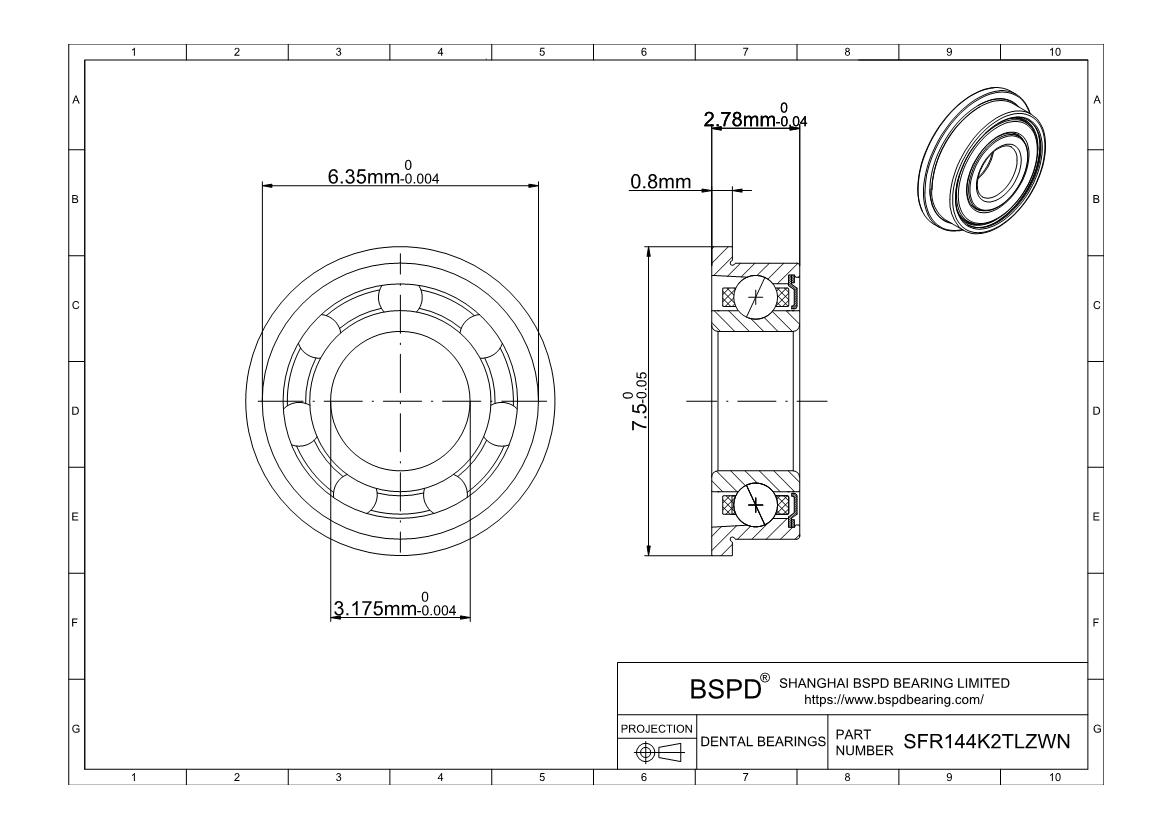

Dimensions: Bore (Inner) Diameter: 3.175 mm; Outer Diameter: 6.35 mm; Width (Thickness): 2.78 mm;

SFR144K2TLZWN
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
Seal Type Single shield
Precision Rating P4 (ABEC-7)
Structure Flanged
Ball Bearing Type Angular contact
Contact Angle 18 º
Part Number SFR144K2TLZWN
Other MFG Code
Bore Dia (d) 3.175mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 6.35mm
Outer Dia Tolerance -0.004mm to 0
Width (B) 2.78mm
Width Tolerance -0.04mm to 0
Flange OD 7.5mm
Flange Thickness 0.8mm
Ring Material AISI440C Stainless Steel
Ball Material Si3N4 balls
Cage Material Torlon
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (RPM) 500,000
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass (grams) 0.4
RoHS Compliant
SFR144K2TLZWN
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Miniature Bearing Applications SFR144K2TLZWN ? Dental Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
