SR144K1TLKW Dental Bearings

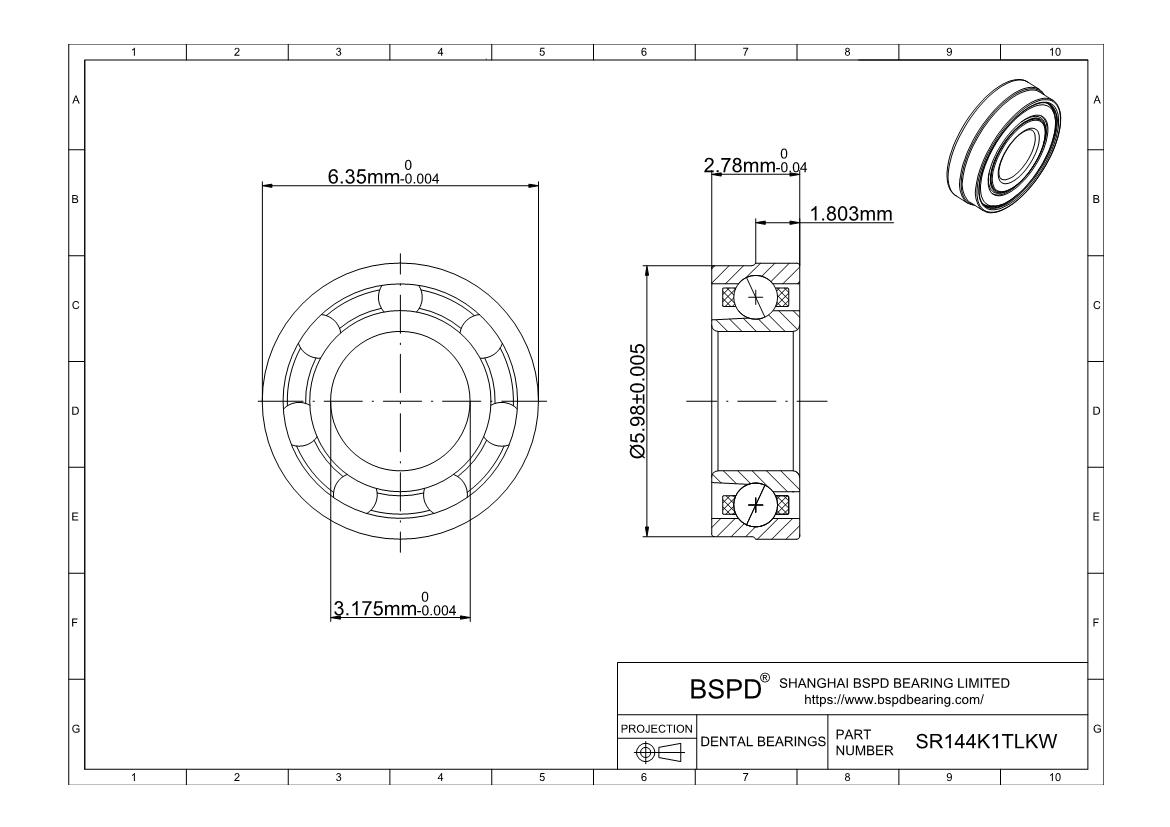

Dimensions: Bore (Inner) Diameter: 3.175 mm; Outer Diameter: 6.35 mm; Width (Thickness): 2.78 mm;

SR144K1TLKW
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
Seal Type Open
Precision Rating P4 (ABEC-7)
Structure Stepped
Ball Bearing Type Angular contact
Contact Angle 18 º
Part Number SR144K1TLKW
Other MFG Code
Bore Dia (d) 3.175mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 6.35mm
Outer Dia Tolerance -0.004mm to 0
Width (B) 2.78mm
Width Tolerance -0.04mm to 0
Stepped Outer Dia 5.98mm
Effective Outer Ring Width 1.803mm
Ring Material AISI440C Stainless Steel
Ball Material AISI440C stainless steel balls
Cage Material Torlon
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (RPM) 500,000
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass (grams) 0.4
RoHS Compliant
SR144K1TLKW
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Miniature Bearing Applications SR144K1TLKW ? Dental Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
