SR144K1TLKWN Dental Bearings

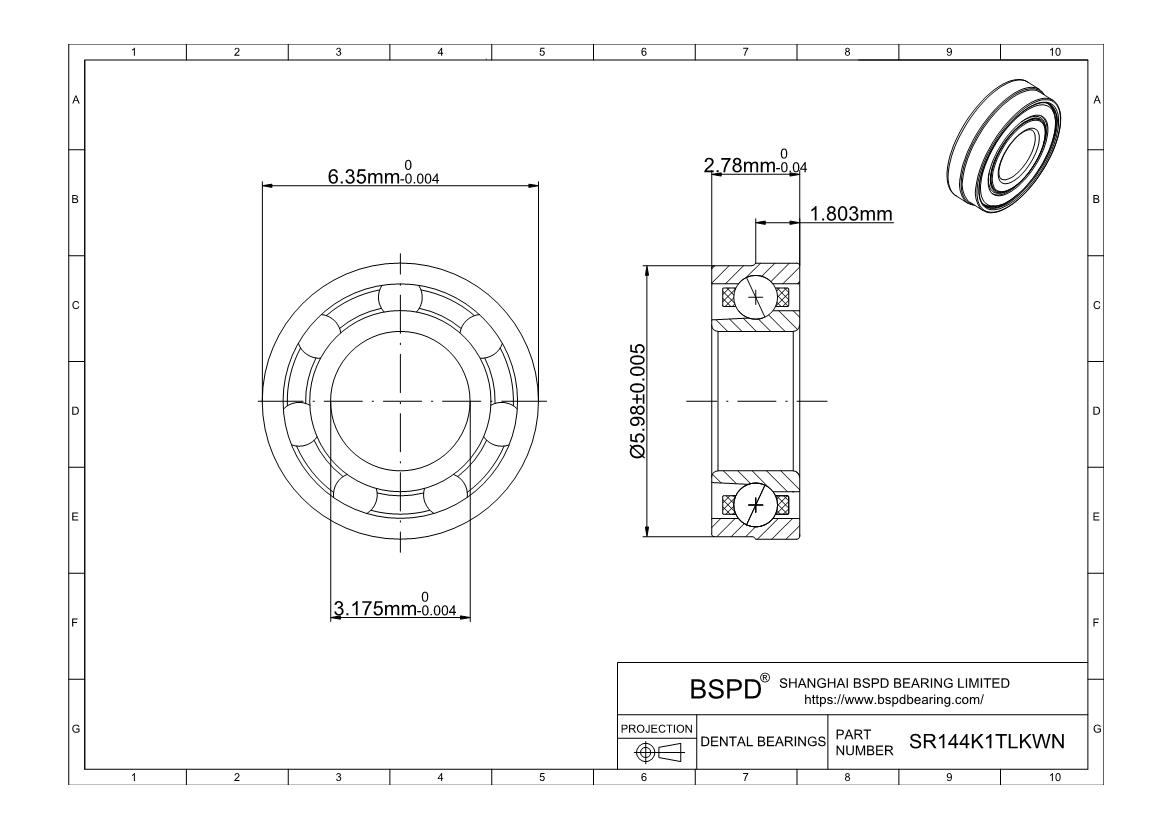

Dimensions: Bore (Inner) Diameter: 3.175 mm; Outer Diameter: 6.35 mm; Width (Thickness): 2.78 mm;

SR144K1TLKWN
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
Seal Type Open
Precision Rating P4 (ABEC-7)
Structure Stepped
Ball Bearing Type Angular contact
Contact Angle 18 º
Part Number SR144K1TLKWN
Other MFG Code
Bore Dia (d) 3.175mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 6.35mm
Outer Dia Tolerance -0.004mm to 0
Width (B) 2.78mm
Width Tolerance -0.04mm to 0
Stepped Outer Dia 5.98mm
Effective Outer Ring Width 1.803mm
Ring Material AISI440C Stainless Steel
Ball Material Si3N4 balls
Cage Material Torlon
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (RPM) 500,000
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass (grams) 0.4
RoHS Compliant
SR144K1TLKWN
