SR144K1TLZ1W02 Dental Bearings

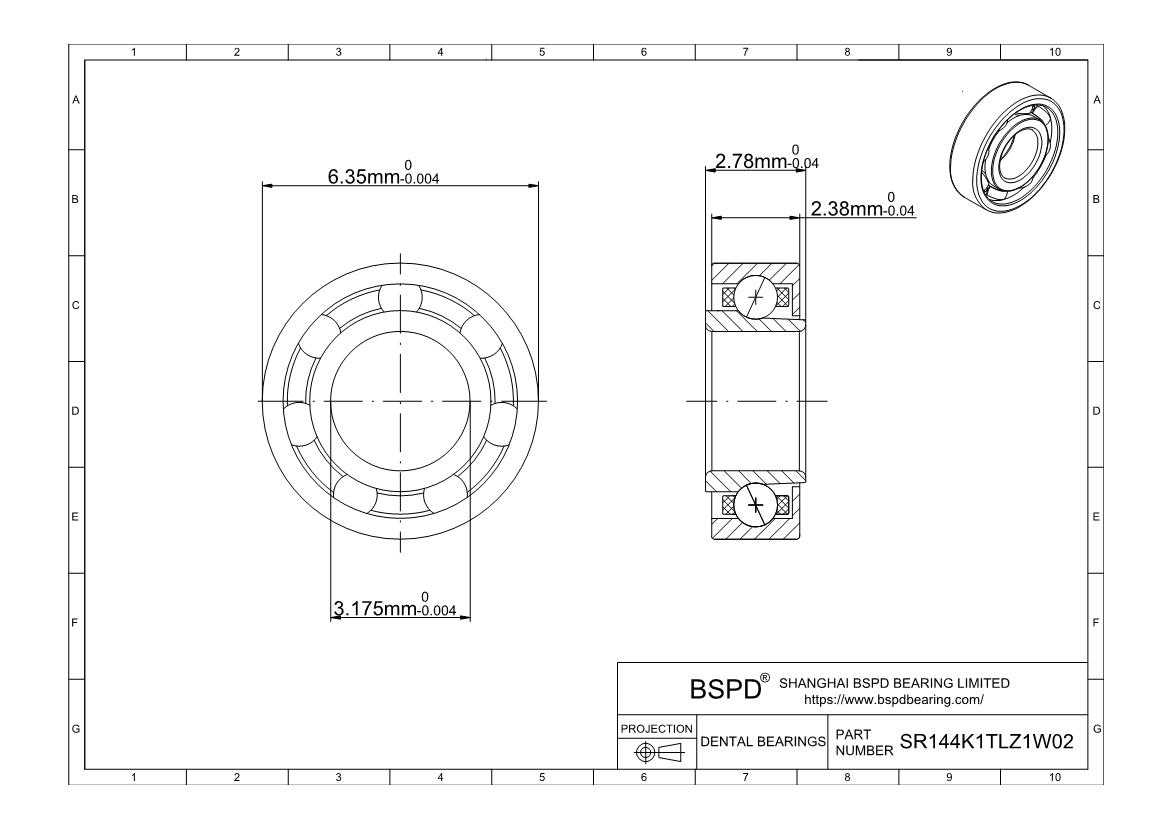

Dimensions: Bore (Inner) Diameter: 3.175 mm; Outer Diameter: 6.35 mm; Width (Thickness): 2.38 mm/2.78 mm;

SR144K1TLZ1W02
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
Seal Type Single integral shield
Precision Rating P4 (ABEC-7)
Structure Smooth
Ball Bearing Type Angular contact
Contact Angle 18 º
Part Number SR144K1TLZ1W02
Other MFG Code
Bore Dia (d) 3.175mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 6.35mm
Outer Dia Tolerance -0.004mm to 0
Width (B) 2.38mm/2.78mm
Inner Ring Width 2.78mm
Outer Ring Width 2.38mm
Width Tolerance -0.04mm to 0
Ring Material AISI440C Stainless Steel
Ball Material AISI440C stainless steel balls
Cage Material Torlon
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (RPM) 500,000
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass (grams) 0.4
RoHS Compliant
SR144K1TLZ1W02
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
