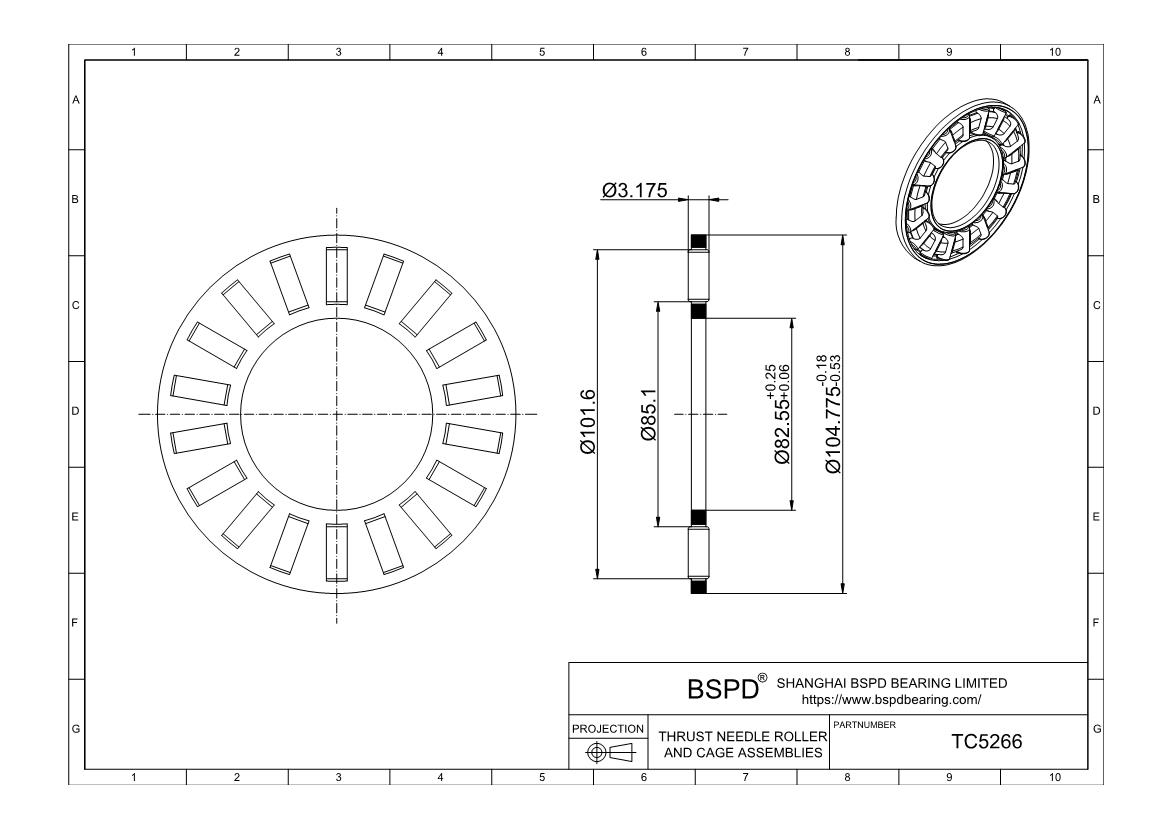

TC5266
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 3 1/4"； Outer Diameter: 4.125"； Width (Thickness): 0.126";
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Bearing Type | Needle |
| Seal Type | Open |
| For Load Direction | Thrust |
| System of Measurement | Inch |
| Part Number | TC5266 |
| ID | 3 1/4" | 82.55 mm |
| ID Tolerance | 0.072mm to 0.292mm |
| OD | 4.125" | 104.775 mm |
| OD Tolerance | -0.530mm to -0.180mm |
| Thickness | 0.126" | 3.2 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Basic dynamic load rating, axial (Ca) (Newtons) | 48500 |
| Basic static load rating, axial (C0a) (Newtons) | 270000 |
| Max Speed (RPM) | 2600 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 to 0.0005" |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TC5266 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
