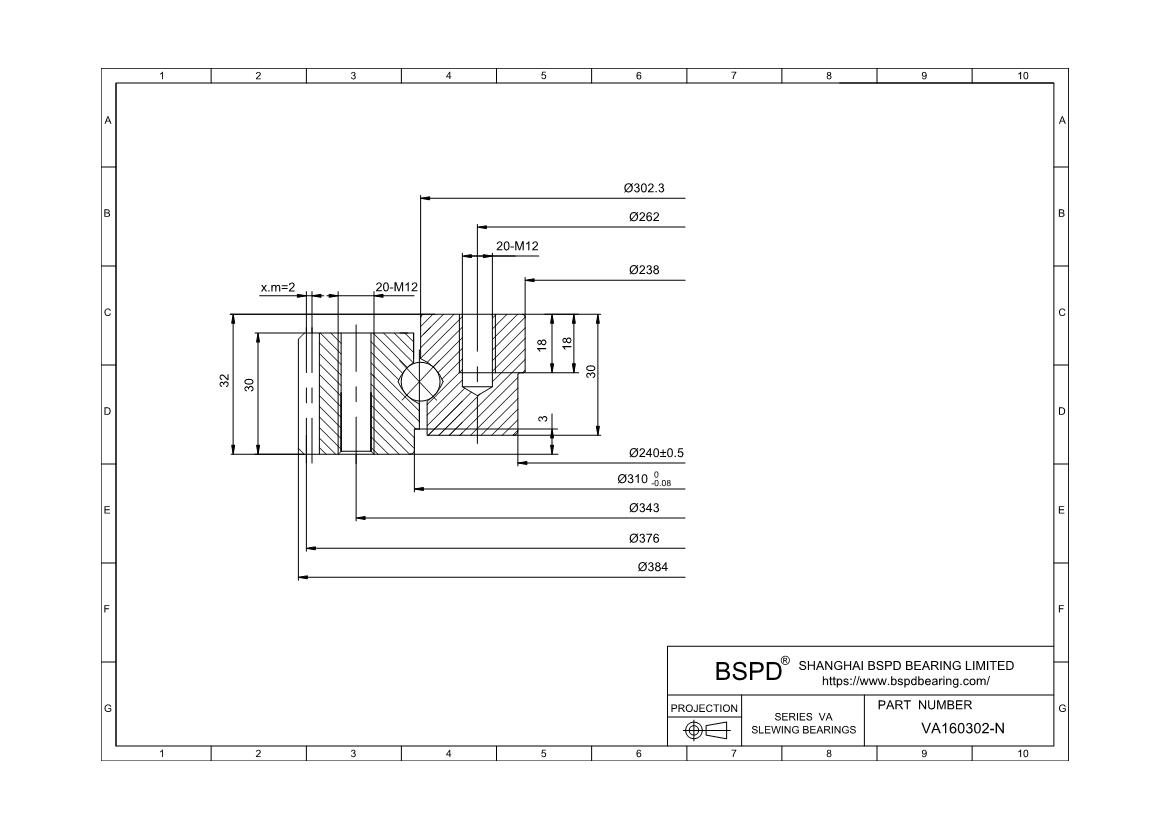

VA160302-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 238 mm； Outer Diameter: 384 mm； Width (Thickness): 32 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VA160302-N |
| di | 238 mm |
| Da | 384 mm |
| b | 30 mm |
| Di | - |
| DiZT | - |
| d0 | 376 mm |
| da | 302,3 mm |
| dB | |
| diZT | - |
| H | 32 mm |
| h | 30 mm |
| La | 343 mm |
| Li | 262 mm |
| Tooth modulus | 4 mm |
| Number of fixing holes in outer ring(na) | 20 |
| Number of fixing holes in inner ring(ni) | 20 |
| T | |
| t | |
| Number of teeth(z) | 94 |
| weight(w) | 14 kg |
| Maximum permissible radial load against friction lock(Frper) | 82600 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 11000 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 16100 N |
| Basic dynamic load rating, axial(Ca) | 137000 N |
| Basic static load rating, axial(C0a) | 590000 N |
| Basic dynamic load rating, radial(Cr) | 125000 N |
| Basic static load rating, radial(C0r) | 270000 N |
| Min. radial bearing clearance | 0,04 |
| Maximum radial bearing clearance | 0,16 |
| Min. axial tilting clearance | 0,07 |
| Maximum axial tilting clearance | 0,26 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference | Without Relubrication facility |
| Lip seals on both spides | No |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VA160302-N ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
