VU140325
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 270 mm； Outer Diameter: 380 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VU140325 |
| di | 270 mm |
| Da | 380 mm |

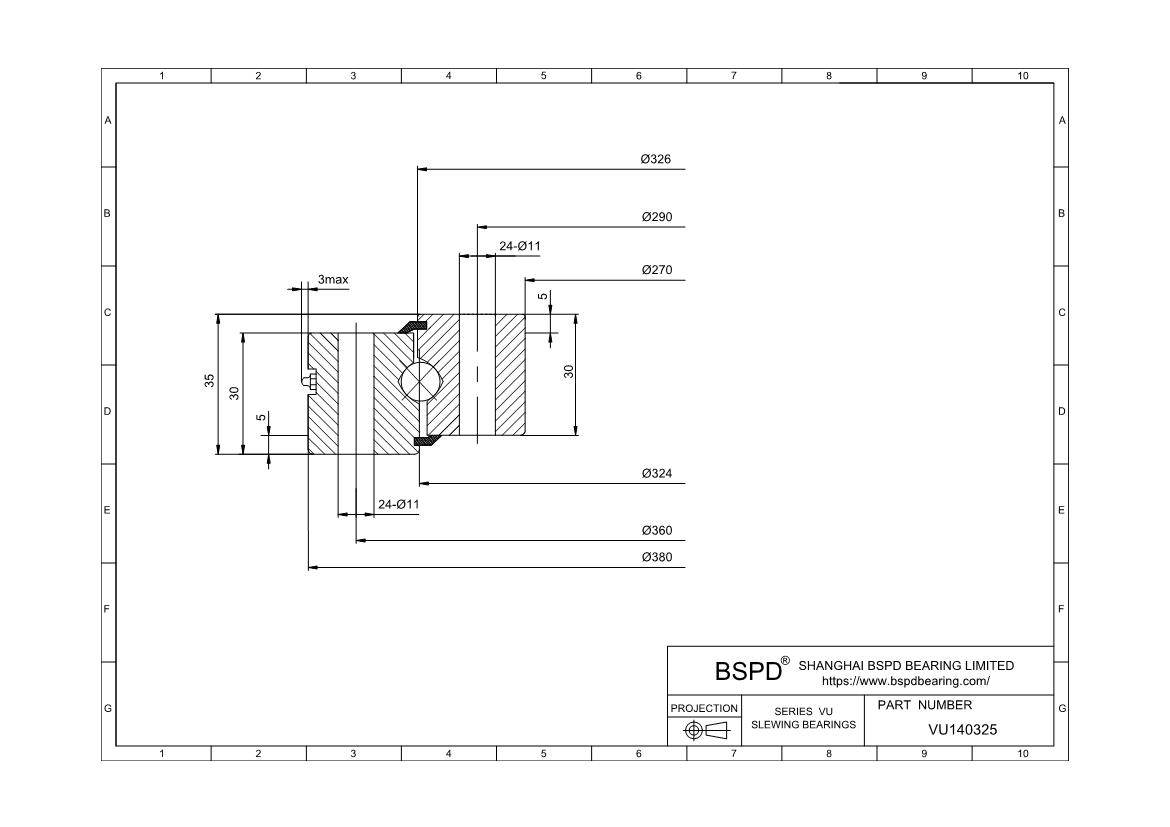

| DaZT | 378 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8 |
| Di | 324 mm |
| da | 326 mm |
| dB | 11 mm |
| diZT | 272 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 35 mm |
| h | 30 mm |
| La | 360 mm |
| Li | 290 mm |
| na | 24 |
| ni | 24 |
| T | 5 mm |
| t | 5 mm |
| umax | 3 mm |
| weight(w) | 12 kg |
| Maximum permissible radial load against friction lock(Frper) | 67200 N |
| Basic dynamic load rating, axial(Ca) | 117000 N |
| Basic static load rating, axial(C0a) | 680000 N |
| Basic dynamic load rating, radial(Cr) | 106000 N |
| Basic static load rating, radial(C0r) | 315000 N |
| Min. radial bearing clearance | 0,04 |
| Maximum radial bearing clearance | 0,14 |
| Min. axial tilting clearance | 0,07 |
| Maximum axial tilting clearance | 0,23 |
| Taper type lubrication nipples, DIN 71412, spaced uniformly on circumference and partially recessed | 2 |
| Lip seals on both spides | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VU140325 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
