System of measurement
BEARING TYPE
Bore Dia
Outside Dia
Seal Type
Ring Material
Ball Material
Cage Material
REQUEST FOR QUOTE

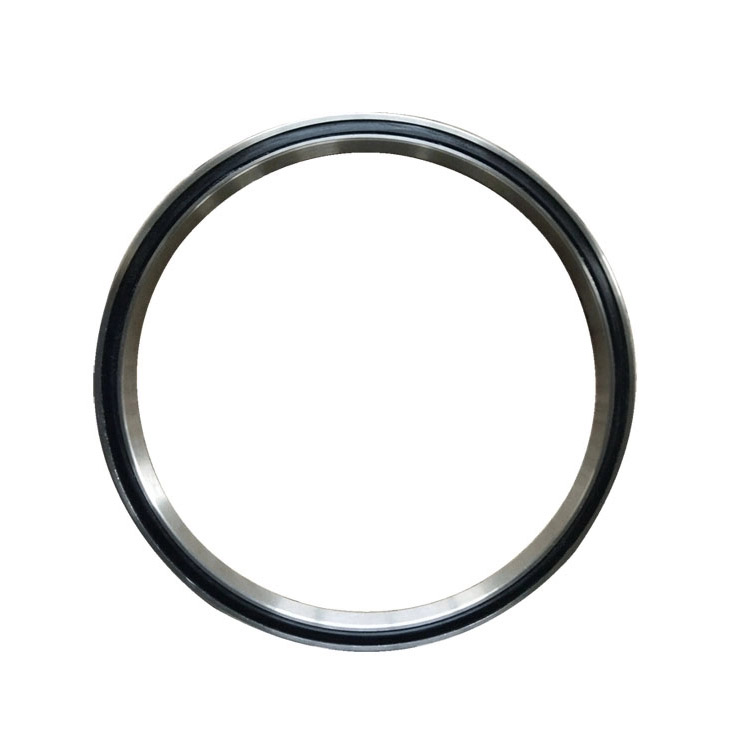

Endura-kote Plated Bearings
| Product Number | System of measurement | BEARING TYPE | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|---|
| NAA10AG0 | Inch | Angular | 1.000" | 1.3752" | 0.025 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA10CL0 | Inch | Radial | 1.000" | 1.3752" | 0.026 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA10XL0 | Inch | Four Point | 1.000" | 1.3752" | 0.026 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA15AG0 | Inch | Angular | 1.500" | 1.8752" | 0.038 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA15CL0 | Inch | Radial | 1.500" | 1.8752" | 0.039 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA15XL0 | Inch | Four Point | 1.500" | 1.8752" | 0.039 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA17AG0 | Inch | Angular | 1.750" | 2.1252" | 0.045 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA17CL0 | Inch | Radial | 1.750" | 2.1252" | 0.045 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NAA17XL0 | Inch | Four Point | 1.750" | 2.1252" | 0.045 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| NA020AR0 | Inch | Angular | 2.0000" | 2.5002" | 0.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA020CP0 | Inch | Radial | 2.0000" | 2.5002" | 0.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA020XP0 | Inch | Four Point | 2.0000" | 2.5002" | 0.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB020AR0 | Inch | Angular | 2.0000" | 2.6252" | 0.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB020CP0 | Inch | Radial | 2.0000" | 2.6252" | 0.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB020XP0 | Inch | Four Point | 2.0000" | 2.6252" | 0.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA025AR0 | Inch | Angular | 2.5000" | 3.0002" | 0.12 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA025CP0 | Inch | Radial | 2.5000" | 3.0002" | 0.13 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA025XP0 | Inch | Four Point | 2.5000" | 3.0002" | 0.13 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB025AR0 | Inch | Angular | 2.5000" | 3.1252" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB025CP0 | Inch | Radial | 2.5000" | 3.1252" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB025XP0 | Inch | Four Point | 2.5000" | 3.1252" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA030AR0 | Inch | Angular | 3.0000" | 3.5002" | 0.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA030CP0 | Inch | Radial | 3.0000" | 3.5002" | 0.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA030XP0 | Inch | Four Point | 3.0000" | 3.5002" | 0.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB030AR0 | Inch | Angular | 3.0000" | 3.6252" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB030CP0 | Inch | Radial | 3.0000" | 3.6252" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB030XP0 | Inch | Four Point | 3.0000" | 3.6252" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA035AR0 | Inch | Angular | 3.5000" | 4.0002" | 0.17 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA035CP0 | Inch | Radial | 3.5000" | 4.0002" | 0.18 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA035XP0 | Inch | Four Point | 3.5000" | 4.0002" | 0.18 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB035AR0 | Inch | Angular | 3.5000" | 4.1252" | 0.27 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB035CP0 | Inch | Radial | 3.5000" | 4.1252" | 0.27 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB035XP0 | Inch | Four Point | 3.5000" | 4.1252" | 0.27 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA040AR0 | Inch | Angular | 3.9998" | 4.5003" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA040CP0 | Inch | Radial | 3.9998" | 4.5003" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA040XP0 | Inch | Four Point | 3.9998" | 4.5003" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB040AR0 | Inch | Angular | 3.9998" | 4.6253" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB040CP0 | Inch | Radial | 3.9998" | 4.6253" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB040XP0 | Inch | Four Point | 3.9998" | 4.6253" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC040AR0 | Inch | Angular | 3.9998" | 4.7503" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC040CP0 | Inch | Radial | 3.9998" | 4.7503" | 0.45 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC040XP0 | Inch | Four Point | 3.9998" | 4.7503" | 0.45 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND040AR0 | Inch | Angular | 3.9998" | 5.0003" | 0.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND040CP0 | Inch | Radial | 3.9998" | 5.0003" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND040XP0 | Inch | Four Point | 3.9998" | 5.0003" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF040AR0 | Inch | Angular | 3.9998" | 5.5003" | 1.92 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF040CP0 | Inch | Radial | 3.9998" | 5.5003" | 1.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF040XP0 | Inch | Four Point | 3.9998" | 5.5003" | 1.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG040AR0 | Inch | Angular | 3.9998" | 6.0003" | 3.61 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG040CP0 | Inch | Radial | 3.9998" | 6.0003" | 3.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG040XP0 | Inch | Four Point | 3.9998" | 6.0003" | 3.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA042AR0 | Inch | Angular | 4.2498" | 4.7503" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA042CP0 | Inch | Radial | 4.2498" | 4.7503" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA042XP0 | Inch | Four Point | 4.2498" | 4.7503" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB042AR0 | Inch | Angular | 4.2498" | 4.8753" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB042CP0 | Inch | Radial | 4.2498" | 4.8753" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB042XP0 | Inch | Four Point | 4.2498" | 4.8753" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC042AR0 | Inch | Angular | 4.2498" | 5.0003" | 0.46 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC042CP0 | Inch | Radial | 4.2498" | 5.0003" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC042XP0 | Inch | Four Point | 4.2498" | 5.0003" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND042AR0 | Inch | Angular | 4.2498" | 5.2503" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND042CP0 | Inch | Radial | 4.2498" | 5.2503" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND042XP0 | Inch | Four Point | 4.2498" | 5.2503" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF042AR0 | Inch | Angular | 4.2498" | 5.7503" | 2.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF042CP0 | Inch | Radial | 4.2498" | 5.7503" | 2.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF042XP0 | Inch | Four Point | 4.2498" | 5.7503" | 2.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG042AR0 | Inch | Angular | 4.2498" | 6.2503" | 3.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG042CP0 | Inch | Radial | 4.2498" | 6.2503" | 3.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG042XP0 | Inch | Four Point | 4.2498" | 6.2503" | 3.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA045AR0 | Inch | Angular | 4.4998" | 5.0003" | 0.21 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA045CP0 | Inch | Radial | 4.4998" | 5.0003" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA045XP0 | Inch | Four Point | 4.4998" | 5.0003" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB045AR0 | Inch | Angular | 4.4998" | 5.1253" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB045CP0 | Inch | Radial | 4.4998" | 5.1253" | 0.33 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB045XP0 | Inch | Four Point | 4.4998" | 5.1253" | 0.33 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC045AR0 | Inch | Angular | 4.4998" | 5.2503" | 0.49 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC045CP0 | Inch | Radial | 4.4998" | 5.2503" | 0.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC045XP0 | Inch | Four Point | 4.4998" | 5.2503" | 0.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND045AR0 | Inch | Angular | 4.4998" | 5.5003" | 0.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND045CP0 | Inch | Radial | 4.4998" | 5.5003" | 0.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND045XP0 | Inch | Four Point | 4.4998" | 5.5003" | 0.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF045AR0 | Inch | Angular | 4.4998" | 6.0003" | 2.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF045CP0 | Inch | Radial | 4.4998" | 6.0003" | 2.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF045XP0 | Inch | Four Point | 4.4998" | 6.0003" | 2.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG045AR0 | Inch | Angular | 4.4998" | 6.5003" | 3.95 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG045CP0 | Inch | Radial | 4.4998" | 6.5003" | 4.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG045XP0 | Inch | Four Point | 4.4998" | 6.5003" | 4.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA047AR0 | Inch | Angular | 4.7498" | 5.2503" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA047CP0 | Inch | Radial | 4.7498" | 5.2503" | 0.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA047XP0 | Inch | Four Point | 4.7498" | 5.2503" | 0.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB047AR0 | Inch | Angular | 4.7498" | 5.3753" | 0.35 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB047CP0 | Inch | Radial | 4.7498" | 5.3753" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB047XP0 | Inch | Four Point | 4.7498" | 5.3753" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC047AR0 | Inch | Angular | 4.7498" | 5.5003" | 0.51 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC047CP0 | Inch | Radial | 4.7498" | 5.5003" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC047XP0 | Inch | Four Point | 4.7498" | 5.5003" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND047AR0 | Inch | Angular | 4.7498" | 5.7503" | 0.93 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND047CP0 | Inch | Radial | 4.7498" | 5.7503" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND047XP0 | Inch | Four Point | 4.7498" | 5.7503" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF047AR0 | Inch | Angular | 4.7498" | 6.2503" | 2.26 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF047CP0 | Inch | Radial | 4.7498" | 6.2503" | 2.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF047XP0 | Inch | Four Point | 4.7498" | 6.2503" | 2.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG047AR0 | Inch | Angular | 4.7498" | 6.7503" | 4.17 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG047CP0 | Inch | Radial | 4.7498" | 6.7503" | 4.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG047XP0 | Inch | Four Point | 4.7498" | 6.7503" | 4.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA050AR0 | Inch | Angular | 4.9998" | 5.5003" | 0.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA050CP0 | Inch | Radial | 4.9998" | 5.5003" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA050XP0 | Inch | Four Point | 4.9998" | 5.5003" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB050AR0 | Inch | Angular | 4.9998" | 5.6253" | 0.37 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB050CP0 | Inch | Radial | 4.9998" | 5.6253" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB050XP0 | Inch | Four Point | 4.9998" | 5.6253" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC050AR0 | Inch | Angular | 4.9998" | 5.7503" | 0.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC050CP0 | Inch | Radial | 4.9998" | 5.7503" | 0.58 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC050XP0 | Inch | Four Point | 4.9998" | 5.7503" | 0.58 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND050AR0 | Inch | Angular | 4.9998" | 6.0003" | 0.98 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND050CP0 | Inch | Radial | 4.9998" | 6.0003" | 1.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND050XP0 | Inch | Four Point | 4.9998" | 6.0003" | 1.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF050AR0 | Inch | Angular | 4.9998" | 6.5003" | 2.37 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF050CP0 | Inch | Radial | 4.9998" | 6.5003" | 2.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF050XP0 | Inch | Four Point | 4.9998" | 6.5003" | 2.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG050AR0 | Inch | Angular | 4.9998" | 7.0003" | 4.42 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG050CP0 | Inch | Radial | 4.9998" | 7.0003" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG050XP0 | Inch | Four Point | 4.9998" | 7.0003" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA055AR0 | Inch | Angular | 5.4998" | 6.0003" | 0.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA055CP0 | Inch | Radial | 5.4998" | 6.0003" | 0.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA055XP0 | Inch | Four Point | 5.4998" | 6.0003" | 0.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB055AR0 | Inch | Angular | 5.4998" | 6.1253" | 0.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB055CP0 | Inch | Radial | 5.4998" | 6.1253" | 0.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB055XP0 | Inch | Four Point | 5.4998" | 6.1253" | 0.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC055AR0 | Inch | Angular | 5.4998" | 6.2503" | 0.58 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC055CP0 | Inch | Radial | 5.4998" | 6.2503" | 0.59 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC055XP0 | Inch | Four Point | 5.4998" | 6.2503" | 0.59 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND055AR0 | Inch | Angular | 5.4998" | 6.5003" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND055CP0 | Inch | Radial | 5.4998" | 6.5003" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND055XP0 | Inch | Four Point | 5.4998" | 6.5003" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF055AR0 | Inch | Angular | 5.4998" | 7.0003" | 2.59 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF055CP0 | Inch | Radial | 5.4998" | 7.0003" | 2.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF055XP0 | Inch | Four Point | 5.4998" | 7.0003" | 2.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG055AR0 | Inch | Angular | 5.4998" | 7.5003" | 4.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG055CP0 | Inch | Radial | 5.4998" | 7.5003" | 4.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG055XP0 | Inch | Four Point | 5.4998" | 7.5003" | 4.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA060AR0 | Inch | Angular | 5.9998" | 6.5003" | 0.28 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA060CP0 | Inch | Radial | 5.9998" | 6.5003" | 0.28 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA060XP0 | Inch | Four Point | 5.9998" | 6.5003" | 0.28 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB060AR0 | Inch | Angular | 5.9998" | 6.6253" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB060CP0 | Inch | Radial | 5.9998" | 6.6253" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB060XP0 | Inch | Four Point | 5.9998" | 6.6253" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC060AR0 | Inch | Angular | 5.9998" | 6.7503" | 0.64 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC060CP0 | Inch | Radial | 5.9998" | 6.7503" | 0.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC060XP0 | Inch | Four Point | 5.9998" | 6.7503" | 0.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND060AR0 | Inch | Angular | 5.9998" | 7.0003" | 1.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND060CP0 | Inch | Radial | 5.9998" | 7.0003" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND060XP0 | Inch | Four Point | 5.9998" | 7.0003" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF060AR0 | Inch | Angular | 5.9998" | 7.5003" | 2.72 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF060CP0 | Inch | Radial | 5.9998" | 7.5003" | 2.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF060XP0 | Inch | Four Point | 5.9998" | 7.5003" | 2.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG060AR0 | Inch | Angular | 5.9998" | 8.0003" | 5.07 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG060CP0 | Inch | Radial | 5.9998" | 8.0003" | 5.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG060XP0 | Inch | Four Point | 5.9998" | 8.0003" | 5.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA065AR0 | Inch | Angular | 6.4998" | 7.0003" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA065CP0 | Inch | Radial | 6.4998" | 7.0003" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA065XP0 | Inch | Four Point | 6.4998" | 7.0003" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB065AR0 | Inch | Angular | 6.4998" | 7.1253" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB065CP0 | Inch | Radial | 6.4998" | 7.1253" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB065XP0 | Inch | Four Point | 6.4998" | 7.1253" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC065AR0 | Inch | Angular | 6.4998" | 7.2503" | 0.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC065CP0 | Inch | Radial | 6.4998" | 7.2503" | 0.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC065XP0 | Inch | Four Point | 6.4998" | 7.2503" | 0.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND065AR0 | Inch | Angular | 6.4998" | 7.5003" | 1.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND065CP0 | Inch | Radial | 6.4998" | 7.5003" | 1.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND065XP0 | Inch | Four Point | 6.4998" | 7.5003" | 1.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF065AR0 | Inch | Angular | 6.4998" | 8.0003" | 2.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF065CP0 | Inch | Radial | 6.4998" | 8.0003" | 2.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF065XP0 | Inch | Four Point | 6.4998" | 8.0003" | 2.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG065AR0 | Inch | Angular | 6.4998" | 8.5003" | 5.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG065CP0 | Inch | Radial | 6.4998" | 8.5003" | 5.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG065XP0 | Inch | Four Point | 6.4998" | 8.5003" | 5.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA070AR0 | Inch | Angular | 6.9998" | 7.5003" | 0.32 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA070CP0 | Inch | Radial | 6.9998" | 7.5003" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA070XP0 | Inch | Four Point | 6.9998" | 7.5003" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB070AR0 | Inch | Angular | 6.9998" | 7.6253" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB070CP0 | Inch | Radial | 6.9998" | 7.6253" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB070XP0 | Inch | Four Point | 6.9998" | 7.6253" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC070AR0 | Inch | Angular | 6.9998" | 7.7503" | 0.74 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC070CP0 | Inch | Radial | 6.9998" | 7.7503" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC070XP0 | Inch | Four Point | 6.9998" | 7.7503" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND070AR0 | Inch | Angular | 6.9998" | 8.0003" | 1.33 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND070CP0 | Inch | Radial | 6.9998" | 8.0003" | 1.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND070XP0 | Inch | Four Point | 6.9998" | 8.0003" | 1.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF070AR0 | Inch | Angular | 6.9998" | 8.5003" | 3.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF070CP0 | Inch | Radial | 6.9998" | 8.5003" | 3.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF070XP0 | Inch | Four Point | 6.9998" | 8.5003" | 3.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG070AR0 | Inch | Angular | 6.9998" | 9.0003" | 5.87 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG070CP0 | Inch | Radial | 6.9998" | 9.0003" | 5.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG070XP0 | Inch | Four Point | 6.9998" | 9.0003" | 5.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA075AR0 | Inch | Angular | 7.4998" | 8.0003" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA075CP0 | Inch | Radial | 7.4998" | 8.0003" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA075XP0 | Inch | Four Point | 7.4998" | 8.0003" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB075AR0 | Inch | Angular | 7.4998" | 8.1253" | 0.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB075CP0 | Inch | Radial | 7.4998" | 8.1253" | 0.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB075XP0 | Inch | Four Point | 7.4998" | 8.1253" | 0.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC075AR0 | Inch | Angular | 7.4998" | 8.2503" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC075CP0 | Inch | Radial | 7.4998" | 8.2503" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC075XP0 | Inch | Four Point | 7.4998" | 8.2503" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND075AR0 | Inch | Angular | 7.4998" | 8.5003" | 1.42 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND075CP0 | Inch | Radial | 7.4998" | 8.5003" | 1.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND075XP0 | Inch | Four Point | 7.4998" | 8.5003" | 1.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF075AR0 | Inch | Angular | 7.4998" | 9.0003" | 3.39 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF075CP0 | Inch | Radial | 7.4998" | 9.0003" | 3.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF075XP0 | Inch | Four Point | 7.4998" | 9.0003" | 3.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG075AR0 | Inch | Angular | 7.4998" | 9.5003" | 6.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG075CP0 | Inch | Radial | 7.4998" | 9.5003" | 6.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG075XP0 | Inch | Four Point | 7.4998" | 9.5003" | 6.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA080AR0 | Inch | Angular | 7.9998" | 8.5003" | 0.36 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA080CP0 | Inch | Radial | 7.9998" | 8.5003" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA080XP0 | Inch | Four Point | 7.9998" | 8.5003" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB080AR0 | Inch | Angular | 7.9998" | 8.6253" | 0.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB080CP0 | Inch | Radial | 7.9998" | 8.6253" | 0.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB080XP0 | Inch | Four Point | 7.9998" | 8.6253" | 0.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC080AR0 | Inch | Angular | 7.9998" | 8.7503" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC080CP0 | Inch | Radial | 7.9998" | 8.7503" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC080XP0 | Inch | Four Point | 7.9998" | 8.7503" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND080AR0 | Inch | Angular | 7.9998" | 9.0003" | 1.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND080CP0 | Inch | Radial | 7.9998" | 9.0003" | 1.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND080XP0 | Inch | Four Point | 7.9998" | 9.0003" | 1.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF080AR0 | Inch | Angular | 7.9998" | 9.5003" | 3.61 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF080CP0 | Inch | Radial | 7.9998" | 9.5003" | 3.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF080XP0 | Inch | Four Point | 7.9998" | 9.5003" | 3.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG080AR0 | Inch | Angular | 7.9998" | 10.0003" | 6.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG080CP0 | Inch | Radial | 7.9998" | 10.0003" | 6.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG080XP0 | Inch | Four Point | 7.9998" | 10.0003" | 6.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA090AR0 | Inch | Angular | 8.9998" | 9.5003" | 0.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA090CP0 | Inch | Radial | 8.9998" | 9.5003" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA090XP0 | Inch | Four Point | 8.9998" | 9.5003" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB090AR0 | Inch | Angular | 8.9998" | 9.6253" | 0.64 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB090CP0 | Inch | Radial | 8.9998" | 9.6253" | 0.66 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB090XP0 | Inch | Four Point | 8.9998" | 9.6253" | 0.66 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC090AR0 | Inch | Angular | 8.9998" | 9.7503" | 0.98 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC090CP0 | Inch | Radial | 8.9998" | 9.7503" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC090XP0 | Inch | Four Point | 8.9998" | 9.7503" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND090AR0 | Inch | Angular | 8.9998" | 10.0003" | 1.69 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND090CP0 | Inch | Radial | 8.9998" | 10.0003" | 1.72 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND090XP0 | Inch | Four Point | 8.9998" | 10.0003" | 1.72 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF090AR0 | Inch | Angular | 8.9998" | 10.5003" | 3.95 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF090CP0 | Inch | Radial | 8.9998" | 10.5003" | 3.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF090XP0 | Inch | Four Point | 8.9998" | 10.5003" | 3.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG090AR0 | Inch | Angular | 8.9998" | 11.0003" | 7.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG090CP0 | Inch | Radial | 8.9998" | 11.0003" | 7.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG090XP0 | Inch | Four Point | 8.9998" | 11.0003" | 7.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA100AR0 | Inch | Angular | 9.9998" | 10.5003" | 0.45 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA100CP0 | Inch | Radial | 9.9998" | 10.5003" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA100XP0 | Inch | Four Point | 9.9998" | 10.5003" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB100AR0 | Inch | Angular | 9.9998" | 10.6253" | 0.71 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB100CP0 | Inch | Radial | 9.9998" | 10.6253" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB100XP0 | Inch | Four Point | 9.9998" | 10.6253" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC100AR0 | Inch | Angular | 9.9998" | 10.7503" | 1.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC100CP0 | Inch | Radial | 9.9998" | 10.7503" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC100XP0 | Inch | Four Point | 9.9998" | 10.7503" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND100AR0 | Inch | Angular | 9.9998" | 11.0003" | 1.87 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND100CP0 | Inch | Radial | 9.9998" | 11.0003" | 1.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND100XP0 | Inch | Four Point | 9.9998" | 11.0003" | 1.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF100AR0 | Inch | Angular | 9.9998" | 11.5003" | 4.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF100CP0 | Inch | Radial | 9.9998" | 11.5003" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF100XP0 | Inch | Four Point | 9.9998" | 11.5003" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG100AR0 | Inch | Angular | 9.9998" | 12.0003" | 8.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG100CP0 | Inch | Radial | 9.9998" | 12.0003" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG100XP0 | Inch | Four Point | 9.9998" | 12.0003" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA110AR0 | Inch | Angular | 10.9998" | 11.5003" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA110CP0 | Inch | Radial | 10.9998" | 11.5003" | 0.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA110XP0 | Inch | Four Point | 10.9998" | 11.5003" | 0.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB110AR0 | Inch | Angular | 10.9998" | 11.6253" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB110CP0 | Inch | Radial | 10.9998" | 11.6253" | 0.75 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB110XP0 | Inch | Four Point | 10.9998" | 11.6253" | 0.75 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC110AR0 | Inch | Angular | 10.9998" | 11.7503" | 1.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC110CP0 | Inch | Radial | 10.9998" | 11.7503" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC110XP0 | Inch | Four Point | 10.9998" | 11.7503" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND110AR0 | Inch | Angular | 10.9998" | 12.0003" | 2.05 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND110CP0 | Inch | Radial | 10.9998" | 12.0003" | 2.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND110XP0 | Inch | Four Point | 10.9998" | 12.0003" | 2.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF110AR0 | Inch | Angular | 10.9998" | 12.5003" | 4.75 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF110CP0 | Inch | Radial | 10.9998" | 12.5003" | 4.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF110XP0 | Inch | Four Point | 10.9998" | 12.5003" | 4.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG110AR0 | Inch | Angular | 10.9998" | 13.0003" | 8.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG110CP0 | Inch | Radial | 10.9998" | 13.0003" | 8.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG110XP0 | Inch | Four Point | 10.9998" | 13.0003" | 8.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA120AR0 | Inch | Angular | 11.9998" | 12.5003" | 0.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA120CP0 | Inch | Radial | 11.9998" | 12.5003" | 0.56 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NA120XP0 | Inch | Four Point | 11.9998" | 12.5003" | 0.56 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB120AR0 | Inch | Angular | 11.9998" | 12.6253" | 0.85 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB120CP0 | Inch | Radial | 11.9998" | 12.6253" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB120XP0 | Inch | Four Point | 11.9998" | 12.6253" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC120AR0 | Inch | Angular | 11.9998" | 12.7503" | 1.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC120CP0 | Inch | Radial | 11.9998" | 12.7503" | 1.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC120XP0 | Inch | Four Point | 11.9998" | 12.7503" | 1.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND120AR0 | Inch | Angular | 11.9998" | 13.0003" | 2.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND120CP0 | Inch | Radial | 11.9998" | 13.0003" | 2.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND120XP0 | Inch | Four Point | 11.9998" | 13.0003" | 2.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF120AR0 | Inch | Angular | 11.9998" | 13.5003" | 5.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF120CP0 | Inch | Radial | 11.9998" | 13.5003" | 5.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF120XP0 | Inch | Four Point | 11.9998" | 13.5003" | 5.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG120AR0 | Inch | Angular | 11.9998" | 14.0003" | 9.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG120CP0 | Inch | Radial | 11.9998" | 14.0003" | 9.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG120XP0 | Inch | Four Point | 11.9998" | 14.0003" | 9.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB140AR0 | Inch | Angular | 13.9998" | 14.6253" | 0.98 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB140CP0 | Inch | Radial | 13.9998" | 14.6253" | 1.05 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB140XP0 | Inch | Four Point | 13.9998" | 14.6253" | 1.05 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC140AR0 | Inch | Angular | 13.9998" | 14.7503" | 1.43 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC140CP0 | Inch | Radial | 13.9998" | 14.7503" | 1.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC140XP0 | Inch | Four Point | 13.9998" | 14.7503" | 1.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND140AR0 | Inch | Angular | 13.9998" | 15.0003" | 2.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND140CP0 | Inch | Radial | 13.9998" | 15.0003" | 2.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND140XP0 | Inch | Four Point | 13.9998" | 15.0003" | 2.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF140AR0 | Inch | Angular | 13.9998" | 15.5003" | 5.76 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF140CP0 | Inch | Radial | 13.9998" | 15.5003" | 6.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF140XP0 | Inch | Four Point | 13.9998" | 15.5003" | 6.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG140AR0 | Inch | Angular | 13.9998" | 16.0003" | 10.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG140CP0 | Inch | Radial | 13.9998" | 16.0003" | 10.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG140XP0 | Inch | Four Point | 13.9998" | 16.0003" | 10.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB160AR0 | Inch | Angular | 15.9998" | 16.6253" | 1.12 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB160CP0 | Inch | Radial | 15.9998" | 16.6253" | 1.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB160XP0 | Inch | Four Point | 15.9998" | 16.6253" | 1.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC160AR0 | Inch | Angular | 15.9998" | 16.7503" | 1.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC160CP0 | Inch | Radial | 15.9998" | 16.7503" | 1.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC160XP0 | Inch | Four Point | 15.9998" | 16.7503" | 1.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND160AR0 | Inch | Angular | 15.9998" | 17.0003" | 2.93 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND160CP0 | Inch | Radial | 15.9998" | 17.0003" | 3.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND160XP0 | Inch | Four Point | 15.9998" | 17.0003" | 3.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF160AR0 | Inch | Angular | 15.9998" | 17.5003" | 6.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF160CP0 | Inch | Radial | 15.9998" | 17.5003" | 7.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF160XP0 | Inch | Four Point | 15.9998" | 17.5003" | 7.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG160AR0 | Inch | Angular | 15.9998" | 18.0003" | 12.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG160CP0 | Inch | Radial | 15.9998" | 18.0003" | 12.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG160XP0 | Inch | Four Point | 15.9998" | 18.0003" | 12.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB180AR0 | Inch | Angular | 17.9998" | 18.6253" | 1.26 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB180CP0 | Inch | Radial | 17.9998" | 18.6253" | 1.35 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB180XP0 | Inch | Four Point | 17.9998" | 18.6253" | 1.35 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC180AR0 | Inch | Angular | 17.9998" | 18.7503" | 1.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC180CP0 | Inch | Radial | 17.9998" | 18.7503" | 1.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC180XP0 | Inch | Four Point | 17.9998" | 18.7503" | 1.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND180AR0 | Inch | Angular | 17.9998" | 19.0003" | 3.29 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND180CP0 | Inch | Radial | 17.9998" | 19.0003" | 3.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND180XP0 | Inch | Four Point | 17.9998" | 19.0003" | 3.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF180AR0 | Inch | Angular | 17.9998" | 19.5003" | 7.67 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF180CP0 | Inch | Radial | 17.9998" | 19.5003" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF180XP0 | Inch | Four Point | 17.9998" | 19.5003" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG180AR0 | Inch | Angular | 17.9998" | 20.0003" | 13.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG180CP0 | Inch | Radial | 17.9998" | 20.0003" | 13.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG180XP0 | Inch | Four Point | 17.9998" | 20.0003" | 13.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB200AR0 | Inch | Angular | 19.9998" | 20.6253" | 1.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB200CP0 | Inch | Radial | 19.9998" | 20.6253" | 1.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NB200XP0 | Inch | Four Point | 19.9998" | 20.6253" | 1.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC200AR0 | Inch | Angular | 19.9998" | 20.7503" | 2.03 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC200CP0 | Inch | Radial | 19.9998" | 20.7503" | 2.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC200XP0 | Inch | Four Point | 19.9998" | 20.7503" | 2.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND200AR0 | Inch | Angular | 19.9998" | 21.0003" | 3.65 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND200CP0 | Inch | Radial | 19.9998" | 21.0003" | 3.85 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND200XP0 | Inch | Four Point | 19.9998" | 21.0003" | 3.85 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF200AR0 | Inch | Angular | 19.9998" | 21.5003" | 8.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF200CP0 | Inch | Radial | 19.9998" | 21.5003" | 8.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF200XP0 | Inch | Four Point | 19.9998" | 21.5003" | 8.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG200AR0 | Inch | Angular | 19.9998" | 22.0003" | 15.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG200CP0 | Inch | Radial | 19.9998" | 22.0003" | 15.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG200XP0 | Inch | Four Point | 19.9998" | 22.0003" | 15.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND210AR0 | Inch | Angular | 20.9998" | 22.0003" | 3.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND210CP0 | Inch | Radial | 20.9998" | 22.0003" | 4.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND210XP0 | Inch | Four Point | 20.9998" | 22.0003" | 4.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG220AR0 | Inch | Angular | 21.9998" | 24.0003" | 16.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG220CP0 | Inch | Radial | 21.9998" | 24.0003" | 16.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG220XP0 | Inch | Four Point | 21.9998" | 24.0003" | 17.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC250AR0 | Inch | Angular | 24.9998" | 25.7503" | 2.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC250CP0 | Inch | Radial | 24.9998" | 25.7503" | 2.69 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC250XP0 | Inch | Four Point | 24.9998" | 25.7503" | 2.69 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND250AR0 | Inch | Angular | 24.9998" | 26.0003" | 4.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND250CP0 | Inch | Radial | 24.9998" | 26.0003" | 4.79 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND250XP0 | Inch | Four Point | 24.9998" | 26.0003" | 4.79 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF250AR0 | Inch | Angular | 24.9998" | 26.5003" | 10.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF250CP0 | Inch | Radial | 24.9998" | 26.5003" | 10.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF250XP0 | Inch | Four Point | 24.9998" | 26.5003" | 10.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG250AR0 | Inch | Angular | 24.9998" | 27.0003" | 18.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG250CP0 | Inch | Radial | 24.9998" | 27.0003" | 19.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG250XP0 | Inch | Four Point | 24.9998" | 27.0003" | 19.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC300AR0 | Inch | Angular | 29.9998" | 30.7503" | 3.02 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC300CP0 | Inch | Radial | 29.9998" | 30.7503" | 3.21 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NC300XP0 | Inch | Four Point | 29.9998" | 30.7503" | 3.21 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND300AR0 | Inch | Angular | 29.9998" | 31.0003" | 5.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND300CP0 | Inch | Radial | 29.9998" | 31.0003" | 5.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| ND300XP0 | Inch | Four Point | 29.9998" | 31.0003" | 5.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF300AR0 | Inch | Angular | 29.9998" | 31.5003" | 12.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF300CP0 | Inch | Radial | 29.9998" | 31.5003" | 13.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF300XP0 | Inch | Four Point | 29.9998" | 31.5003" | 13.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG300AR0 | Inch | Angular | 29.9998" | 32.0003" | 22.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG300CP0 | Inch | Radial | 29.9998" | 32.0003" | 23.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG300XP0 | Inch | Four Point | 29.9998" | 32.0003" | 23.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF350AR0 | Inch | Angular | 34.9998" | 36.5003" | 14.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF350CP0 | Inch | Radial | 34.9998" | 36.5003" | 15.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF350XP0 | Inch | Four Point | 34.9998" | 36.5003" | 15.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG350AR0 | Inch | Angular | 34.9998" | 37.0003" | 26.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG350CP0 | Inch | Radial | 34.9998" | 37.0003" | 27.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG350XP0 | Inch | Four Point | 34.9998" | 37.0003" | 27.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF400AR0 | Inch | Angular | 39.9998" | 41.5003" | 16.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF400CP0 | Inch | Radial | 39.9998" | 41.5003" | 17.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NF400XP0 | Inch | Four Point | 39.9998" | 41.5003" | 17.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG400AR0 | Inch | Angular | 39.9998" | 42.0003" | 29.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG400CP0 | Inch | Radial | 39.9998" | 42.0003" | 30.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| NG400XP0 | Inch | Four Point | 39.9998" | 42.0003" | 30.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
REQUEST FOR QUOTE
