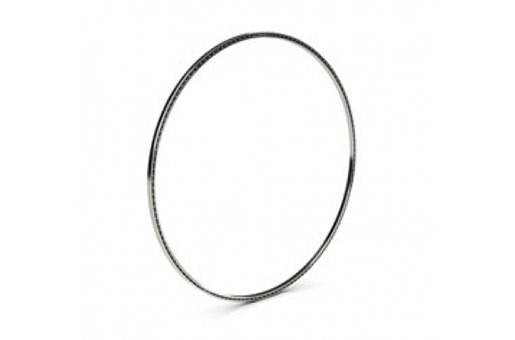

Ultra Slim Extra Thin Section Bearings
The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and light weight of the product. The variety of products expands its scope of use.
| Product Number | System of measurement | BEARING TYPE | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|---|
| S03503AS0 | Metric | Angular | 35 mm | 41 mm | 5.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S03503CS0 | Metric | Radial | 35 mm | 41 mm | 5.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S03503XS0 | Metric | Four Point | 35 mm | 41 mm | 5.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S06003AS0 | Metric | Angular | 60 mm | 66 mm | 9.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S06003CS0 | Metric | Radial | 60 mm | 66 mm | 9.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S06003XS0 | Metric | Four Point | 60 mm | 66 mm | 9.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S07003AS0 | Metric | Angular | 70 mm | 76 mm | 11.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S07003CS0 | Metric | Radial | 70 mm | 76 mm | 11.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S07003XS0 | Metric | Four Point | 70 mm | 76 mm | 11.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S07403AS0 | Metric | Angular | 74 mm | 80 mm | 11.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S07403CS0 | Metric | Radial | 74 mm | 80 mm | 11.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S07403XS0 | Metric | Four Point | 74 mm | 80 mm | 11.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S08003AS0 | Metric | Angular | 80 mm | 86 mm | 12.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S08003CS0 | Metric | Radial | 80 mm | 86 mm | 12.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S08003XS0 | Metric | Four Point | 80 mm | 86 mm | 12.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S09003AS0 | Metric | Angular | 90 mm | 96 mm | 13.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S09003CS0 | Metric | Radial | 90 mm | 96 mm | 13.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S09003XS0 | Metric | Four Point | 90 mm | 96 mm | 13.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S10003AS0 | Metric | Angular | 100 mm | 106 mm | 15.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S10003CS0 | Metric | Radial | 100 mm | 106 mm | 15.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S10003XS0 | Metric | Four Point | 100 mm | 106 mm | 15.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S11003AS0 | Metric | Angular | 110 mm | 116 mm | 16.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S11003CS0 | Metric | Radial | 110 mm | 116 mm | 16.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S11003XS0 | Metric | Four Point | 110 mm | 116 mm | 16.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S12003AS0 | Metric | Angular | 120 mm | 126 mm | 18.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S12003CS0 | Metric | Radial | 120 mm | 126 mm | 18.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S12003XS0 | Metric | Four Point | 120 mm | 126 mm | 18.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S13003AS0 | Metric | Angular | 130 mm | 136 mm | 19.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S13003CS0 | Metric | Radial | 130 mm | 136 mm | 19.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S13003XS0 | Metric | Four Point | 130 mm | 136 mm | 19.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S14003AS0 | Metric | Angular | 140 mm | 146 mm | 21.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S14003CS0 | Metric | Radial | 140 mm | 146 mm | 21.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S14003XS0 | Metric | Four Point | 140 mm | 146 mm | 21.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S15003AS0 | Metric | Angular | 150 mm | 156 mm | 22.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S15003CS0 | Metric | Radial | 150 mm | 156 mm | 22.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S15003XS0 | Metric | Four Point | 150 mm | 156 mm | 22.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S16003AS0 | Metric | Angular | 160 mm | 166 mm | 24.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S16003CS0 | Metric | Radial | 160 mm | 166 mm | 24.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S16003XS0 | Metric | Four Point | 160 mm | 166 mm | 24.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S17003AS0 | Metric | Angular | 170 mm | 176 mm | 25.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S17003CS0 | Metric | Radial | 170 mm | 176 mm | 25.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
| S17003XS0 | Metric | Four Point | 170 mm | 176 mm | 25.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Stainless Steel |
