51400 Series Thrust Ball Bearings

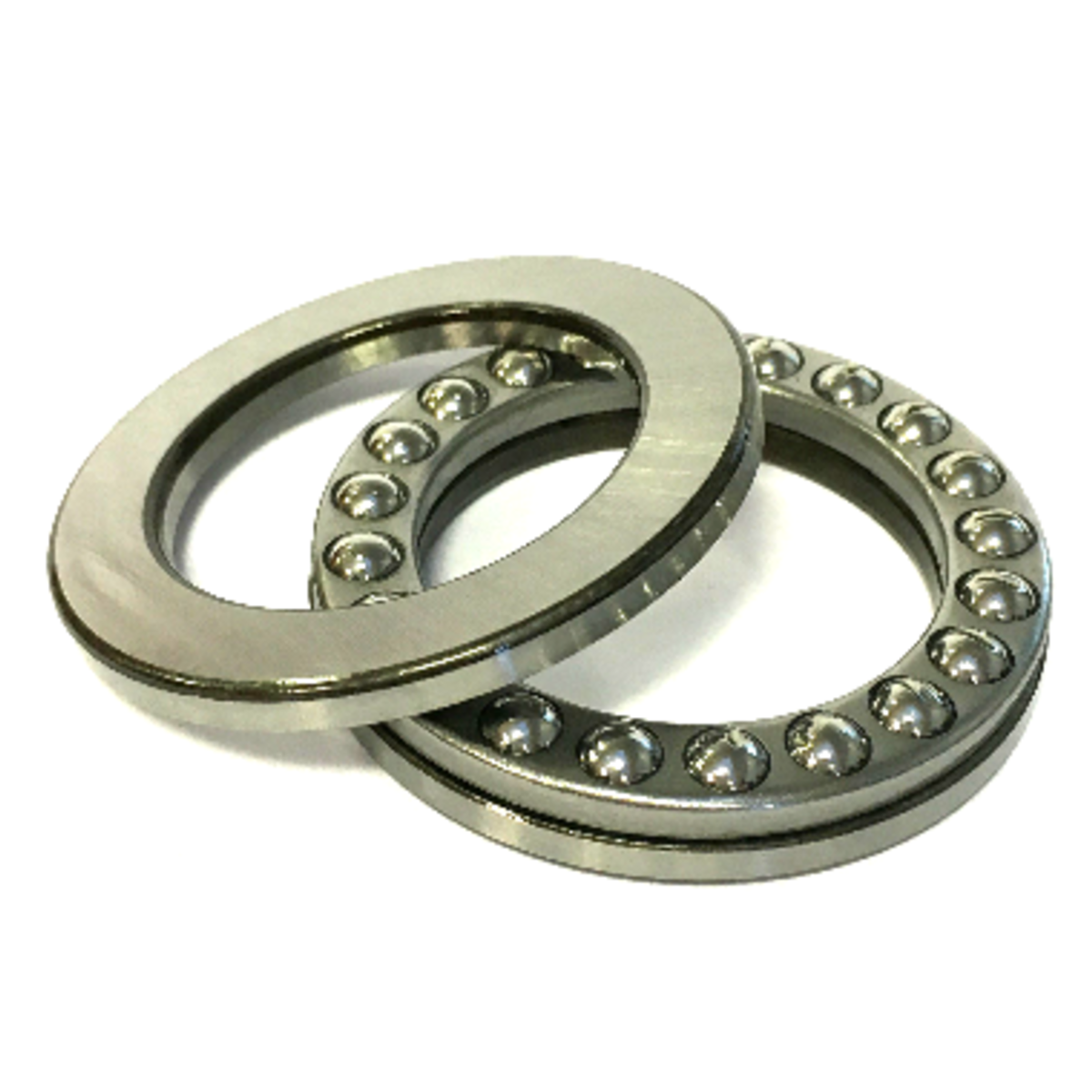

Thrust ball bearing consists of three parts: shaft washer, housing washer and a ball and cage assembly. The shaft ring matched with the shaft is called the shaft washer, and the housing ring matched with the housing. It can bear high axial load and small radial load. BSPD can provide all types of thrust ball bearings with ID of 2~200mm.

Product NumberSystem of measurementBore DiaOutside DiaweightRing MaterialBall MaterialCage Material
51405 BearingsMetric25 mm60 mm32352100 Chrome Steel52100 Chrome SteelSteel
51406mMetric30 mm70 mm582 g52100 Chrome Steel52100 Chrome SteelSteel
51407 BearingsMetric35 mm80 mm771 g52100 Chrome Steel52100 Chrome SteelSteel
51407m BearingsMetric35 mm80 mm864 g52100 Chrome Steel52100 Chrome SteelSteel
51408m BearingsMetric40 mm90 mm1235 g52100 Chrome Steel52100 Chrome SteelSteel
51409m BearingsMetric45 mm100 mm1450 g52100 Chrome Steel52100 Chrome SteelSteel
51409 BearingsMetric45 mm100 mm1321 g52100 Chrome Steel52100 Chrome SteelSteel
51410m BearingsMetric50 mm110 mm2165 g52100 Chrome Steel52100 Chrome SteelSteel
51411m BearingsMetric55 mm120 mm2856 g52100 Chrome Steel52100 Chrome SteelSteel
51412m BearingsMetric60 mm130 mm3554 g52100 Chrome Steel52100 Chrome SteelSteel
51412 BearingsMetric60 mm130 mm3112 g52100 Chrome Steel52100 Chrome SteelSteel
51413m BearingsMetric65 mm140 mm4470 g52100 Chrome Steel52100 Chrome SteelSteel
51413 BearingsMetric65 mm140 mm4078 g52100 Chrome Steel52100 Chrome SteelSteel
51414 BearingsMetric70 mm150 mm5045 g52100 Chrome Steel52100 Chrome SteelSteel
51414m BearingsMetric70 mm150 mm5628 g52100 Chrome Steel52100 Chrome SteelSteel
51415m BearingsMetric75 mm160 mm6397 g52100 Chrome Steel52100 Chrome SteelSteel
51416m BearingsMetric80 mm170 mm7735 g52100 Chrome Steel52100 Chrome SteelSteel
51416 BearingsMetric80 mm170 mm6958 g52100 Chrome Steel52100 Chrome SteelSteel
51417m BearingsMetric85 mm180 mm9493 g52100 Chrome Steel52100 Chrome SteelSteel
51418m BearingsMetric90 mm190 mm11205 g52100 Chrome Steel52100 Chrome SteelSteel
51420m BearingsMetric100 mm210 mm14810 g52100 Chrome Steel52100 Chrome SteelSteel
51422m BearingsMetric110 mm230 mm20370 g52100 Chrome Steel52100 Chrome SteelSteel
51424m BearingsMetric120 mm250 mm25880 g52100 Chrome Steel52100 Chrome SteelSteel
51426m BearingsMetric130 mm270 mm31785 g52100 Chrome Steel52100 Chrome SteelSteel
51428m BearingsMetric140 mm280 mm34020 g52100 Chrome Steel52100 Chrome SteelSteel
51430 BearingsMetric150 mm300 mm39792 g52100 Chrome Steel52100 Chrome SteelSteel
