Crossed Roller TYPE

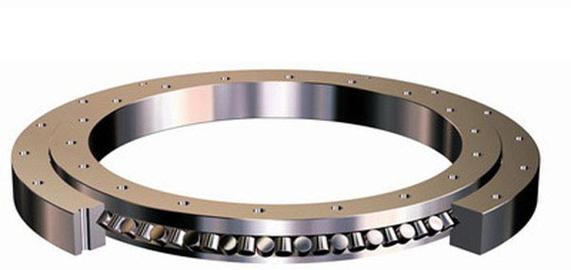

Crossed roller bearing is a special type bearing with separated inner ring and rotating outer ring. Since the divided inner ring or outer ring is installed with the rollers and spacers, it is fixed with the cross roller ring to prevent crossing each other, so it is easy to operate when installing the cross roller ring. Because the rollers are arranged in a cross, only one set of roller rings can cross the load of each direction column of the shaft. Compared with the conventional model, the shaft center is increased by 3 to 4 times. At the same time, because the inner ring or the outer ring of the crossed roller bearing is a two-part structure, the bearing gap can be adjusted, and even if a preset is applied, the ring can generate its rotational movement. Moreover, due to the special structure, pop music is usually used in industrial robots.
| Product Number | System of measurement | BEARING TYPE | Bore Dia | Outside Dia | weight | Seal Type |
|---|---|---|---|---|---|---|
| CRBFV108AT | Metric | roller | 10.0 | 52.0 | 0.12 | Open |
| CRBFV108ATUU | Metric | roller | 10.0 | 52.0 | 0.12 | Sealed |
| CRBTF105AT | Metric | roller | 10.0 | 43.0 | 0.046 | Open |
| CRBT155A | Metric | roller | 15.0 | 26.0 | 0.0119 | Open |
| CRBFV2012AT | Metric | roller | 20.0 | 70.0 | 0.29 | Open |
| CRBFV2012ATUU | Metric | roller | 20.0 | 70.0 | 0.31 | Sealed |
| RE2008 | Metric | roller | 20.0 | 36.0 | 0.04 | Open |
| RE2008UU | Metric | roller | 20.0 | 36.0 | 0.04 | Sealed |
| CRBT205A | Metric | roller | 20.0 | 31.0 | 0.0148 | Open |
| CRBTF205AT | Metric | roller | 20.0 | 53.0 | 0.066 | Open |
| CRBHV208A | Metric | roller | 20.0 | 36.0 | 0.04 | Open |
| CRBHV208AUU | Metric | roller | 20.0 | 36.0 | 0.04 | Sealed |
| CRBFV2512AT | Metric | roller | 25.0 | 80.0 | 0.4 | Open |
| CRBFV2512ATUU | Metric | roller | 25.0 | 80.0 | 0.4 | Sealed |
| RE2508 | Metric | roller | 25.0 | 41.0 | 0.05 | Open |
| RE2508UU | Metric | roller | 25.0 | 41.0 | 0.05 | Sealed |
| CRBHV258A | Metric | roller | 25.0 | 41.0 | 0.05 | Open |
| CRBHV258AUU | Metric | roller | 25.0 | 41.0 | 0.05 | Sealed |
| CRB3010 | Metric | roller | 30.0 | 55.0 | 0.12 | Open |
| CRB3010UU | Metric | roller | 30.0 | 55.0 | 0.12 | Sealed |
| CRBC3010 | Metric | roller | 30.0 | 55.0 | 0.12 | Open |
| CRBC3010UU | Metric | roller | 30.0 | 55.0 | 0.12 | Sealed |
| RE3010 | Metric | roller | 30.0 | 55.0 | 0.12 | Open |
| RE3010UU | Metric | roller | 30.0 | 55.0 | 0.12 | Sealed |
| CRBT305A | Metric | roller | 30.0 | 41.0 | 0.0207 | Open |
| CRBTF305AT | Metric | roller | 30.0 | 63.0 | 0.083 | Open |
| CRBHV3010A | Metric | roller | 30.0 | 55.0 | 0.12 | Open |
| CRBHV3010AUU | Metric | roller | 30.0 | 55.0 | 0.12 | Sealed |
| CRBFV3515AT | Metric | roller | 35.0 | 95.0 | 0.62 | Open |
| CRBFV3515ATUU | Metric | roller | 35.0 | 95.0 | 0.62 | Sealed |
| RE3510 | Metric | roller | 35.0 | 60.0 | 0.13 | Open |
| RE3510UU | Metric | roller | 35.0 | 60.0 | 0.13 | Sealed |
| CRBHV3510A | Metric | roller | 35.0 | 60.0 | 0.13 | Open |
| CRBHV3510AUU | Metric | roller | 35.0 | 60.0 | 0.13 | Sealed |
| CRB4010 | Metric | roller | 40.0 | 65.0 | 0.16 | Open |
| CRB4010UU | Metric | roller | 40.0 | 65.0 | 0.16 | Sealed |
| CRBC4010 | Metric | roller | 40.0 | 65.0 | 0.16 | Open |
| CRBC4010UU | Metric | roller | 40.0 | 65.0 | 0.16 | Sealed |
| RE4010 | Metric | roller | 40.0 | 65.0 | 0.16 | Open |
| RE4010UU | Metric | roller | 40.0 | 65.0 | 0.16 | Sealed |
| CRBT405A | Metric | roller | 40.0 | 51.0 | 0.0265 | Open |
| CRBTF405AT | Metric | roller | 40.0 | 73.0 | 0.103 | Open |
| CRBHV4010A | Metric | roller | 40.0 | 65.0 | 0.15 | Open |
| CRBHV4010AUU | Metric | roller | 40.0 | 65.0 | 0.15 | Sealed |
| RE4510 | Metric | roller | 45.0 | 70.0 | 0.17 | Open |
| RE4510UU | Metric | roller | 45.0 | 70.0 | 0.17 | Sealed |
| CRBHV4510A | Metric | roller | 45.0 | 70.0 | 0.16 | Open |
| CRBHV4510AUU | Metric | roller | 45.0 | 70.0 | 0.16 | Sealed |
| CRB5013 | Metric | roller | 50.0 | 80.0 | 0.27 | Open |
| CRB5013UU | Metric | roller | 50.0 | 80.0 | 0.27 | Sealed |
| CRBC5013 | Metric | roller | 50.0 | 80.0 | 0.27 | Open |
| CRBC5013UU | Metric | roller | 50.0 | 80.0 | 0.27 | Sealed |
| RE5013 | Metric | roller | 50.0 | 80.0 | 0.27 | Open |
| RE5013UU | Metric | roller | 50.0 | 80.0 | 0.27 | Sealed |
| RA5008 | Metric | roller | 50.0 | 66.0 | 0.08 | Open |
| RA5008C | Metric | roller | 50.0 | 66.0 | 0.08 | Open |
| RA5008CUU | Metric | roller | 50.0 | 66.0 | 0.08 | Sealed |
| RA5008UU | Metric | roller | 50.0 | 66.0 | 0.08 | Sealed |
| CRBT505A | Metric | roller | 50.0 | 61.0 | 0.0323 | Open |
| CRBS508 | Metric | roller | 50.0 | 66.0 | 0.084 | Open |
| CRBS508AUU | Metric | roller | 50.0 | 66.0 | 0.084 | Sealed |
| CRBS508V | Metric | roller | 50.0 | 66.0 | 0.084 | Open |
| CRBS508VUU | Metric | roller | 50.0 | 66.0 | 0.084 | Sealed |
| CRBHV5013A | Metric | roller | 50.0 | 80.0 | 0.29 | Open |
| CRBHV5013AUU | Metric | roller | 50.0 | 80.0 | 0.29 | Sealed |
| CRBFV5515AT | Metric | roller | 55.0 | 120.0 | 1.0 | Open |
| CRBFV5515ATUU | Metric | roller | 55.0 | 120.0 | 1.0 | Sealed |
| CRB6013 | Metric | roller | 60.0 | 90.0 | 0.3 | Open |
| CRB6013UU | Metric | roller | 60.0 | 90.0 | 0.3 | Sealed |
| CRBC6013 | Metric | roller | 60.0 | 90.0 | 0.3 | Open |
| CRBC6013UU | Metric | roller | 60.0 | 90.0 | 0.3 | Sealed |
| RE6013 | Metric | roller | 60.0 | 90.0 | 0.3 | Open |
| RE6013UU | Metric | roller | 60.0 | 90.0 | 0.3 | Sealed |
| RA6008 | Metric | roller | 60.0 | 76.0 | 0.09 | Open |
| RA6008C | Metric | roller | 60.0 | 76.0 | 0.09 | Open |
| RA6008CUU | Metric | roller | 60.0 | 76.0 | 0.09 | Sealed |
| RA6008UU | Metric | roller | 60.0 | 76.0 | 0.09 | Sealed |
| CRBS608 | Metric | roller | 60.0 | 76.0 | 0.094 | Open |
| CRBS608AUU | Metric | roller | 60.0 | 76.0 | 0.094 | Sealed |
| CRBS608V | Metric | roller | 60.0 | 76.0 | 0.094 | Open |
| CRBS608VUU | Metric | roller | 60.0 | 76.0 | 0.094 | Sealed |
| CRBHV6013A | Metric | roller | 60.0 | 90.0 | 0.33 | Open |
| CRBHV6013AUU | Metric | roller | 60.0 | 90.0 | 0.33 | Sealed |
| CRB7013 | Metric | roller | 70.0 | 100.0 | 0.35 | Open |
| CRB7013UU | Metric | roller | 70.0 | 100.0 | 0.35 | Sealed |
| CRBC7013 | Metric | roller | 70.0 | 100.0 | 0.35 | Open |
| CRBC7013UU | Metric | roller | 70.0 | 100.0 | 0.35 | Sealed |
| RE7013 | Metric | roller | 70.0 | 100.0 | 0.35 | Open |
| RE7013UU | Metric | roller | 70.0 | 100.0 | 0.35 | Sealed |
| RA7008 | Metric | roller | 70.0 | 86.0 | 0.1 | Open |
| RA7008C | Metric | roller | 70.0 | 86.0 | 0.1 | Open |
| RA7008CUU | Metric | roller | 70.0 | 86.0 | 0.1 | Sealed |
| RA7008UU | Metric | roller | 70.0 | 86.0 | 0.1 | Sealed |
| CRBS708 | Metric | roller | 70.0 | 86.0 | 0.0108 | Open |
| CRBS708AUU | Metric | roller | 70.0 | 86.0 | 0.108 | Sealed |
| CRBS708V | Metric | roller | 70.0 | 86.0 | 0.108 | Open |
| CRBS708VUU | Metric | roller | 70.0 | 86.0 | 0.108 | Sealed |
| CRBHV7013A | Metric | roller | 70.0 | 100.0 | 0.38 | Open |
| CRBHV7013AUU | Metric | roller | 70.0 | 100.0 | 0.38 | Sealed |
| CRBFV8022A | Metric | roller | 80.0 | 165.0 | 2.6 | Open |
| CRBFV8022AD | Metric | roller | 80.0 | 165.0 | 2.6 | Open |
| CRBFV8022ADUU | Metric | roller | 80.0 | 165.0 | 2.6 | Sealed |
| CRBFV8022AT | Metric | roller | 80.0 | 165.0 | 2.6 | Open |
| CRBFV8022ATUU | Metric | roller | 80.0 | 165.0 | 2.6 | Sealed |
| CRBFV8022AUU | Metric | roller | 80.0 | 165.0 | 2.6 | Sealed |
| CRB8016 | Metric | roller | 80.0 | 120.0 | 0.7 | Open |
| CRB8016UU | Metric | roller | 80.0 | 120.0 | 0.7 | Sealed |
| CRBC8016 | Metric | roller | 80.0 | 120.0 | 0.7 | Open |
| CRBC8016UU | Metric | roller | 80.0 | 120.0 | 0.7 | Sealed |
| RE8016 | Metric | roller | 80.0 | 120.0 | 0.7 | Open |
| RE8016UU | Metric | roller | 80.0 | 120.0 | 0.7 | Sealed |
| RA8008 | Metric | roller | 80.0 | 96.0 | 0.11 | Open |
| RA8008C | Metric | roller | 80.0 | 96.0 | 0.11 | Open |
| RA8008CUU | Metric | roller | 80.0 | 96.0 | 0.11 | Sealed |
| RA8008UU | Metric | roller | 80.0 | 96.0 | 0.11 | Sealed |
| CRBS808 | Metric | roller | 80.0 | 96.0 | 0.0122 | Open |
| CRBS808AUU | Metric | roller | 80.0 | 96.0 | 0.122 | Sealed |
| CRBS808V | Metric | roller | 80.0 | 96.0 | 0.122 | Open |
| CRBS808VUU | Metric | roller | 80.0 | 96.0 | 0.122 | Sealed |
| CRBHV8016A | Metric | roller | 80.0 | 120.0 | 0.74 | Open |
| CRBHV8016AUU | Metric | roller | 80.0 | 120.0 | 0.74 | Sealed |
| XV80 | Metric | roller | 80 mm Tolerance: J6 | 135 mm Tolerance: h6 | ||
| CRBFV9025A | Metric | roller | 90.0 | 210.0 | 4.67 | Open |
| CRBFV9025AD | Metric | roller | 90.0 | 210.0 | 4.67 | Open |
| CRBFV9025ADUU | Metric | roller | 90.0 | 210.0 | 4.67 | Sealed |
| CRBFV9025AT | Metric | roller | 90.0 | 210.0 | 4.9 | Open |
| CRBFV9025ATUU | Metric | roller | 90.0 | 210.0 | 4.9 | Sealed |
| CRBFV9025AUU | Metric | roller | 90.0 | 210.0 | 4.67 | Sealed |
| CRB9016 | Metric | roller | 90.0 | 130.0 | 0.75 | Open |
| CRB9016UU | Metric | roller | 90.0 | 130.0 | 0.75 | Sealed |
| CRBC9016 | Metric | roller | 90.0 | 130.0 | 0.75 | Open |
| CRBC9016UU | Metric | roller | 90.0 | 130.0 | 0.75 | Sealed |
| RE9016 | Metric | roller | 90.0 | 130.0 | 0.75 | Open |
| RE9016UU | Metric | roller | 90.0 | 130.0 | 0.75 | Sealed |
| RA9008 | Metric | roller | 90.0 | 106.0 | 0.12 | Open |
| RA9008C | Metric | roller | 90.0 | 106.0 | 0.12 | Open |
| RA9008CUU | Metric | roller | 90.0 | 106.0 | 0.12 | Sealed |
| RA9008UU | Metric | roller | 90.0 | 106.0 | 0.12 | Sealed |
| CRBS908 | Metric | roller | 90.0 | 106.0 | 0.0135 | Open |
| CRBS908AUU | Metric | roller | 90.0 | 106.0 | 0.135 | Sealed |
| CRBS908V | Metric | roller | 90.0 | 106.0 | 0.135 | Open |
| CRBS908VUU | Metric | roller | 90.0 | 106.0 | 0.135 | Sealed |
| CRBHV9016A | Metric | roller | 90.0 | 130.0 | 0.81 | Open |
| CRBHV9016AUU | Metric | roller | 90.0 | 130.0 | 0.81 | Sealed |
| XV90 | Metric | roller | 90 mm Tolerance: J6 | 145 mm Tolerance: h6 | ||
| CRB10020 | Metric | roller | 100.0 | 150.0 | 1.45 | Open |
| CRB10020UU | Metric | roller | 100.0 | 150.0 | 1.45 | Sealed |
| CRBC10020 | Metric | roller | 100.0 | 150.0 | 1.45 | Open |
| CRBC10020UU | Metric | roller | 100.0 | 150.0 | 1.45 | Sealed |
| RE10016 | Metric | roller | 100.0 | 140.0 | 0.83 | Open |
| RE10016UU | Metric | roller | 100.0 | 140.0 | 0.83 | Sealed |
| RE10020 | Metric | roller | 100.0 | 150.0 | 1.45 | Open |
| RE10020UU | Metric | roller | 100.0 | 150.0 | 1.45 | Sealed |
| RA10008 | Metric | roller | 100.0 | 116.0 | 0.14 | Open |
| RA10008C | Metric | roller | 100.0 | 116.0 | 0.14 | Open |
| RA10008CUU | Metric | roller | 100.0 | 116.0 | 0.14 | Sealed |
| RA10008UU | Metric | roller | 100.0 | 116.0 | 0.14 | Sealed |
| CRBS1008 | Metric | roller | 100.0 | 116.0 | 0.0152 | Open |
| CRBS1008AUU | Metric | roller | 100.0 | 116.0 | 0.152 | Sealed |
| CRBS1008V | Metric | roller | 100.0 | 116.0 | 0.152 | Open |
| CRBS1008VUU | Metric | roller | 100.0 | 116.0 | 0.152 | Sealed |
| CRBHV10020A | Metric | roller | 100.0 | 150.0 | 1.45 | Open |
| CRBHV10020AUU | Metric | roller | 100.0 | 150.0 | 1.45 | Sealed |
| XV100 | Metric | roller | 100 mm Tolerance: J6 | 170 mm Tolerance: h6 | ||
| CRB11020 | Metric | roller | 110.0 | 160.0 | 1.56 | Open |
| CRB11020UU | Metric | roller | 110.0 | 160.0 | 1.56 | Sealed |
| CRBC11020 | Metric | roller | 110.0 | 160.0 | 1.56 | Open |
| CRBC11020UU | Metric | roller | 110.0 | 160.0 | 1.56 | Sealed |
| RE11012 | Metric | roller | 110.0 | 135.0 | 0.4 | Open |
| RE11012UU | Metric | roller | 110.0 | 135.0 | 0.4 | Sealed |
| RE11015 | Metric | roller | 110.0 | 145.0 | 0.75 | Open |
| RE11015UU | Metric | roller | 110.0 | 145.0 | 0.75 | Sealed |
| RE11020 | Metric | roller | 110.0 | 160.0 | 1.56 | Open |
| RE11020UU | Metric | roller | 110.0 | 160.0 | 1.56 | Sealed |
| RA11008 | Metric | roller | 110.0 | 126.0 | 0.15 | Open |
| RA11008C | Metric | roller | 110.0 | 126.0 | 0.15 | Open |
| RA11008CUU | Metric | roller | 110.0 | 126.0 | 0.15 | Sealed |
| RA11008UU | Metric | roller | 110.0 | 126.0 | 0.15 | Sealed |
| CRBS1108 | Metric | roller | 110.0 | 126.0 | 0.0163 | Open |
| CRBS1108AUU | Metric | roller | 110.0 | 126.0 | 0.163 | Sealed |
| CRBS1108V | Metric | roller | 110.0 | 126.0 | 0.163 | Open |
| CRBS1108VUU | Metric | roller | 110.0 | 126.0 | 0.163 | Sealed |
| CRBHV11020A | Metric | roller | 110.0 | 160.0 | 1.56 | Open |
| CRBHV11020AUU | Metric | roller | 110.0 | 160.0 | 1.56 | Sealed |
| XV110 | Metric | roller | 110 mm Tolerance: J6 | 180 mm Tolerance: h6 | ||
| CRBFV11528A | Metric | roller | 115.0 | 240.0 | 6.63 | Open |
| CRBFV11528AD | Metric | roller | 115.0 | 240.0 | 6.63 | Open |
| CRBFV11528ADUU | Metric | roller | 115.0 | 240.0 | 6.63 | Sealed |
| CRBFV11528AT | Metric | roller | 115.0 | 240.0 | 6.8 | Open |
| CRBFV11528ATUU | Metric | roller | 115.0 | 240.0 | 6.8 | Sealed |
| CRBFV11528AUU | Metric | roller | 115.0 | 240.0 | 6.63 | Sealed |
| CRB12025 | Metric | roller | 120.0 | 180.0 | 2.62 | Open |
| CRB12025UU | Metric | roller | 120.0 | 180.0 | 2.62 | Sealed |
| CRBC12025 | Metric | roller | 120.0 | 180.0 | 2.62 | Open |
| CRBC12025UU | Metric | roller | 120.0 | 180.0 | 2.62 | Sealed |
| RE12016 | Metric | roller | 120.0 | 150.0 | 0.72 | Open |
| RE12016UU | Metric | roller | 120.0 | 150.0 | 0.72 | Sealed |
| RE12025 | Metric | roller | 120.0 | 180.0 | 2.62 | Open |
| RE12025UU | Metric | roller | 120.0 | 180.0 | 2.62 | Sealed |
| RA12008 | Metric | roller | 120.0 | 136.0 | 0.17 | Open |
| RA12008C | Metric | roller | 120.0 | 136.0 | 0.17 | Open |
| RA12008CUU | Metric | roller | 120.0 | 136.0 | 0.17 | Sealed |
| RA12008UU | Metric | roller | 120.0 | 136.0 | 0.17 | Sealed |
| CRBS1208 | Metric | roller | 120.0 | 136.0 | 0.0184 | Open |
| CRBS1208AUU | Metric | roller | 120.0 | 136.0 | 0.184 | Sealed |
| CRBS1208V | Metric | roller | 120.0 | 136.0 | 0.184 | Open |
| CRBS1208VUU | Metric | roller | 120.0 | 136.0 | 0.184 | Sealed |
| CRBHV12025A | Metric | roller | 120.0 | 180.0 | 2.62 | Open |
| CRBHV12025AUU | Metric | roller | 120.0 | 180.0 | 2.62 | Sealed |
| CRB13025 | Metric | roller | 130.0 | 190.0 | 2.82 | Open |
| CRB13025UU | Metric | roller | 130.0 | 190.0 | 2.82 | Sealed |
| CRBC13025 | Metric | roller | 130.0 | 190.0 | 2.82 | Open |
| CRBC13025UU | Metric | roller | 130.0 | 190.0 | 2.82 | Sealed |
| RE13015 | Metric | roller | 130.0 | 160.0 | 0.72 | Open |
| RE13015UU | Metric | roller | 130.0 | 160.0 | 0.72 | Sealed |
| RE13025 | Metric | roller | 130.0 | 190.0 | 2.82 | Open |
| RE13025UU | Metric | roller | 130.0 | 190.0 | 2.82 | Sealed |
| RA13008 | Metric | roller | 130.0 | 146.0 | 0.18 | Open |
| RA13008C | Metric | roller | 130.0 | 146.0 | 0.18 | Open |
| RA13008CUU | Metric | roller | 130.0 | 146.0 | 0.18 | Sealed |
| RA13008UU | Metric | roller | 130.0 | 146.0 | 0.18 | Sealed |
| CRBS 1308 V | Metric | roller | 130.0 | 146.0 | 0.199 | Open |
| CRBS 1308 V UU | Metric | roller | 130.0 | 146.0 | 0.199 | Sealed |
| CRBS1308 | Metric | roller | 130.0 | 146.0 | 0.0199 | Open |
| CRBS1308AUU | Metric | roller | 130.0 | 146.0 | 0.199 | Sealed |
| CRBHV13025A | Metric | roller | 130.0 | 190.0 | 2.82 | Open |
| CRBHV13025AUU | Metric | roller | 130.0 | 190.0 | 2.82 | Sealed |
| CRB14025 | Metric | roller | 140.0 | 200.0 | 2.96 | Open |
| CRB14025UU | Metric | roller | 140.0 | 200.0 | 2.96 | Sealed |
| CRBC14025 | Metric | roller | 140.0 | 200.0 | 2.96 | Open |
| CRBC14025UU | Metric | roller | 140.0 | 200.0 | 2.96 | Sealed |
| RE14016 | Metric | roller | 140.0 | 175.0 | 1.0 | Open |
| RE14016UU | Metric | roller | 140.0 | 175.0 | 1.0 | Sealed |
| RE14025 | Metric | roller | 140.0 | 200.0 | 2.96 | Open |
| RE14025UU | Metric | roller | 140.0 | 200.0 | 2.96 | Sealed |
| RA14008 | Metric | roller | 140.0 | 156.0 | 0.19 | Open |
| RA14008C | Metric | roller | 140.0 | 156.0 | 0.19 | Open |
| RA14008CUU | Metric | roller | 140.0 | 156.0 | 0.19 | Sealed |
| RA14008UU | Metric | roller | 140.0 | 156.0 | 0.19 | Sealed |
| CRBS 1408 V | Metric | roller | 140.0 | 156.0 | 0.205 | Open |
| CRBS 1408 V UU | Metric | roller | 140.0 | 156.0 | 0.205 | Sealed |
| CRBS1408 | Metric | roller | 140.0 | 156.0 | 0.0205 | Open |
| CRBS1408AUU | Metric | roller | 140.0 | 156.0 | 0.205 | Sealed |
| CRBHV14025A | Metric | roller | 140.0 | 200.0 | 2.96 | Open |
| CRBHV14025AUU | Metric | roller | 140.0 | 200.0 | 2.96 | Sealed |
| CRB15025 | Metric | roller | 150.0 | 210.0 | 3.16 | Open |
| CRB15025UU | Metric | roller | 150.0 | 210.0 | 3.16 | Sealed |
| CRB15030 | Metric | roller | 150.0 | 230.0 | 5.3 | Open |
| CRB15030UU | Metric | roller | 150.0 | 230.0 | 5.3 | Sealed |
| CRBC15025 | Metric | roller | 150.0 | 210.0 | 3.16 | Open |
| CRBC15025UU | Metric | roller | 150.0 | 210.0 | 3.16 | Sealed |
| CRBC15030 | Metric | roller | 150.0 | 230.0 | 5.3 | Open |
| CRBC15030UU | Metric | roller | 150.0 | 230.0 | 5.3 | Sealed |
| RE15013 | Metric | roller | 150.0 | 180.0 | 0.68 | Open |
| RE15013UU | Metric | roller | 150.0 | 180.0 | 0.68 | Sealed |
| RE15025 | Metric | roller | 150.0 | 210.0 | 3.16 | Open |
| RE15025UU | Metric | roller | 150.0 | 210.0 | 3.16 | Sealed |
| RE15030 | Metric | roller | 150.0 | 230.0 | 5.3 | Open |
| RE15030UU | Metric | roller | 150.0 | 230.0 | 5.3 | Sealed |
| RA15008 | Metric | roller | 150.0 | 166.0 | 0.2 | Open |
| RA15008C | Metric | roller | 150.0 | 166.0 | 0.2 | Open |
| RA15008CUU | Metric | roller | 150.0 | 166.0 | 0.2 | Sealed |
| RA15008UU | Metric | roller | 150.0 | 166.0 | 0.2 | Sealed |
| CRBS 1508 V | Metric | roller | 150.0 | 166.0 | 0.22 | Open |
| CRBS 1508 V UU | Metric | roller | 150.0 | 166.0 | 0.22 | Sealed |
| CRBS1508 | Metric | roller | 150.0 | 166.0 | 0.022 | Open |
| CRBS1508AUU | Metric | roller | 150.0 | 166.0 | 0.22 | Sealed |
| CRBHV15025A | Metric | roller | 150.0 | 210.0 | 3.16 | Open |
| CRBHV15025AUU | Metric | roller | 150.0 | 210.0 | 3.16 | Sealed |
| RU228 | Metric | roller | 160.0 | 295.0 | 11.4 | Open |
| RU228UU | Metric | roller | 160.0 | 295.0 | 11.4 | Sealed |
| RE16025 | Metric | roller | 160.0 | 220.0 | 3.14 | Open |
| RE16025UU | Metric | roller | 160.0 | 220.0 | 3.14 | Sealed |
| RA16013 | Metric | roller | 160.0 | 186.0 | 0.59 | Open |
| RA16013C | Metric | roller | 160.0 | 186.0 | 0.59 | Open |
| RA16013CUU | Metric | roller | 160.0 | 186.0 | 0.59 | Sealed |
| RA16013UU | Metric | roller | 160.0 | 186.0 | 0.59 | Sealed |
| CRBS 16013 V | Metric | roller | 160.0 | 186.0 | 0.62 | Open |
| CRBS 16013 V UU | Metric | roller | 160.0 | 186.0 | 0.62 | Sealed |
| CRBS16013 | Metric | roller | 160.0 | 186.0 | 0.062 | Open |
| CRBS16013AUU | Metric | roller | 160.0 | 186.0 | 0.62 | Sealed |
| RE17020 | Metric | roller | 170.0 | 220.0 | 2.21 | Open |
| RE17020UU | Metric | roller | 170.0 | 220.0 | 2.21 | Sealed |
| RA17013 | Metric | roller | 170.0 | 196.0 | 0.64 | Open |
| RA17013C | Metric | roller | 170.0 | 196.0 | 0.64 | Open |
| RA17013CUU | Metric | roller | 170.0 | 196.0 | 0.64 | Sealed |
| RA17013UU | Metric | roller | 170.0 | 196.0 | 0.64 | Sealed |
| CRBS 17013 V | Metric | roller | 170.0 | 196.0 | 0.675 | Open |
| CRBS 17013 V UU | Metric | roller | 170.0 | 196.0 | 0.675 | Sealed |
| CRBS17013 | Metric | roller | 170.0 | 196.0 | 0.0675 | Open |
| CRBS17013AUU | Metric | roller | 170.0 | 196.0 | 0.675 | Sealed |
| RE18025 | Metric | roller | 180.0 | 240.0 | 3.44 | Open |
| RE18025UU | Metric | roller | 180.0 | 240.0 | 3.44 | Sealed |
| RA18013 | Metric | roller | 180.0 | 206.0 | 0.68 | Open |
| RA18013C | Metric | roller | 180.0 | 206.0 | 0.68 | Open |
| RA18013CUU | Metric | roller | 180.0 | 206.0 | 0.68 | Sealed |
| RA18013UU | Metric | roller | 180.0 | 206.0 | 0.68 | Sealed |
| CRBS 18013 V | Metric | roller | 180.0 | 206.0 | 0.71 | Open |
| CRBS 18013 V UU | Metric | roller | 180.0 | 206.0 | 0.71 | Sealed |
| CRBS18013 | Metric | roller | 180.0 | 206.0 | 0.071 | Open |
| CRBS18013AUU | Metric | roller | 180.0 | 206.0 | 0.71 | Sealed |
| RE19025 | Metric | roller | 190.0 | 240.0 | 2.99 | Open |
| RE19025UU | Metric | roller | 190.0 | 240.0 | 2.99 | Sealed |
| RA19013 | Metric | roller | 190.0 | 216.0 | 0.69 | Open |
| RA19013C | Metric | roller | 190.0 | 216.0 | 0.69 | Open |
| RA19013CUU | Metric | roller | 190.0 | 216.0 | 0.69 | Sealed |
| RA19013UU | Metric | roller | 190.0 | 216.0 | 0.69 | Sealed |
| CRBS 19013 V | Metric | roller | 190.0 | 216.0 | 0.74 | Open |
| CRBS 19013 V UU | Metric | roller | 190.0 | 216.0 | 0.74 | Sealed |
| CRBS19013 | Metric | roller | 190.0 | 216.0 | 0.074 | Open |
| CRBS19013AUU | Metric | roller | 190.0 | 216.0 | 0.74 | Sealed |
| CRB20025 | Metric | roller | 200.0 | 260.0 | 4.0 | Open |
| CRB20025UU | Metric | roller | 200.0 | 260.0 | 4.0 | Sealed |
| CRB20030 | Metric | roller | 200.0 | 280.0 | 6.7 | Open |
| CRB20035 | Metric | roller | 200.0 | 295.0 | 9.6 | Open |
| CRBC20025 | Metric | roller | 200.0 | 260.0 | 4.0 | Open |
| CRBC20025UU | Metric | roller | 200.0 | 260.0 | 4.0 | Sealed |
| CRBC20030 | Metric | roller | 200.0 | 280.0 | 6.7 | Open |
| CRBC20035 | Metric | roller | 200.0 | 295.0 | 9.6 | Open |
| RE20025 | Metric | roller | 200.0 | 260.0 | 4.0 | Open |
| RE20025UU | Metric | roller | 200.0 | 260.0 | 4.0 | Sealed |
| RE20030 | Metric | roller | 200.0 | 280.0 | 6.7 | Open |
| RE20030UU | Metric | roller | 200.0 | 280.0 | 6.7 | Sealed |
| RE20035 | Metric | roller | 200.0 | 295.0 | 9.6 | Open |
| RE20035UU | Metric | roller | 200.0 | 295.0 | 9.6 | Sealed |
| RA20013 | Metric | roller | 200.0 | 226.0 | 0.71 | Open |
| RA20013C | Metric | roller | 200.0 | 226.0 | 0.71 | Open |
| RA20013CUU | Metric | roller | 200.0 | 226.0 | 0.71 | Sealed |
| RA20013UU | Metric | roller | 200.0 | 226.0 | 0.71 | Sealed |
| CRBS 20013 V | Metric | roller | 200.0 | 226.0 | 0.78 | Open |
| CRBS 20013 V UU | Metric | roller | 200.0 | 226.0 | 0.78 | Sealed |
| CRBS20013 | Metric | roller | 200.0 | 226.0 | 0.078 | Open |
| CRBS20013AUU | Metric | roller | 200.0 | 226.0 | 0.78 | Sealed |
| CRBHV20025A | Metric | roller | 200.0 | 260.0 | 4.0 | Open |
| CRBHV20025AUU | Metric | roller | 200.0 | 260.0 | 4.0 | Sealed |
| RU297 | Metric | roller | 210.0 | 380.0 | 21.3 | Open |
| RU297UU | Metric | roller | 210.0 | 380.0 | 21.3 | Sealed |
| RE22025 | Metric | roller | 220.0 | 280.0 | 4.1 | Open |
| RE22025UU | Metric | roller | 220.0 | 280.0 | 4.1 | Sealed |
| RE24025 | Metric | roller | 240.0 | 300.0 | 4.5 | Open |
| RE24025UU | Metric | roller | 240.0 | 300.0 | 4.5 | Sealed |
| CRB25025 | Metric | roller | 250.0 | 310.0 | 5.0 | Open |
| CRB25025UU | Metric | roller | 250.0 | 310.0 | 5.0 | Sealed |
| CRB25030 | Metric | roller | 250.0 | 330.0 | 8.1 | Open |
| CRB25040 | Metric | roller | 250.0 | 355.0 | 14.8 | Open |
| CRBC25025 | Metric | roller | 250.0 | 310.0 | 5.0 | Open |
| CRBC25025UU | Metric | roller | 250.0 | 310.0 | 5.0 | Sealed |
| CRBC25030 | Metric | roller | 250.0 | 330.0 | 8.1 | Open |
| CRBC25040 | Metric | roller | 250.0 | 355.0 | 14.8 | Open |
| RE25025 | Metric | roller | 250.0 | 310.0 | 5.0 | Open |
| RE25025UU | Metric | roller | 250.0 | 310.0 | 5.0 | Sealed |
| RE25030 | Metric | roller | 250.0 | 330.0 | 8.1 | Open |
| RE25030UU | Metric | roller | 250.0 | 330.0 | 8.1 | Sealed |
| RE25040 | Metric | roller | 250.0 | 355.0 | 14.8 | Open |
| RE25040UU | Metric | roller | 250.0 | 355.0 | 14.8 | Sealed |
| CRBHV25025A | Metric | roller | 250.0 | 310.0 | 4.97 | Open |
| CRBHV25025AUU | Metric | roller | 250.0 | 310.0 | 4.97 | Sealed |
| CRB30025 | Metric | roller | 300.0 | 360.0 | 5.9 | Open |
| CRB30025UU | Metric | roller | 300.0 | 360.0 | 5.9 | Sealed |
| CRB30035 | Metric | roller | 300.0 | 395.0 | 13.4 | Open |
| CRB30040 | Metric | roller | 300.0 | 405.0 | 17.2 | Open |
| CRBC30025 | Metric | roller | 300.0 | 360.0 | 5.9 | Open |
| CRBC30025UU | Metric | roller | 300.0 | 360.0 | 5.9 | Sealed |
| CRBC30035 | Metric | roller | 300.0 | 395.0 | 13.4 | Open |
| CRBC30040 | Metric | roller | 300.0 | 405.0 | 17.2 | Open |
| RE30025 | Metric | roller | 300.0 | 360.0 | 5.9 | Open |
| RE30025UU | Metric | roller | 300.0 | 360.0 | 5.9 | Sealed |
| RE30035 | Metric | roller | 300.0 | 395.0 | 13.4 | Open |
| RE30035UU | Metric | roller | 300.0 | 395.0 | 13.4 | Sealed |
| RE30040 | Metric | roller | 300.0 | 405.0 | 17.2 | Open |
| RE30040UU | Metric | roller | 300.0 | 405.0 | 17.2 | Sealed |
| CRBH30025A | Metric | roller | 300.0 | 360.0 | 5.29 | Open |
| CRBH30025AUU | Metric | roller | 300.0 | 360.0 | 5.29 | Sealed |
| RU445 | Metric | roller | 350.0 | 540.0 | 35.4 | Open |
| RU445UU | Metric | roller | 350.0 | 540.0 | 35.4 | Sealed |
| RE35020 | Metric | roller | 350.0 | 400.0 | 3.9 | Open |
| RE35020UU | Metric | roller | 350.0 | 400.0 | 3.9 | Sealed |
| CRB40035 | Metric | roller | 400.0 | 480.0 | 14.5 | Open |
| CRB40040 | Metric | roller | 400.0 | 510.0 | 23.5 | Open |
| CRB40070 | Metric | roller | 400.0 | 580.0 | 72.4 | Open |
| CRBC40035 | Metric | roller | 400.0 | 480.0 | 14.5 | Open |
| CRBC40040 | Metric | roller | 400.0 | 510.0 | 23.5 | Open |
| CRBC40070 | Metric | roller | 400.0 | 580.0 | 72.4 | Open |
| RE40035 | Metric | roller | 400.0 | 480.0 | 14.5 | Open |
| RE40035UU | Metric | roller | 400.0 | 480.0 | 14.5 | Sealed |
| RE40040 | Metric | roller | 400.0 | 510.0 | 23.5 | Open |
| RE40040UU | Metric | roller | 400.0 | 510.0 | 23.5 | Sealed |
| RE45025 | Metric | roller | 450.0 | 500.0 | 6.6 | Open |
| RE45025UU | Metric | roller | 450.0 | 500.0 | 6.6 | Sealed |
| RE50025 | Metric | roller | 500.0 | 550.0 | 7.3 | Open |
| RE50025UU | Metric | roller | 500.0 | 550.0 | 7.3 | Sealed |
| RE50040 | Metric | roller | 500.0 | 600.0 | 26.0 | Open |
| RE50040UU | Metric | roller | 500.0 | 600.0 | 26.0 | Sealed |
| RE50050 | Metric | roller | 500.0 | 625.0 | 41.7 | Open |
| RE50050UU | Metric | roller | 500.0 | 625.0 | 41.7 | Sealed |
| CRB600120 | Metric | roller | 600.0 | 870.0 | 274.0 | Open |
| CRB60040 | Metric | roller | 600.0 | 700.0 | 29.0 | Open |
| CRB60070 | Metric | roller | 600.0 | 780.0 | 102.0 | Open |
| CRBC600120 | Metric | roller | 600.0 | 870.0 | Open | |
| CRBC60040 | Metric | roller | 600.0 | 700.0 | 29.0 | Open |
| CRBC60070 | Metric | roller | 600.0 | 780.0 | Open | |
| RE60040 | Metric | roller | 600.0 | 700.0 | 29.0 | Open |
| RE60040UU | Metric | roller | 600.0 | 700.0 | 29.0 | Sealed |
| CRB700150 | Metric | roller | 700.0 | 478.0 | Open | |
| CRB70045 | Metric | roller | 700.0 | 815.0 | 46.0 | Open |
| CRB70070 | Metric | roller | 700.0 | 880.0 | 115.0 | Open |
| CRBC700150 | Metric | roller | 700.0 | Open | ||
| CRBC70045 | Metric | roller | 700.0 | 815.0 | 46.0 | Open |
| CRBC70070 | Metric | roller | 700.0 | 880.0 | Open | |
| CRB800100 | Metric | roller | 800.0 | 247.0 | Open | |
| CRB80070 | Metric | roller | 800.0 | 950.0 | 105.0 | Open |
| CRBC800100 | Metric | roller | 800.0 | 247.0 | Open | |
| CRBC80070 | Metric | roller | 800.0 | 950.0 | 105.0 | Open |
REQUEST FOR QUOTE
