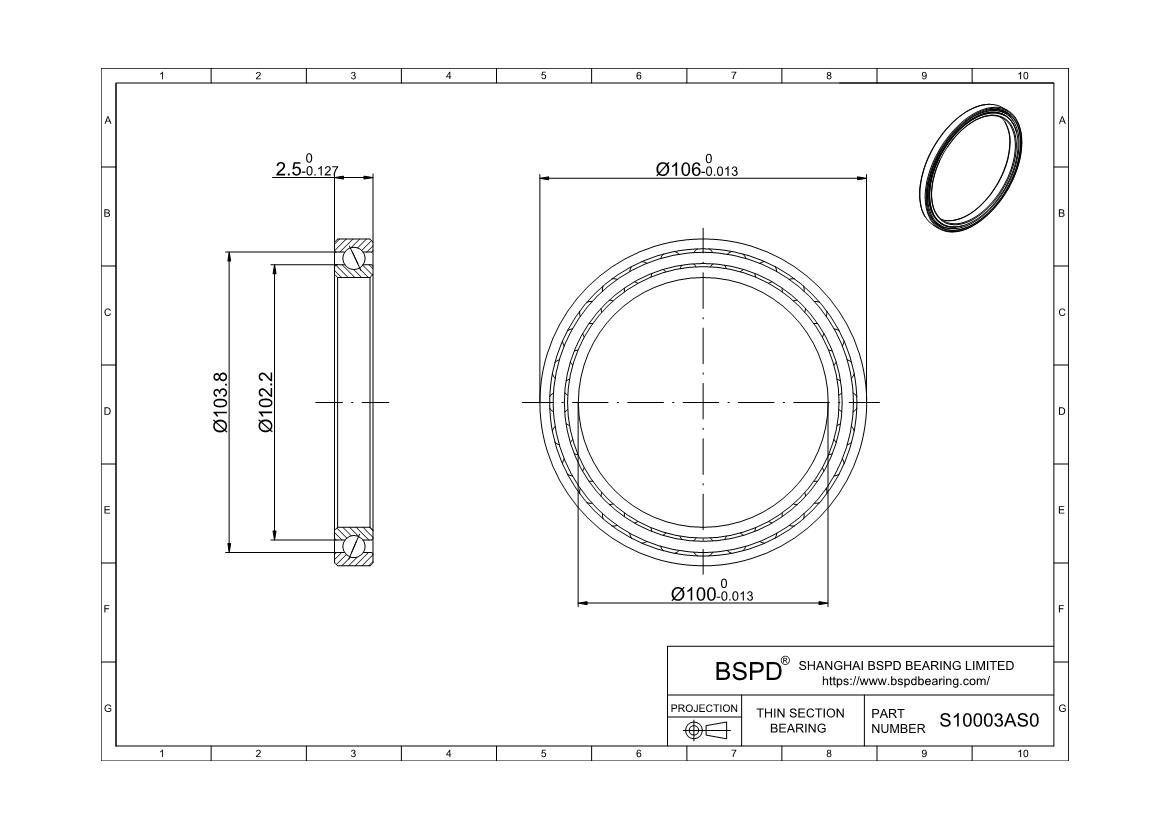

S10003AS0 Ultra Slim Extra Thin Section Bearings
Dimensions: Bore (Inner) Diameter: 100 mm; Outer Diameter: 106 mm; Width (Thickness): 2.5 mm;

S10003AS0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 2.5 mm
Part Number S10003AS0
For Shaft Diameter 100 mm
Bore Dia (d) 100 mm
Bore Dia Tolerance -0.013mm to 0
For Housing ID 106 mm
Outer Dia (D) 106 mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 2.5 mm
Width Tolerance +.000 –.127mm
Land dia.L1 102.2
Land dia.L2 103.8
Ring Material 440C stainless steel
Ball Material 440C stainless steel
Cage Material Stainless Steel
Dynamic radial (N) 765
Static (N) Radial 1077
Thrust 890
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (g) 15
S10003AS0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
