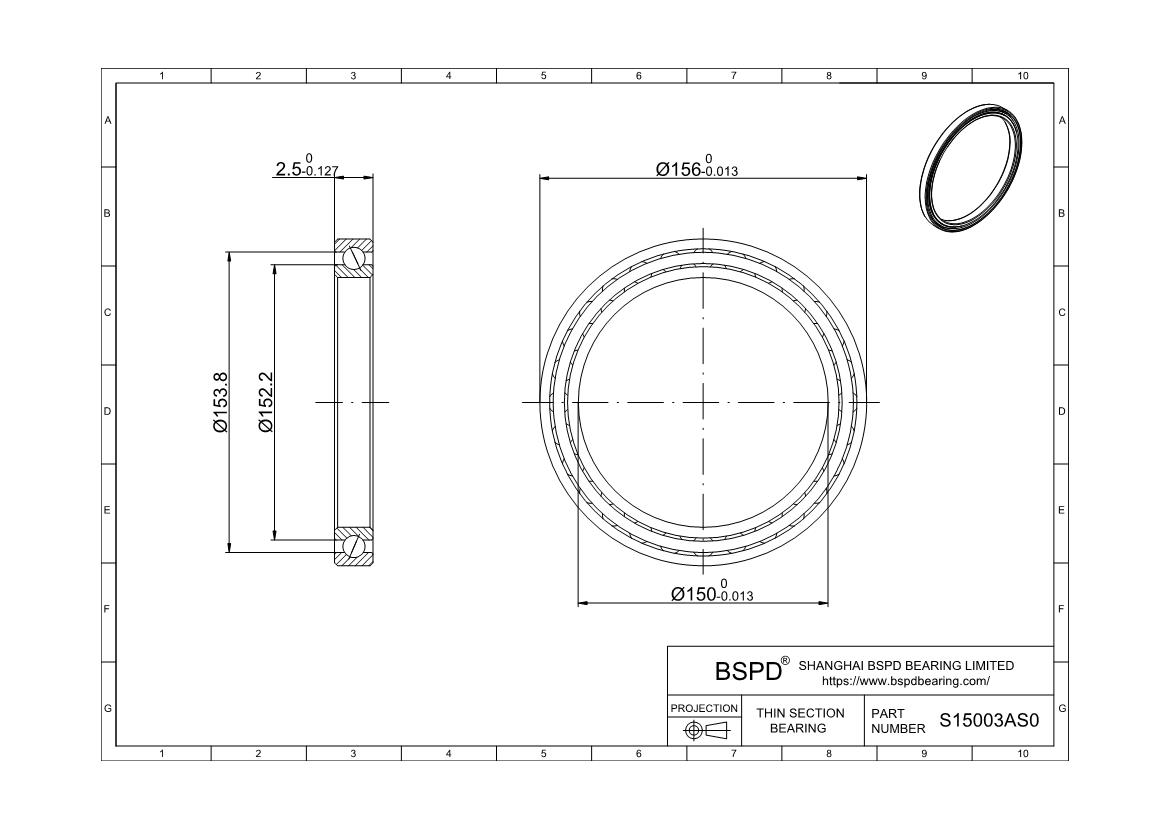

S15003AS0 Ultra Slim Extra Thin Section Bearings
Dimensions: Bore (Inner) Diameter: 150 mm; Outer Diameter: 156 mm; Width (Thickness): 2.5 mm;

S15003AS0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 2.5 mm
Part Number S15003AS0
For Shaft Diameter 150 mm
Bore Dia (d) 150 mm
Bore Dia Tolerance -0.013mm to 0
For Housing ID 156 mm
Outer Dia (D) 156 mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 2.5 mm
Width Tolerance +.000 –.127mm
Land dia.L1 152.2
Land dia.L2 153.8
Ring Material 440C stainless steel
Ball Material 440C stainless steel
Cage Material Stainless Steel
Dynamic radial (N) 1001
Static (N) Radial 1621
Thrust 712
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (g) 22
S15003AS0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
