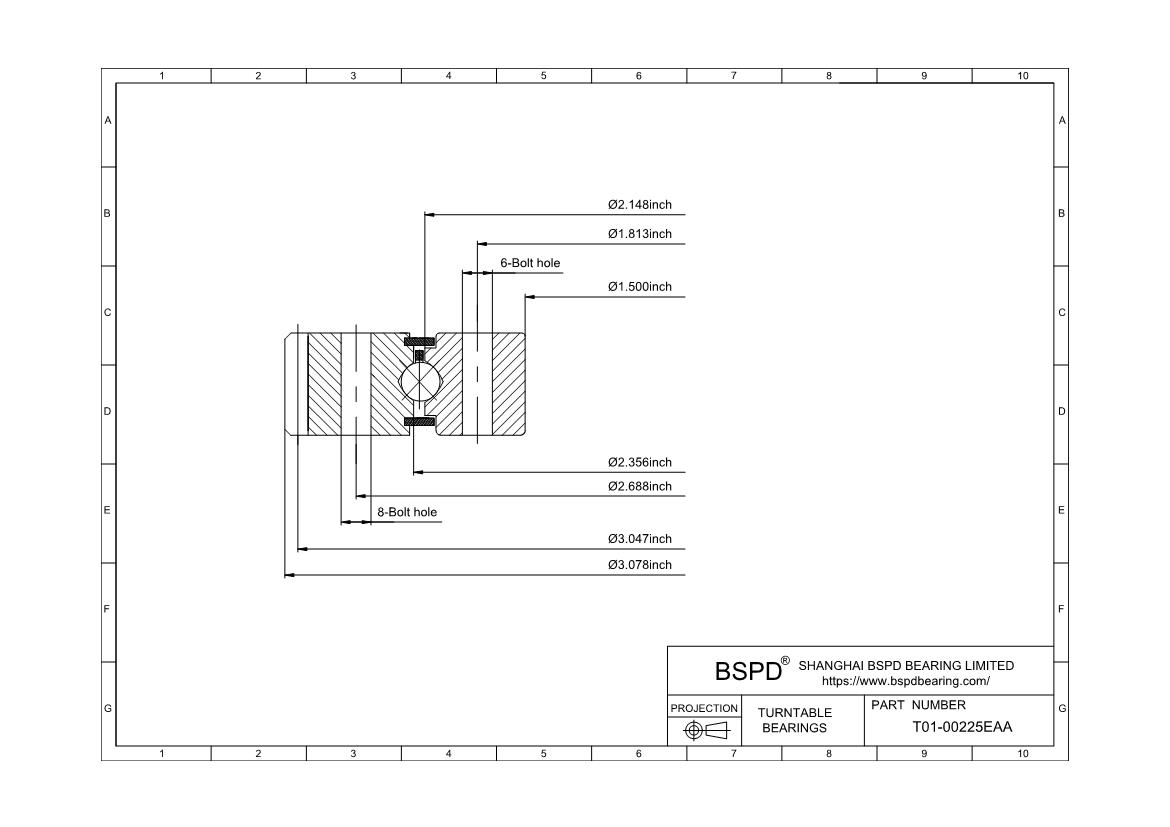

T01-00225EAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 1.500"； Outer Diameter: 3.078"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00225EAA | |
| gear | External gear | |
| Bore Dia (d) | 1.500 | |
| Outer Dia (D) | 3.078 | |
| Inner Land | 2.148 | |
| Oueter Land | 2.356 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 1.813 | |
| Number of holes | 8 | |
| Outer Bolt Circle | 2.688 | |
| Gear pitich diameter(in) | 3.047 | |
| Number of teeth | 195 | |
| Dynamic(lbs) | Thrust | 790 |
| Radial | 520 | |
| Moment | 440 | |
| Static (lbs) | Thrust | 1;710 |
| Radial | 680 | |
| Moment | 770 | |
| Static Torque | 3.4 | |
| Weight (lbs) | 0.35 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00225EAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
