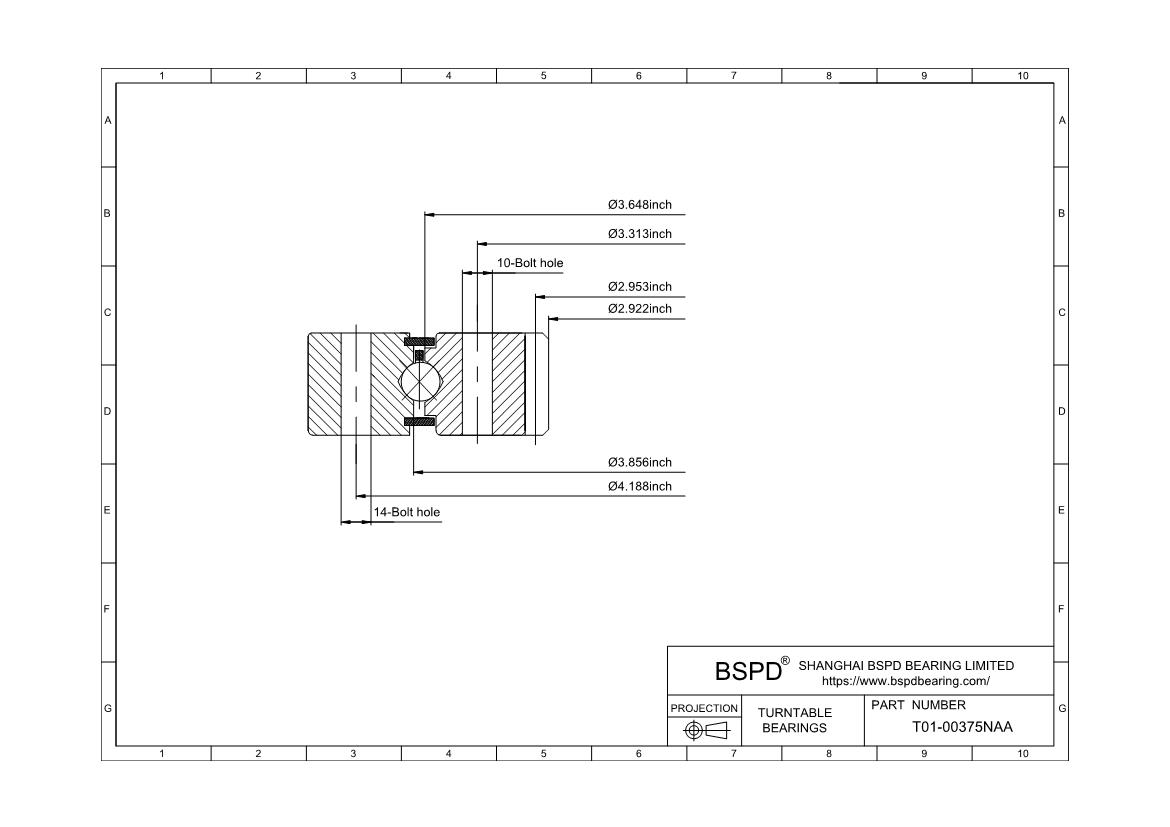

T01-00375NAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 2.922"； Outer Diameter: 4.500"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00375NAA | |
| gear | Internal gear | |
| Bore Dia (d) | 2.922 | |
| Outer Dia (D) | 4.500 | |
| Inner Land | 3.648 | |
| Oueter Land | 3.856 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 3.313 | |
| Number of holes | 10 | |
| Outer Bolt Circle | 4.188 | |
| Gear pitich diameter(in) | 2.953 | |
| Number of teeth | 189 | |
| Dynamic(lbs) | Thrust | 1;110 |
| Radial | 700 | |
| Moment | 980 | |
| Static (lbs) | Thrust | 2;850 |
| Radial | 1;140 | |
| Moment | 2;130 | |
| Static Torque | 6.5 | |
| Weight (lbs) | 0.59 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00375NAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
