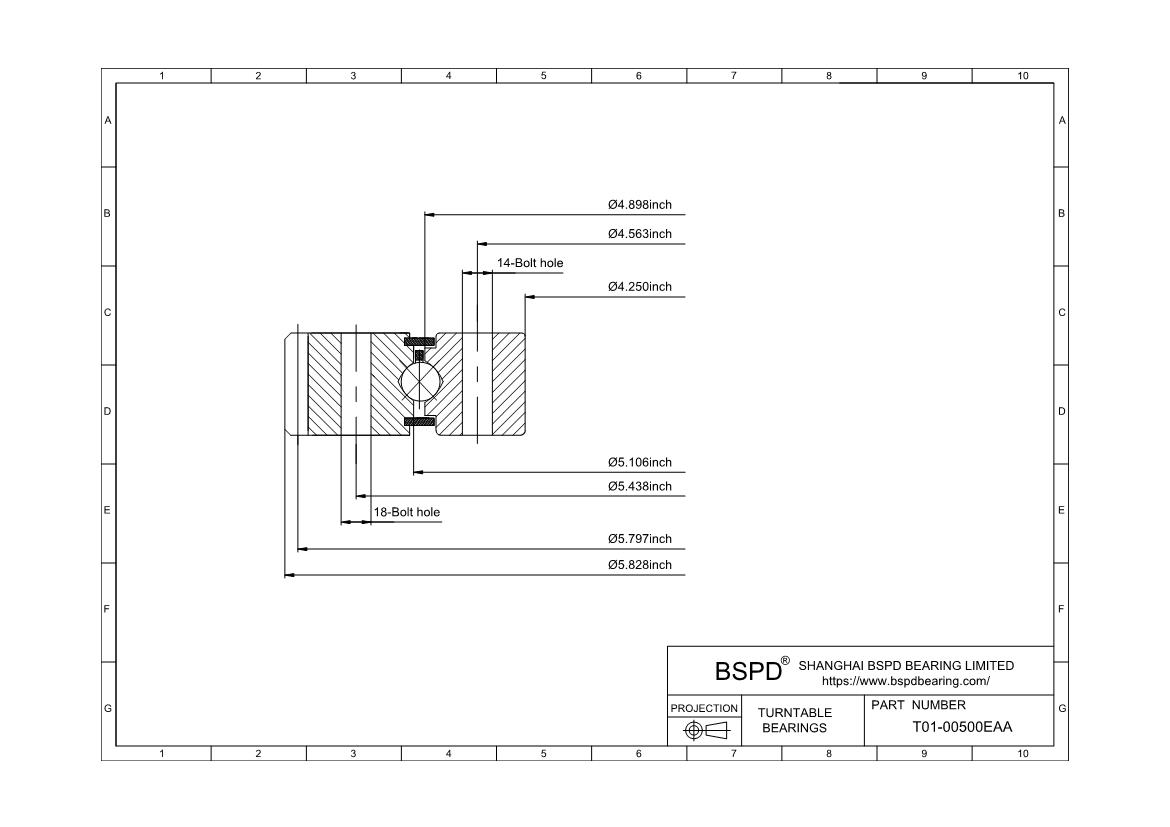

T01-00500EAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 4.250"； Outer Diameter: 5.828"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00500EAA | |
| gear | External gear | |
| Bore Dia (d) | 4.250 | |
| Outer Dia (D) | 5.828 | |
| Inner Land | 4.898 | |
| Oueter Land | 5.106 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 4.563 | |
| Number of holes | 18 | |
| Outer Bolt Circle | 5.438 | |
| Gear pitich diameter(in) | 5.797 | |
| Number of teeth | 371 | |
| Dynamic(lbs) | Thrust | 1;350 |
| Radial | 830 | |
| Moment | 1;560 | |
| Static (lbs) | Thrust | 3;790 |
| Radial | 1;520 | |
| Moment | 3;790 | |
| Static Torque | 9.0 | |
| Weight (lbs) | 0.78 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00500EAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
