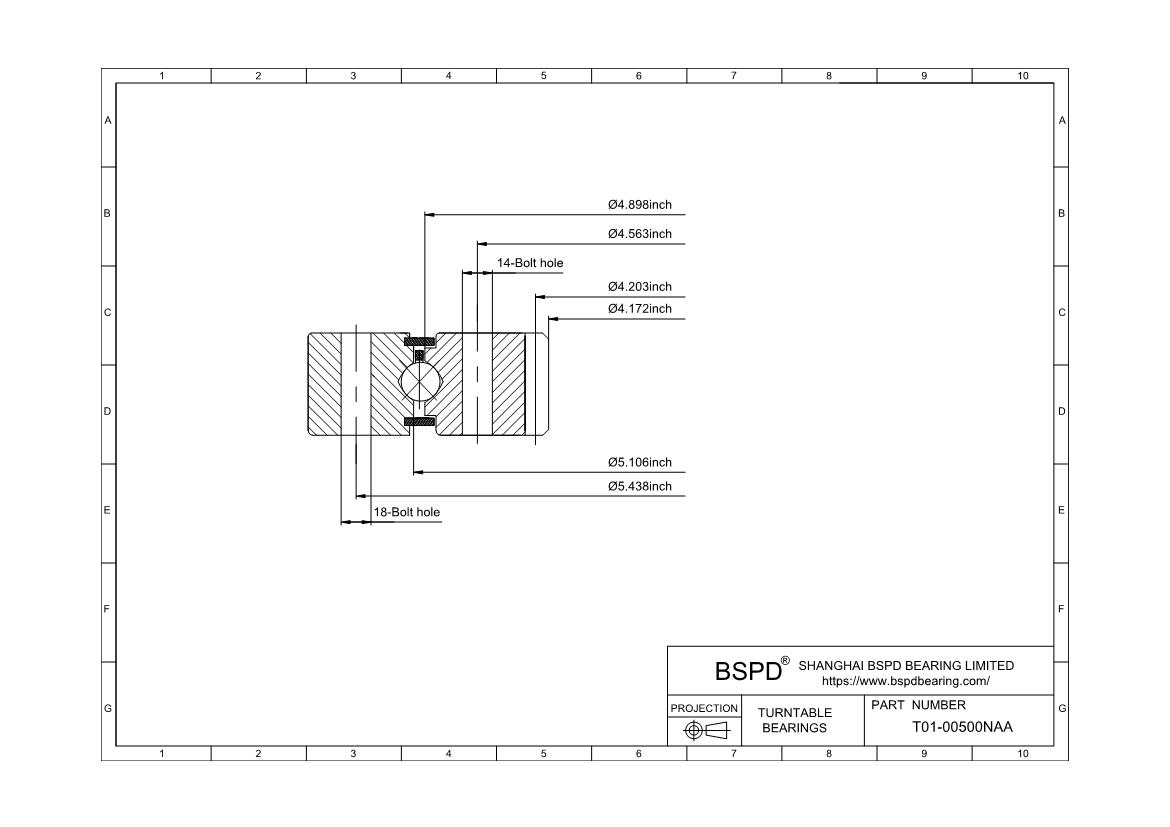

T01-00500NAA TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 4.172"; Outer Diameter: 5.750"; Width (Thickness): 0.25";

T01-00500NAA
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Part Number T01-00500NAA
gear Internal gear
Bore Dia (d) 4.172
Outer Dia (D) 5.750
Inner Land 4.898
Oueter Land 5.106
Width (B) 0.25
Inner Bolt Circle 4.563
Number of holes 14
Outer Bolt Circle 5.438
Gear pitich diameter(in) 4.203
Number of teeth 269
Dynamic(lbs) Thrust 1;350
Radial 830
Moment 1;560
Static (lbs) Thrust 3;790
Radial 1;520
Moment 3;790
Static Torque 9.0
Weight (lbs) 0.78
T01-00500NAA
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00500NAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
