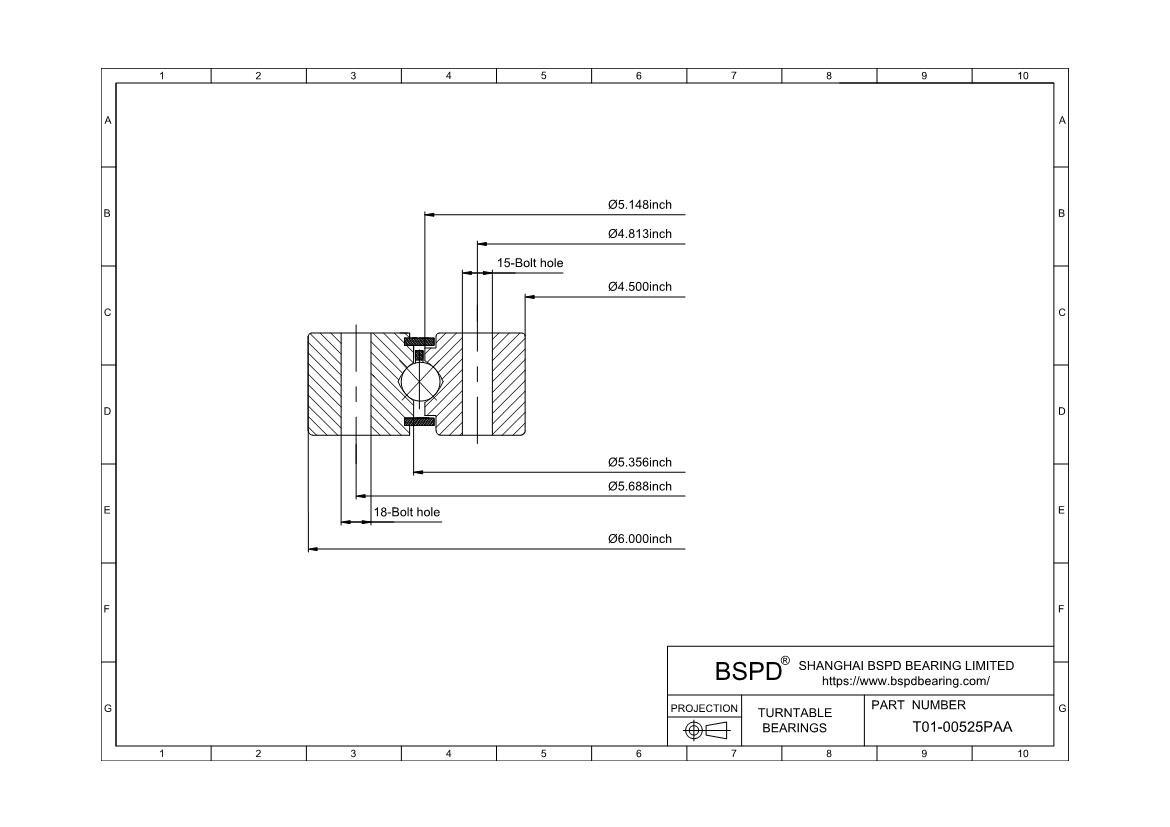

T01-00525PAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 4.500"； Outer Diameter: 6.00"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00525PAA | |
| gear | no gear | |
| Bore Dia (d) | 4.500 | |
| Outer Dia (D) | 6.000 | |
| Inner Land | 5.148 | |
| Oueter Land | 5.356 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 4.813 | |
| Number of holes | 15 | |
| Outer Bolt Circle | 5.688 | |
| Gear pitich diameter(in) | ||
| Number of teeth | ||
| Dynamic(lbs) | Thrust | 1;400 |
| Radial | 860 | |
| Moment | 1;690 | |
| Static (lbs) | Thrust | 3;980 |
| Radial | 1;590 | |
| Moment | 4;180 | |
| Static Torque | 9.5 | |
| Weight (lbs) | 0.82 | |
