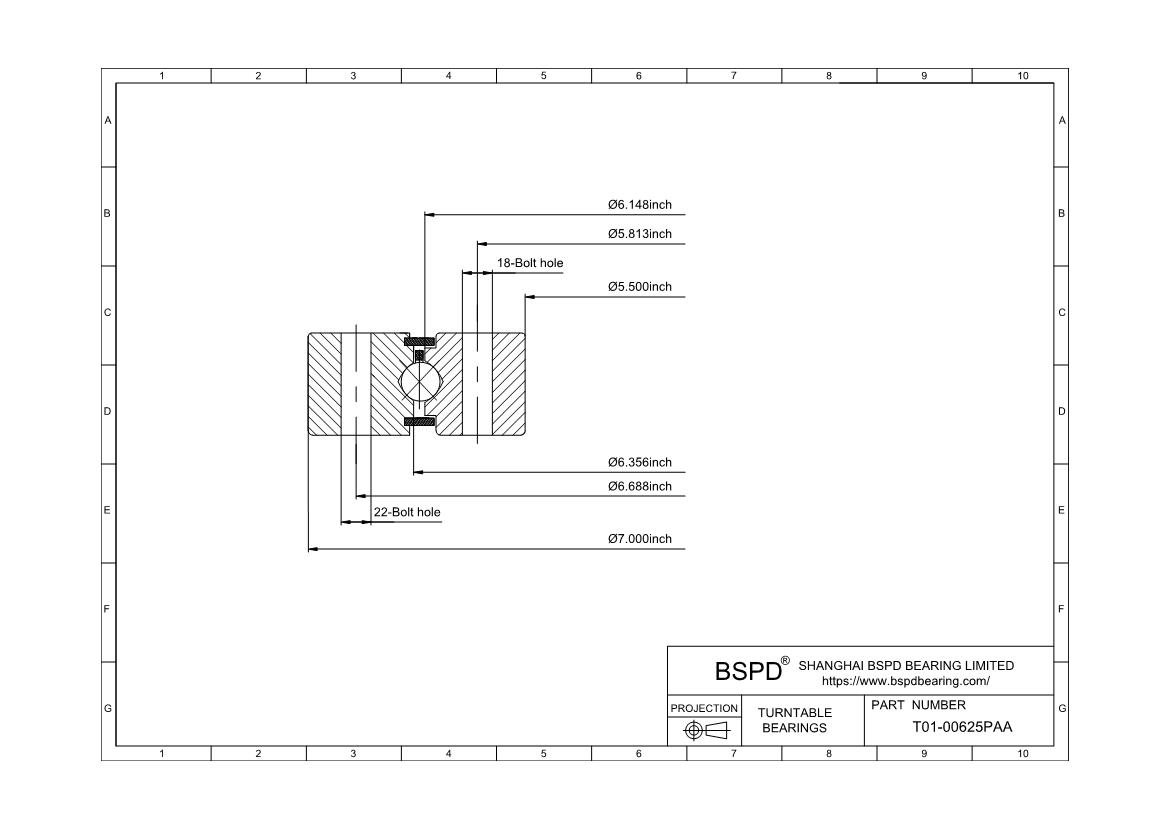

T01-00625PAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 5.500"； Outer Diameter: 7.000"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00625PAA | |
| gear | no gear | |
| Bore Dia (d) | 5.500 | |
| Outer Dia (D) | 7.000 | |
| Inner Land | 6.148 | |
| Oueter Land | 6.356 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 5.813 | |
| Number of holes | 18 | |
| Outer Bolt Circle | 6.688 | |
| Gear pitich diameter(in) | ||
| Number of teeth | ||
| Dynamic(lbs) | Thrust | 1;570 |
| Radial | 950 | |
| Moment | 2;230 | |
| Static (lbs) | Thrust | 4;740 |
| Radial | 1;900 | |
| Moment | 5;930 | |
| Static Torque | 11.3 | |
| Weight (lbs) | 0.98 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00625PAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
