S6205ZZ AISI440C Stainless Steel Ball Bearings

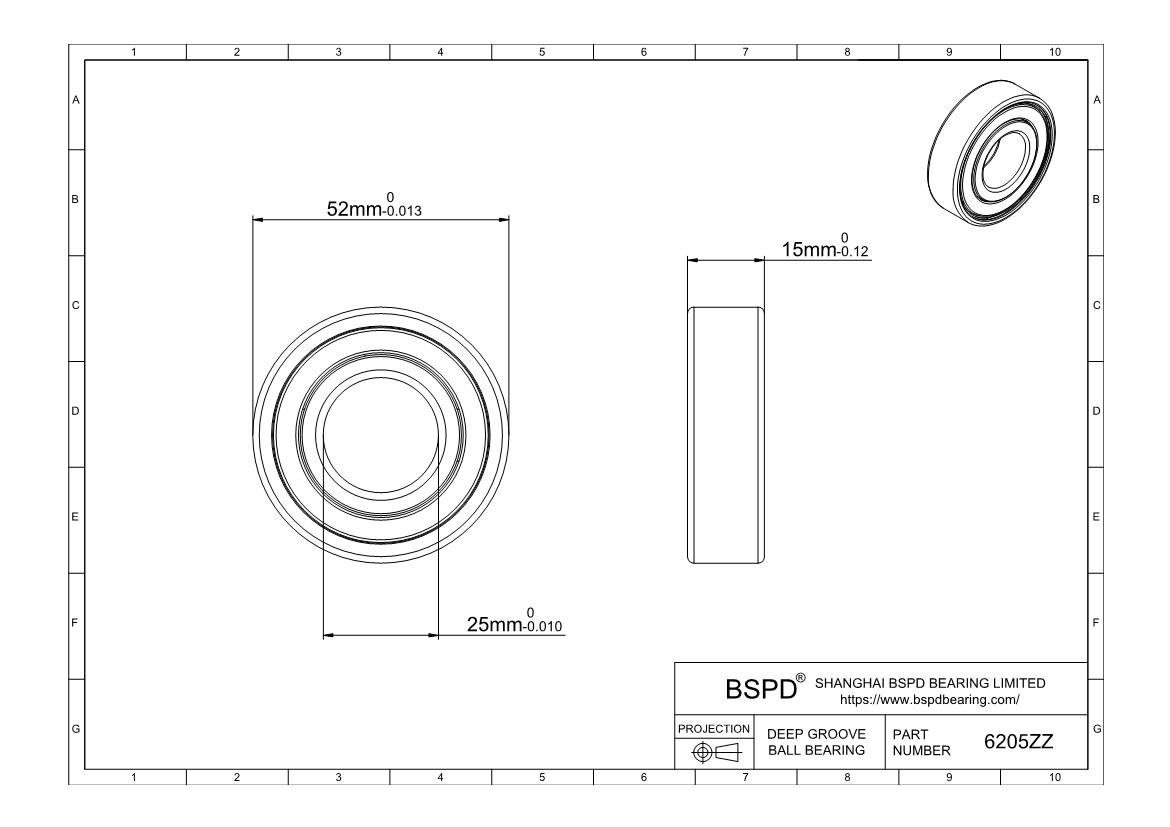

Dimensions: Bore (Inner) Diameter: 25 mm; Outer Diameter: 52 mm; Width (Thickness): 15 mm;

S6205ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number S6205ZZ
For Shaft Diameter 25 mm
Bore Dia (d) 25 mm
Bore Dia Tolerance -0.01mm to 0
For Housing ID 52mm
Outer Dia (D) 52mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 15mm
Width Tolerance -0.120mm to 0
Ring Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material 304 Stainless Steel
Seals Material 304 Stainless Steel
Dynamic radial (Newtons) 12600
Static radial (Newtons) 7065
Max Speed (X1000 RPM) 13.5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Weight (g) 128
S6205ZZ
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
