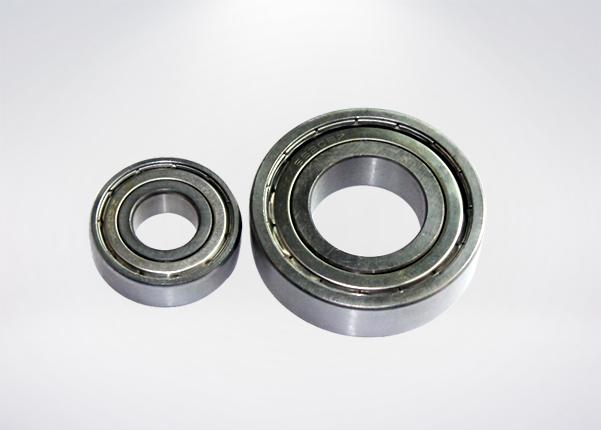

AISI440C Stainless Steel Ball Bearings
Advantages: corrosion resistance, acid and alkali resistance, high temperature resistance, waterproof, rust prevention;
| Product Number | System of measurement | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|
| SR133-2RS | Inch | 0.0938" | 0.1875" | 0.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR1-5 | Inch | 0.0938" | 0.3125" | 0.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR1-5-2RS | Inch | 0.0938" | 0.3125" | 1.15 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR1-5ZZ | Inch | 0.0938" | 0.3125" | 1.15 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR133 | Inch | 0.0938" | 0.1875" | 0.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR133ZZ | Inch | 0.0938" | 0.1875" | 0.15 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2 | Inch | 0.125" | 0.375" | 1.04 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR144 | Inch | 0.125" | 0.25" | 0.27 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR144-2RS | Inch | 0.125" | 0.25" | 0.4 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR144ZZ | Inch | 0.125" | 0.25" | 0.4 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2ZZ | Inch | 0.125" | 0.375" | 1.37 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-2RS | Inch | 0.125" | 0.375" | 1.37 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-5-2RS | Inch | 0.125" | 0.3125" | 0.74 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-5 | Inch | 0.125" | 0.3125" | 0.5 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-6 | Inch | 0.125" | 0.375" | 0.96 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-5ZZ | Inch | 0.125" | 0.3125" | 0.74 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-6ZZ | Inch | 0.125" | 0.375" | 1.23 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2-6-2RS | Inch | 0.125" | 0.375" | 1.23 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2A | Inch | 0.125" | 0.5" | 3.3 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2AZZ | Inch | 0.125" | 0.5" | 3.3 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR2A-2RS | Inch | 0.125" | 0.5" | 3.3 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR155 | Inch | 0.1563" | 0.3125" | 0.51 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR155-2RS | Inch | 0.1563" | 0.3125" | 0.51 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR155ZZ | Inch | 0.1563" | 0.3125" | 0.61 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR166 | Inch | 0.1875" | 0.375" | 0.81 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR156 | Inch | 0.1875" | 0.3125" | 0.4 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR156-2RS | Inch | 0.1875" | 0.3125" | 0.45 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR156ZZ | Inch | 0.1875" | 0.3125" | 0.45 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR166-2RS | Inch | 0.1875" | 0.375" | 0.85 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR3-2RS | Inch | 0.1875" | 0.5" | 2.95 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR166ZZ | Inch | 0.1875" | 0.375" | 0.85 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR3 | Inch | 0.1875" | 0.5" | 2.21 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR3ZZ | Inch | 0.1875" | 0.5" | 2.95 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR3A-2RS | Inch | 0.1875" | 0.625" | 5.08 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR3AZZ | Inch | 0.1875" | 0.625" | 5.08 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR3A | Inch | 0.1875" | 0.625" | 5.08 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1601 ZZ | Inch | 0.1875" | 0.6875" | 4 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1601 | Inch | 0.1875" | 0.6875" | 4 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1601-2RS | Inch | 0.1875" | 0.6875" | 4 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR168 | Inch | 0.25" | 0.375" | 0.57 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR168ZZ | Inch | 0.25" | 0.375" | 0.6 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR168-2RS | Inch | 0.25" | 0.375" | 0.60 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR4 | Inch | 0.25" | 0.625" | 4.46 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR188 | Inch | 0.25" | 0.5" | 1.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR188-2RS | Inch | 0.25" | 0.5" | 2.32 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR188ZZ | Inch | 0.25" | 0.5" | 2.32 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR4-2RS | Inch | 0.25" | 0.625" | 4.54 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR4ZZ | Inch | 0.25" | 0.625" | 4.54 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR4A | Inch | 0.25" | 0.75" | 7.48 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR4A-2RS | Inch | 0.25" | 0.75" | 10 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR4AZZ | Inch | 0.25" | 0.75" | 10 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1602 | Inch | 0.25" | 0.6875" | 6.3 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1602-2RS | Inch | 0.25" | 0.6875" | 6.3 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1602 ZZ | Inch | 0.25" | 0.6875" | 6.3 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR1810ZZ | Inch | 0.3125" | 0.5" | 1.57 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR1810 | Inch | 0.3125" | 0.5" | 1.39 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR1810-2RS | Inch | 0.3125" | 0.5" | 1.57 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1605 ZZ | Inch | 0.3125" | 0.9062" | 16.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1603 | Inch | 0.3125" | 0.875" | 9.5 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1603-2RS | Inch | 0.3125" | 0.875" | 9.5 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1603 ZZ | Inch | 0.3125" | 0.875" | 9.5 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1605 | Inch | 0.3125" | 0.9062" | 16.8 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1605-2RS | Inch | 0.3125" | 0.9062" | 16.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR6 | Inch | 0.375" | 0.875" | 9.02 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR6-2RS | Inch | 0.375" | 0.875" | 11.7 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR6ZZ | Inch | 0.375" | 0.875" | 11.7 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1606-2RS | Inch | 0.375" | 0.9062" | 21.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1604 | Inch | 0.375" | 0.875" | 8.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1604-2RS | Inch | 0.375" | 0.875" | 8.6 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1604 ZZ | Inch | 0.375" | 0.875" | 8.6 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1606 | Inch | 0.375" | 0.9062" | 21.8 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1606 ZZ | Inch | 0.375" | 0.9062" | 21.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1614 | Inch | 0.375" | 1.125" | 35 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1614-2RS | Inch | 0.375" | 1.125" | 35 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1614 ZZ | Inch | 0.375" | 1.125" | 35 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1607 | Inch | 0.4375" | 0.9062" | 22.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1620 | Inch | 0.4375" | 1.375" | 45.3 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1607-2RS | Inch | 0.4375" | 0.9062" | 22.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1607 ZZ | Inch | 0.4375" | 0.9062" | 22.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1615 | Inch | 0.4375" | 1.125" | 32.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1615-2RS | Inch | 0.4375" | 1.125" | 32.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1615 ZZ | Inch | 0.4375" | 1.125" | 32.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1620-2RS | Inch | 0.4375" | 1.375" | 45.3 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1620 ZZ | Inch | 0.4375" | 1.375" | 45.3 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1616-2RS | Inch | 0.5" | 1.125" | 30 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1616 | Inch | 0.5" | 1.125" | 30 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1616 ZZ | Inch | 0.5" | 1.125" | 30 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1621 | Inch | 0.5" | 1.375" | 48 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1621 ZZ | Inch | 0.5" | 1.375" | 48 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1621-2RS | Inch | 0.5" | 1.375" | 48 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR8ZZ | Inch | 0.5" | 1.125" | 24.1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR8 | Inch | 0.5" | 1.125" | 11.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR8-2RS | Inch | 0.5" | 1.125" | 24.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1622 | Inch | 0.5625" | 1.375" | 45.8 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1622-2RS | Inch | 0.5625" | 1.375" | 45.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1622 ZZ | Inch | 0.5625" | 1.375" | 45.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1628 | Inch | 0.625" | 1.625" | 72 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1623 | Inch | 0.625" | 1.375" | 40 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1623-2RS | Inch | 0.625" | 1.375" | 40 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1623 ZZ | Inch | 0.625" | 1.375" | 40 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1628-2RS | Inch | 0.625" | 1.625" | 72 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1628 ZZ | Inch | 0.625" | 1.625" | 72 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1633 | Inch | 0.625" | 1.75" | 92 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1633-2RS | Inch | 0.625" | 1.75" | 92 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1633 ZZ | Inch | 0.625" | 1.75" | 92 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR10 | Inch | 0.625" | 1.375" | 23.5 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR10-2RS | Inch | 0.625" | 1.375" | 38.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR10ZZ | Inch | 0.625" | 1.375" | 38.1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1635 | Inch | 0.75" | 1.75" | 84.8 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1630 | Inch | 0.75" | 1.625" | 64.9 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1630-2RS | Inch | 0.75" | 1.625" | 64.9 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1630 ZZ | Inch | 0.75" | 1.625" | 64.9 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1638-2RS | Inch | 0.75" | 2" | 120.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1635-2RS | Inch | 0.75" | 1.75" | 84.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1635 ZZ | Inch | 0.75" | 1.75" | 84.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1638 | Inch | 0.75" | 2" | 120.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1638 ZZ | Inch | 0.75" | 2" | 120.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR12 | Inch | 0.75" | 1.625" | 53.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR12-2RS | Inch | 0.75" | 1.625" | 69.3 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR12ZZ | Inch | 0.75" | 1.625" | 69.3 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1640-2RS | Inch | 0.875" | 2" | 112 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1640 | Inch | 0.875" | 2" | 112 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1640 ZZ | Inch | 0.875" | 2" | 112 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR14 | Inch | 0.875" | 1.875" | 78 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR14-2RS | Inch | 0.875" | 1.875" | 78 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1641 | Inch | 1" | 2" | 100.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1641-2RS | Inch | 1" | 2" | 100.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1641 ZZ | Inch | 1" | 2" | 100.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR16 | Inch | 1" | 2" | 87 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR16-2RS | Inch | 1" | 2" | 87 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR16ZZ | Inch | 1" | 2" | 87 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1652-2RS | Inch | 1.125" | 2.5" | 210 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1652 | Inch | 1.125" | 2.5" | 210 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1652 ZZ | Inch | 1.125" | 2.5" | 210 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR18ZZ | Inch | 1.125" | 2.125" | 91 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR18 | Inch | 1.125" | 2.125" | 91 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR18-2RS | Inch | 1.125" | 2.125" | 91 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1654-2RS | Inch | 1.25" | 2.5" | 190 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1654 | Inch | 1.25" | 2.5" | 190 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1654 ZZ | Inch | 1.25" | 2.5" | 190 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1657 | Inch | 1.25" | 2.5625" | 215 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1657-2RS | Inch | 1.25" | 2.5625" | 215 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1657 ZZ | Inch | 1.25" | 2.5625" | 215 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR20-2RS | Inch | 1.25" | 2.25" | 102 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR20 | Inch | 1.25" | 2.25" | 102 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR20ZZ | Inch | 1.25" | 2.25" | 102 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1658 | Inch | 1.3125" | 2.5625" | 200 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1658-2RS | Inch | 1.3125" | 2.5625" | 200 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S1658 ZZ | Inch | 1.3125" | 2.5625" | 200 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR22 | Inch | 1.375" | 2.5" | 105 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR22-2RS | Inch | 1.375" | 2.5" | 105 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR22ZZ | Inch | 1.375" | 2.5" | 105 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR24 | Inch | 1.5" | 2.625" | 140 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR24-2RS | Inch | 1.5" | 2.625" | 140 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SR24ZZ | Inch | 1.5" | 2.625" | 140 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S682 | Metric | 2 mm | 5 mm | 0.15 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S692ZZ | Metric | 2 mm | 6 mm | 0.35 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S692-2RS | Metric | 2 mm | 6 mm | 0.35 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S692 | Metric | 2 mm | 6 mm | 0.28 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR52ZZ | Metric | 2 mm | 5 mm | 0.20 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR52-2RS | Metric | 2 mm | 5 mm | 0.14 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR52 | Metric | 2 mm | 5 mm | 0.14 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S682ZZ | Metric | 2 mm | 5 mm | 0.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S682-2RS | Metric | 2 mm | 5 mm | 0.15 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR62 | Metric | 2 mm | 6 mm | 0.28 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR62-2RS | Metric | 2 mm | 6 mm | 0.28 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR72ZZ | Metric | 2 mm | 7 mm | 0.53 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR72-2RS | Metric | 2 mm | 7 mm | 0.53 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR72 | Metric | 2 mm | 7 mm | 0.43 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S602ZZ | Metric | 2 mm | 7 mm | 0.6 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S602-2RS | Metric | 2 mm | 7 mm | 0.6 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S602 | Metric | 2 mm | 7 mm | 0.50 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR62ZZ | Metric | 2 mm | 6 mm | 0.33 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S682X | Metric | 2.5 mm | 6 mm | 0.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S602X-2RS | Metric | 2.5 mm | 8 mm | 0.61 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S602XZZ | Metric | 2.5 mm | 8 mm | 0.85 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S692XZZ | Metric | 2.5 mm | 7 mm | 0.55 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S692X-2RS | Metric | 2.5 mm | 7 mm | 0.55 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S692X | Metric | 2.5 mm | 7 mm | 0.4 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S682XZZ | Metric | 2.5 mm | 6 mm | 0.35 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S682X-2RS | Metric | 2.5 mm | 6 mm | 0.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S602X | Metric | 2.5 mm | 8 mm | 0.61 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR82X | Metric | 2.5 mm | 8 mm | 0.52 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR82XZZ | Metric | 2.5 mm | 8 mm | 0.52 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR82X-2RS | Metric | 2.5 mm | 8 mm | 0.52 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S683ZZ | Metric | 3 mm | 7 mm | 0.45 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S683-2RS | Metric | 3 mm | 7 mm | 0.45 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S683 | Metric | 3 mm | 7 mm | 0.32 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR63ZZ | Metric | 3 mm | 6 mm | 0.28 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR63-2RS | Metric | 3 mm | 6 mm | 0.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR63 | Metric | 3 mm | 6 mm | 0.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S693 | Metric | 3 mm | 8 mm | 0.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S603ZZ | Metric | 3 mm | 9 mm | 1.13 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S603-2RS | Metric | 3 mm | 9 mm | 0.84 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S603 | Metric | 3 mm | 9 mm | 0.84 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR83ZZ | Metric | 3 mm | 8 mm | 0.67 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR83-2RS | Metric | 3 mm | 8 mm | 0.51 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR83 | Metric | 3 mm | 8 mm | 0.51 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S693ZZ | Metric | 3 mm | 8 mm | 0.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S693-2RS | Metric | 3 mm | 8 mm | 0.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR93 | Metric | 3 mm | 9 mm | 0.75 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S633ZZ | Metric | 3 mm | 13 mm | 3.43 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S633-2RS | Metric | 3 mm | 13 mm | 3.43 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S633 | Metric | 3 mm | 13 mm | 3.27 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S623ZZ | Metric | 3 mm | 10 mm | 1.65 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S623-2RS | Metric | 3 mm | 10 mm | 1.65 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S623 | Metric | 3 mm | 10 mm | 1.45 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR93ZZ | Metric | 3 mm | 9 mm | 1.15 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR93-2RS | Metric | 3 mm | 9 mm | 0.75 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR74 | Metric | 4 mm | 7 mm | 0.23 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR74-2RS | Metric | 4 mm | 7 mm | 0.23 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR74ZZ | Metric | 4 mm | 7 mm | 0.33 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR84ZZ | Metric | 4 mm | 8 mm | 0.56 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR84 | Metric | 4 mm | 8 mm | 0.39 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S684 | Metric | 4 mm | 9 mm | 0.65 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR84-2RS | Metric | 4 mm | 8 mm | 0.39 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S684-2RS | Metric | 4 mm | 9 mm | 1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S684ZZ | Metric | 4 mm | 9 mm | 1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR104 | Metric | 4 mm | 10 mm | 0.96 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR104-2RS | Metric | 4 mm | 10 mm | 1.33 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR104ZZ | Metric | 4 mm | 10 mm | 1.33 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S604-2RS | Metric | 4 mm | 12 mm | 2.34 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S604 | Metric | 4 mm | 12 mm | 2.19 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S694-2RS | Metric | 4 mm | 11 mm | 1.75 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S694ZZ | Metric | 4 mm | 11 mm | 1.75 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S694 | Metric | 4 mm | 11 mm | 1.69 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S604ZZ | Metric | 4 mm | 12 mm | 2.34 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S624-2RS | Metric | 4 mm | 13 mm | 3.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S624 | Metric | 4 mm | 13 mm | 3.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S634ZZ | Metric | 4 mm | 16 mm | 5.44 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S634-2RS | Metric | 4 mm | 16 mm | 5.44 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S624ZZ | Metric | 4 mm | 13 mm | 3.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S634 | Metric | 4 mm | 16 mm | 5.24 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR85ZZ | Metric | 5 mm | 8 mm | 0.34 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR85-2RS | Metric | 5 mm | 8 mm | 0.34 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR85 | Metric | 5 mm | 8 mm | 0.25 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR95 | Metric | 5 mm | 9 mm | 0.54 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S685ZZ | Metric | 5 mm | 11 mm | 1.93 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S685-2RS | Metric | 5 mm | 11 mm | 1.93 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S685 | Metric | 5 mm | 11 mm | 1.16 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR105ZZ | Metric | 5 mm | 10 mm | 1.26 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR105-2RS | Metric | 5 mm | 10 mm | 1.26 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR105 | Metric | 5 mm | 10 mm | 0.91 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR95ZZ | Metric | 5 mm | 9 mm | 0.58 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR95-2RS | Metric | 5 mm | 9 mm | 0.58 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR115 | Metric | 5 mm | 11 mm | 0.62 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S605ZZ | Metric | 5 mm | 14 mm | 3.75 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S605 | Metric | 5 mm | 14 mm | 3.46 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S605-2RS | Metric | 5 mm | 14 mm | 3.75 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S695ZZ | Metric | 5 mm | 13 mm | 2.31 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S695-2RS | Metric | 5 mm | 13 mm | 2.31 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S695 | Metric | 5 mm | 13 mm | 2.31 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR115ZZ | Metric | 5 mm | 11 mm | 0.62 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR115-2RS | Metric | 5 mm | 11 mm | 0.62 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S625 | Metric | 5 mm | 16 mm | 4.95 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S635-2RS | Metric | 5 mm | 19 mm | 8.89 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S635 | Metric | 5 mm | 19 mm | 8.5 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S625ZZ | Metric | 5 mm | 16 mm | 5.10 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S625-2RS | Metric | 5 mm | 16 mm | 5.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S635ZZ | Metric | 5 mm | 19 mm | 8.89 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR106ZZ | Metric | 6 mm | 10 mm | 0.7 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR106-2RS | Metric | 6 mm | 10 mm | 0.7 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR106 | Metric | 6 mm | 10 mm | 0.55 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR126 | Metric | 6 mm | 12 mm | 1.25 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S686 | Metric | 6 mm | 13 mm | 1.87 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S696 | Metric | 6 mm | 15 mm | 3.85 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S686-2RS | Metric | 6 mm | 13 mm | 2.68 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S686ZZ | Metric | 6 mm | 13 mm | 2.68 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S696-2RS | Metric | 6 mm | 15 mm | 3.65 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S696ZZ | Metric | 6 mm | 15 mm | 3.65 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR126-2RS | Metric | 6 mm | 12 mm | 1.66 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR126ZZ | Metric | 6 mm | 12 mm | 1.66 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S606 | Metric | 6 mm | 17 mm | 5.94 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S636ZZ | Metric | 6 mm | 22 mm | 14.5 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S636-2RS | Metric | 6 mm | 22 mm | 14.5 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S636 | Metric | 6 mm | 22 mm | 13.9 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S626ZZ | Metric | 6 mm | 19 mm | 8.65 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S626-2RS | Metric | 6 mm | 19 mm | 8.65 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S626 | Metric | 6 mm | 19 mm | 8.12 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S606ZZ | Metric | 6 mm | 17 mm | 6.89 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S606-2RS | Metric | 6 mm | 17 mm | 6.89 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR117 | Metric | 7 mm | 11 mm | 0.59 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S687ZZ | Metric | 7 mm | 14 mm | 2.95 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S687-2RS | Metric | 7 mm | 14 mm | 2.95 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S687 | Metric | 7 mm | 14 mm | 2.03 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR137ZZ | Metric | 7 mm | 13 mm | 2.01 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR137-2RS | Metric | 7 mm | 13 mm | 2.01 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR137 | Metric | 7 mm | 13 mm | 1.52 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR117ZZ | Metric | 7 mm | 11 mm | 0.71 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR117-2RS | Metric | 7 mm | 11 mm | 0.71 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S697 | Metric | 7 mm | 17 mm | 5.26 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S627ZZ | Metric | 7 mm | 22 mm | 13.1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S627-2RS | Metric | 7 mm | 22 mm | 13.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S627 | Metric | 7 mm | 22 mm | 12.7 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S607ZZ | Metric | 7 mm | 19 mm | 8.24 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S607-2RS | Metric | 7 mm | 19 mm | 8.24 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S607 | Metric | 7 mm | 19 mm | 7.8 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S697ZZ | Metric | 7 mm | 17 mm | 5.01 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S697-2RS | Metric | 7 mm | 17 mm | 5.01 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S637 | Metric | 7 mm | 26 mm | 24.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S637ZZ | Metric | 7 mm | 26 mm | 25.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S637-2RS | Metric | 7 mm | 26 mm | 25.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR148ZZ | Metric | 8 mm | 14 mm | 2.19 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR148-2RS | Metric | 8 mm | 14 mm | 2.19 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR148 | Metric | 8 mm | 14 mm | 1.9 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR128ZZ | Metric | 8 mm | 12 mm | 0.99 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR128-2RS | Metric | 8 mm | 12 mm | 0.99 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| SMR128 | Metric | 8 mm | 12 mm | 0.7 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S688 | Metric | 8 mm | 16 mm | 3.11 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S608ZZ | Metric | 8 mm | 22 mm | 12.9 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S698 | Metric | 8 mm | 19 mm | 7.12 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S688-2RS | Metric | 8 mm | 16 mm | 4.05 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S608 | Metric | 8 mm | 22 mm | 11.8 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S608-2RS | Metric | 8 mm | 22 mm | 12.9 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S698ZZ | Metric | 8 mm | 19 mm | 7.57 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S688ZZ | Metric | 8 mm | 16 mm | 4.05 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S698-2RS | Metric | 8 mm | 19 mm | 7.57 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S628 | Metric | 8 mm | 24 mm | 17.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S638ZZ | Metric | 8 mm | 28 mm | 30.3 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S638-2RS | Metric | 8 mm | 28 mm | 30.3 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S638 | Metric | 8 mm | 28 mm | 28.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S628ZZ | Metric | 8 mm | 24 mm | 18.5 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S628-2RS | Metric | 8 mm | 24 mm | 18.5 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S679ZZ | Metric | 9 mm | 14 mm | 1.98 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S679-2RS | Metric | 9 mm | 14 mm | 1.98 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S679 | Metric | 9 mm | 14 mm | 1.35 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S609ZZ | Metric | 9 mm | 24 mm | 16 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S609-2RS | Metric | 9 mm | 24 mm | 16 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S609 | Metric | 9 mm | 24 mm | 14.7 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S699ZZ | Metric | 9 mm | 20 mm | 8.54 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S699-2RS | Metric | 9 mm | 20 mm | 8.54 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S699 | Metric | 9 mm | 20 mm | 8.38 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S689ZZ | Metric | 9 mm | 17 mm | 4.38 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S689-2RS | Metric | 9 mm | 17 mm | 4.38 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S689 | Metric | 9 mm | 17 mm | 3.41 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S629 | Metric | 9 mm | 26 mm | 19 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S629-2RS | Metric | 9 mm | 26 mm | 21.8 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S629ZZ | Metric | 9 mm | 26 mm | 21.8 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S639 | Metric | 9 mm | 30 mm | 36.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S639ZZ | Metric | 9 mm | 30 mm | 37.1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S639-2RS | Metric | 9 mm | 30 mm | 37.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6000 | Metric | 10 mm | 26 mm | 19 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6300ZZ | Metric | 10 mm | 35 mm | 53 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6300-2RS | Metric | 10 mm | 35 mm | 53 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6300 | Metric | 10 mm | 35 mm | 53 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6200ZZ | Metric | 10 mm | 30 mm | 32 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6200-2RS | Metric | 10 mm | 30 mm | 32 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6200 | Metric | 10 mm | 30 mm | 32 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6000ZZ | Metric | 10 mm | 26 mm | 19 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6000-2RS | Metric | 10 mm | 26 mm | 19 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6700 | Metric | 10 mm | 15 mm | 1.4 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6800 | Metric | 10 mm | 19 mm | 40 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6700-2RS | Metric | 10 mm | 15 mm | 1.9 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6700ZZ | Metric | 10 mm | 15 mm | 1.9 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6800-2RS | Metric | 10 mm | 19 mm | 5.6 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6800ZZ | Metric | 10 mm | 19 mm | 5.6 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63800 | Metric | 10 mm | 19 mm | 7.4 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63800-2RS | Metric | 10 mm | 19 mm | 7.4 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63800ZZ | Metric | 10 mm | 19 mm | 7.4 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6900 | Metric | 10 mm | 22 mm | 10 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6900-2RS | Metric | 10 mm | 22 mm | 10 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6900ZZ | Metric | 10 mm | 22 mm | 10 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6001 | Metric | 12 mm | 28 mm | 22 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6301ZZ | Metric | 12 mm | 37 mm | 60 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6301-2RS | Metric | 12 mm | 37 mm | 60 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6301 | Metric | 12 mm | 37 mm | 60 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6201ZZ | Metric | 12 mm | 32 mm | 37 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6001ZZ | Metric | 12 mm | 28 mm | 22 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6201-2RS | Metric | 12 mm | 32 mm | 37 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6201 | Metric | 12 mm | 32 mm | 37 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6001-2RS | Metric | 12 mm | 28 mm | 22 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6901-2RS | Metric | 12 mm | 24 mm | 12 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6701 | Metric | 12 mm | 18 mm | 3.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6701-2RS | Metric | 12 mm | 18 mm | 3.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6701ZZ | Metric | 12 mm | 18 mm | 3.1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6801 | Metric | 12 mm | 21 mm | 6.5 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6801-2RS | Metric | 12 mm | 21 mm | 6.5 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6801ZZ | Metric | 12 mm | 21 mm | 6.5 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63801 | Metric | 12 mm | 21 mm | 8.5 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63801-2RS | Metric | 12 mm | 21 mm | 8.5 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63801ZZ | Metric | 12 mm | 21 mm | 8.5 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6901 | Metric | 12 mm | 24 mm | 12 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6901ZZ | Metric | 12 mm | 24 mm | 12 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6002 | Metric | 15 mm | 32 mm | 30 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6302-2RS | Metric | 15 mm | 42 mm | 82 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6302ZZ | Metric | 15 mm | 42 mm | 82 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6202ZZ | Metric | 15 mm | 35 mm | 45 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6302 | Metric | 15 mm | 42 mm | 82 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6202-2RS | Metric | 15 mm | 35 mm | 45 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6202 | Metric | 15 mm | 35 mm | 45 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6002-2RS | Metric | 15 mm | 32 mm | 30 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6002ZZ | Metric | 15 mm | 32 mm | 30 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6702-2RS | Metric | 15 mm | 21 mm | 3.6 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6702 | Metric | 15 mm | 21 mm | 3.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6702ZZ | Metric | 15 mm | 21 mm | 3.6 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6802 | Metric | 15 mm | 24 mm | 7.6 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6802-2RS | Metric | 15 mm | 24 mm | 7.6 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6802ZZ | Metric | 15 mm | 24 mm | 7.6 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63802-2RS | Metric | 15 mm | 24 mm | 10 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63802 | Metric | 15 mm | 24 mm | 10 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63802ZZ | Metric | 15 mm | 24 mm | 10 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6902 | Metric | 15 mm | 28 mm | 9 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6902-2RS | Metric | 15 mm | 28 mm | 9 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6902ZZ | Metric | 15 mm | 28 mm | 9 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6003 | Metric | 17 mm | 35 mm | 39 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6003ZZ | Metric | 17 mm | 35 mm | 39 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6303ZZ | Metric | 17 mm | 47 mm | 115 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6303-2RS | Metric | 17 mm | 47 mm | 115 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6303 | Metric | 17 mm | 47 mm | 115 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6203ZZ | Metric | 17 mm | 40 mm | 65 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6203-2RS | Metric | 17 mm | 40 mm | 65 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6203 | Metric | 17 mm | 40 mm | 65 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6003-2RS | Metric | 17 mm | 35 mm | 39 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6703 | Metric | 17 mm | 23 mm | 4 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63803ZZ | Metric | 17 mm | 26 mm | 11 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6703-2RS | Metric | 17 mm | 23 mm | 4 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6703ZZ | Metric | 17 mm | 23 mm | 4 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6803 | Metric | 17 mm | 26 mm | 8.2 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6803-2RS | Metric | 17 mm | 26 mm | 8.2 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6803ZZ | Metric | 17 mm | 26 mm | 8.2 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63803 | Metric | 17 mm | 26 mm | 11 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63803-2RS | Metric | 17 mm | 26 mm | 11 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6903 | Metric | 17 mm | 30 mm | 20 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6903-2RS | Metric | 17 mm | 30 mm | 20 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6903ZZ | Metric | 17 mm | 30 mm | 20 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6304ZZ | Metric | 20 mm | 52 mm | 144 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6004 | Metric | 20 mm | 42 mm | 69 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6304-2RS | Metric | 20 mm | 52 mm | 144 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6304 | Metric | 20 mm | 52 mm | 144 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6204ZZ | Metric | 20 mm | 47 mm | 106 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6204-2RS | Metric | 20 mm | 47 mm | 106 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6204 | Metric | 20 mm | 47 mm | 106 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6004ZZ | Metric | 20 mm | 42 mm | 69 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6004-2RS | Metric | 20 mm | 42 mm | 69 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63804-2RS | Metric | 20 mm | 32 mm | 24 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6704 | Metric | 20 mm | 27 mm | 5.9 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6704-2RS | Metric | 20 mm | 27 mm | 5.9 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6704ZZ | Metric | 20 mm | 27 mm | 5.9 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6804 | Metric | 20 mm | 32 mm | 18 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6804-2RS | Metric | 20 mm | 32 mm | 18 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6804ZZ | Metric | 20 mm | 32 mm | 18 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63804 | Metric | 20 mm | 32 mm | 24 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63804ZZ | Metric | 20 mm | 32 mm | 24 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6904-2RS | Metric | 20 mm | 37 mm | 40 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6904 | Metric | 20 mm | 37 mm | 40 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6904ZZ | Metric | 20 mm | 37 mm | 40 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6005 | Metric | 25 mm | 47 mm | 80 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6305ZZ | Metric | 25 mm | 62 mm | 232 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6305-2RS | Metric | 25 mm | 62 mm | 232 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6305 | Metric | 25 mm | 62 mm | 232 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6205ZZ | Metric | 25 mm | 52 mm | 128 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6205-2RS | Metric | 25 mm | 52 mm | 128 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6205 | Metric | 25 mm | 52 mm | 128 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6005ZZ | Metric | 25 mm | 47 mm | 80 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6005-2RS | Metric | 25 mm | 47 mm | 80 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6805-2RS | Metric | 25 mm | 37 mm | 24 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6705 | Metric | 25 mm | 32 mm | 7.1 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6705-2RS | Metric | 25 mm | 32 mm | 7.1 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6705ZZ | Metric | 25 mm | 32 mm | 7.1 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6805 | Metric | 25 mm | 37 mm | 24 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6905 | Metric | 25 mm | 42 mm | 47 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63805 | Metric | 25 mm | 37 mm | 32 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6805ZZ | Metric | 25 mm | 37 mm | 24 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63805-2RS | Metric | 25 mm | 37 mm | 32 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63805ZZ | Metric | 25 mm | 37 mm | 32 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6905-2RS | Metric | 25 mm | 42 mm | 47 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6905ZZ | Metric | 25 mm | 42 mm | 47 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6006 | Metric | 30 mm | 55 mm | 116 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6306ZZ | Metric | 30 mm | 72 mm | 346 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6306-2RS | Metric | 30 mm | 72 mm | 346 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6306 | Metric | 30 mm | 72 mm | 346 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6206ZZ | Metric | 30 mm | 62 mm | 199 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6206-2RS | Metric | 30 mm | 62 mm | 199 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6206 | Metric | 30 mm | 62 mm | 199 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6006ZZ | Metric | 30 mm | 55 mm | 116 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6006-2RS | Metric | 30 mm | 55 mm | 116 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63806 | Metric | 30 mm | 42 mm | 36 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6706 | Metric | 30 mm | 37 mm | 8.3 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6706-2RS | Metric | 30 mm | 37 mm | 8.3 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6706ZZ | Metric | 30 mm | 37 mm | 8.3 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6806 | Metric | 30 mm | 42 mm | 27 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6806-2RS | Metric | 30 mm | 42 mm | 27 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6806ZZ | Metric | 30 mm | 42 mm | 27 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63806ZZ | Metric | 30 mm | 42 mm | 36 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S63806-2RS | Metric | 30 mm | 42 mm | 36 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6906 | Metric | 30 mm | 47 mm | 53 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6906-2RS | Metric | 30 mm | 47 mm | 53 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6906ZZ | Metric | 30 mm | 47 mm | 53 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6007 | Metric | 35 mm | 62 mm | 155 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6007-2RS | Metric | 35 mm | 62 mm | 155 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6007ZZ | Metric | 35 mm | 62 mm | 155 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6207 | Metric | 35 mm | 72 mm | 288 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6207-2RS | Metric | 35 mm | 72 mm | 288 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6307-2RS | Metric | 35 mm | 80 mm | 457 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6207ZZ | Metric | 35 mm | 72 mm | 288 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6307 | Metric | 35 mm | 80 mm | 457 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6307ZZ | Metric | 35 mm | 80 mm | 457 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6707 | Metric | 35 mm | 44 mm | 15 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6707ZZ | Metric | 35 mm | 44 mm | 15 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6707-2RS | Metric | 35 mm | 44 mm | 15 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6807 | Metric | 35 mm | 47 mm | 32 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6907ZZ | Metric | 35 mm | 55 mm | 87 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6807-2RS | Metric | 35 mm | 47 mm | 32 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6807ZZ | Metric | 35 mm | 47 mm | 32 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6907 | Metric | 35 mm | 55 mm | 87 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6907-2RS | Metric | 35 mm | 55 mm | 87 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6208ZZ | Metric | 40 mm | 80 mm | 366 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6008ZZ | Metric | 40 mm | 68 mm | 192 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6008 | Metric | 40 mm | 68 mm | 192 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6008-2RS | Metric | 40 mm | 68 mm | 192 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6208 | Metric | 40 mm | 80 mm | 366 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6208-2RS | Metric | 40 mm | 80 mm | 366 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6308 | Metric | 40 mm | 90 mm | 620 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6308-2RS | Metric | 40 mm | 90 mm | 620 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6308ZZ | Metric | 40 mm | 90 mm | 620 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6708 | Metric | 40 mm | 50 mm | 23 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6808 | Metric | 40 mm | 52 mm | 35 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6708-2RS | Metric | 40 mm | 50 mm | 23 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6708ZZ | Metric | 40 mm | 50 mm | 23 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6808ZZ | Metric | 40 mm | 52 mm | 35 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6808-2RS | Metric | 40 mm | 52 mm | 35 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6908-2RS | Metric | 40 mm | 62 mm | 131 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6908 | Metric | 40 mm | 62 mm | 131 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6908ZZ | Metric | 40 mm | 62 mm | 131 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6009 | Metric | 45 mm | 75 mm | 245 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6009-2RS | Metric | 45 mm | 75 mm | 245 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6009ZZ | Metric | 45 mm | 75 mm | 245 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6309-2RS | Metric | 45 mm | 100 mm | 811 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6209 | Metric | 45 mm | 85 mm | 407 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6209-2RS | Metric | 45 mm | 85 mm | 407 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6209ZZ | Metric | 45 mm | 85 mm | 407 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6309 | Metric | 45 mm | 100 mm | 811 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6309ZZ | Metric | 45 mm | 100 mm | 811 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6709-2RS | Metric | 45 mm | 55 mm | 25 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6709 | Metric | 45 mm | 55 mm | 25 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6809ZZ | Metric | 45 mm | 58 mm | 42 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6709ZZ | Metric | 45 mm | 55 mm | 25 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6809 | Metric | 45 mm | 58 mm | 42 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6809-2RS | Metric | 45 mm | 58 mm | 42 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6909 | Metric | 45 mm | 68 mm | 147 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6909-2RS | Metric | 45 mm | 68 mm | 147 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6909ZZ | Metric | 45 mm | 68 mm | 147 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6010 | Metric | 50 mm | 80 mm | 261 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6010-2RS | Metric | 50 mm | 80 mm | 261 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6010ZZ | Metric | 50 mm | 80 mm | 261 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6210 | Metric | 50 mm | 90 mm | 463 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6210-2RS | Metric | 50 mm | 90 mm | 463 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6210ZZ | Metric | 50 mm | 90 mm | 463 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6310 | Metric | 50 mm | 110 mm | 1050 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6310-2RS | Metric | 50 mm | 110 mm | 1050 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6310ZZ | Metric | 50 mm | 110 mm | 1050 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6710 | Metric | 50 mm | 62 mm | 64 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6710-2RS | Metric | 50 mm | 62 mm | 64 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6710ZZ | Metric | 50 mm | 62 mm | 64 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6810 | Metric | 50 mm | 65 mm | 52 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6810-2RS | Metric | 50 mm | 65 mm | 52 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6910 | Metric | 50 mm | 72 mm | 133 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6810ZZ | Metric | 50 mm | 65 mm | 52 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6910-2RS | Metric | 50 mm | 72 mm | 133 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6910ZZ | Metric | 50 mm | 72 mm | 133 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6011 | Metric | 55 mm | 90 mm | 373 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6011-2RS | Metric | 55 mm | 90 mm | 373 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6011ZZ | Metric | 55 mm | 90 mm | 373 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6211 | Metric | 55 mm | 100 mm | 599 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6211-2RS | Metric | 55 mm | 100 mm | 599 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6211ZZ | Metric | 55 mm | 100 mm | 599 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6311 | Metric | 55 mm | 120 mm | 1350 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6311-2RS | Metric | 55 mm | 120 mm | 1350 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6311ZZ | Metric | 55 mm | 120 mm | 1350 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6811 | Metric | 55 mm | 72 mm | 83 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6811-2RS | Metric | 55 mm | 72 mm | 83 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6911 | Metric | 55 mm | 80 mm | 185 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6811ZZ | Metric | 55 mm | 72 mm | 83 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6911ZZ | Metric | 55 mm | 80 mm | 185 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6911-2RS | Metric | 55 mm | 80 mm | 185 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6012 | Metric | 60 mm | 95 mm | 403 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6012-2RS | Metric | 60 mm | 95 mm | 403 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6312-2RS | Metric | 60 mm | 130 mm | 1699 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6012ZZ | Metric | 60 mm | 95 mm | 403 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6212 | Metric | 60 mm | 110 mm | 762 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6212-2RS | Metric | 60 mm | 110 mm | 762 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6212ZZ | Metric | 60 mm | 110 mm | 762 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6312 | Metric | 60 mm | 130 mm | 1699 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6312ZZ | Metric | 60 mm | 130 mm | 1699 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6812 | Metric | 60 mm | 78 mm | 104 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6812-2RS | Metric | 60 mm | 78 mm | 104 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6812ZZ | Metric | 60 mm | 78 mm | 104 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6912 | Metric | 60 mm | 85 mm | 192 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6912-2RS | Metric | 60 mm | 85 mm | 192 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6912ZZ | Metric | 60 mm | 85 mm | 192 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6013-2RS | Metric | 65 mm | 100 mm | 430 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6013 | Metric | 65 mm | 100 mm | 430 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6013ZZ | Metric | 65 mm | 100 mm | 430 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6213-2RS | Metric | 65 mm | 120 mm | 979 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6213 | Metric | 65 mm | 120 mm | 979 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6213ZZ | Metric | 65 mm | 120 mm | 979 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6313 | Metric | 65 mm | 140 mm | 2080 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6313-2RS | Metric | 65 mm | 140 mm | 2080 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6313ZZ | Metric | 65 mm | 140 mm | 2080 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6813 | Metric | 65 mm | 85 mm | 126 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6813-2RS | Metric | 65 mm | 85 mm | 126 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6813ZZ | Metric | 65 mm | 85 mm | 126 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6913ZZ | Metric | 65 mm | 90 mm | 211 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6913-2RS | Metric | 65 mm | 90 mm | 211 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6913 | Metric | 65 mm | 90 mm | 211 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6014-2RS | Metric | 70 mm | 110 mm | 598 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6014 | Metric | 70 mm | 110 mm | 598 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6014ZZ | Metric | 70 mm | 110 mm | 598 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6314-2RS | Metric | 70 mm | 150 mm | 2530 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6214 | Metric | 70 mm | 125 mm | 1070 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6214-2RS | Metric | 70 mm | 125 mm | 1070 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6214ZZ | Metric | 70 mm | 125 mm | 1070 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6314 | Metric | 70 mm | 150 mm | 2530 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6314ZZ | Metric | 70 mm | 150 mm | 2530 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6814 | Metric | 70 mm | 90 mm | 134 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6814-2RS | Metric | 70 mm | 90 mm | 134 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6814ZZ | Metric | 70 mm | 90 mm | 134 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6914 | Metric | 70 mm | 100 mm | 342 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6914-2RS | Metric | 70 mm | 100 mm | 342 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6914ZZ | Metric | 70 mm | 100 mm | 342 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6015 | Metric | 75 mm | 115 mm | 638 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6215 | Metric | 75 mm | 130 mm | 1170 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6015-2RS | Metric | 75 mm | 115 mm | 638 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6015ZZ | Metric | 75 mm | 115 mm | 638 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6215-2RS | Metric | 75 mm | 130 mm | 1170 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6215ZZ | Metric | 75 mm | 130 mm | 1170 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6315 | Metric | 75 mm | 160 mm | 3030 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6315-2RS | Metric | 75 mm | 160 mm | 3030 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6315ZZ | Metric | 75 mm | 160 mm | 3030 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6815ZZ | Metric | 75 mm | 95 mm | 142 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6815 | Metric | 75 mm | 95 mm | 142 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6815-2RS | Metric | 75 mm | 95 mm | 142 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6915 | Metric | 75 mm | 105 mm | 363 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6915ZZ | Metric | 75 mm | 105 mm | 363 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6915-2RS | Metric | 75 mm | 105 mm | 363 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6016 | Metric | 80 mm | 125 mm | 854 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6016-2RS | Metric | 80 mm | 125 mm | 854 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6016ZZ | Metric | 80 mm | 125 mm | 854 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6216 | Metric | 80 mm | 140 mm | 1380 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6316ZZ | Metric | 80 mm | 170 mm | 3670 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6216ZZ | Metric | 80 mm | 140 mm | 1380 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6216-2RS | Metric | 80 mm | 140 mm | 1380 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6316 | Metric | 80 mm | 170 mm | 3670 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6316-2RS | Metric | 80 mm | 170 mm | 3670 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6816 | Metric | 80 mm | 100 mm | 150 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6816-2RS | Metric | 80 mm | 100 mm | 150 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6816ZZ | Metric | 80 mm | 100 mm | 150 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6916 | Metric | 80 mm | 110 mm | 382 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6916-2RS | Metric | 80 mm | 110 mm | 382 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6916ZZ | Metric | 80 mm | 110 mm | 382 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6217-2RS | Metric | 85 mm | 150 mm | 1740 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6017 | Metric | 85 mm | 130 mm | 899 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6017-2RS | Metric | 85 mm | 130 mm | 899 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6017ZZ | Metric | 85 mm | 130 mm | 899 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6217 | Metric | 85 mm | 150 mm | 1740 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6217ZZ | Metric | 85 mm | 150 mm | 1740 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6317 | Metric | 85 mm | 180 mm | 4220 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6317-2RS | Metric | 85 mm | 180 mm | 4220 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6317ZZ | Metric | 85 mm | 180 mm | 4220 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6817ZZ | Metric | 85 mm | 110 mm | 266 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6817 | Metric | 85 mm | 110 mm | 266 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6817-2RS | Metric | 85 mm | 110 mm | 266 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6917ZZ | Metric | 85 mm | 120 mm | 535 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6917 | Metric | 85 mm | 120 mm | 535 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6917-2RS | Metric | 85 mm | 120 mm | 535 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6018 | Metric | 90 mm | 140 mm | 1163 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6018-2RS | Metric | 90 mm | 140 mm | 1163 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6018ZZ | Metric | 90 mm | 140 mm | 1163 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6218 | Metric | 90 mm | 160 mm | 2150 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6218-2RS | Metric | 90 mm | 160 mm | 2150 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6218ZZ | Metric | 90 mm | 160 mm | 2150 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6318 | Metric | 90 mm | 190 mm | 4920 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6318-2RS | Metric | 90 mm | 190 mm | 4920 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6318ZZ | Metric | 90 mm | 190 mm | 4290 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6818 | Metric | 90 mm | 115 mm | 279 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6818-2RS | Metric | 90 mm | 115 mm | 279 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6818ZZ | Metric | 90 mm | 115 mm | 279 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6918 | Metric | 90 mm | 125 mm | 565 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6918-2RS | Metric | 90 mm | 125 mm | 565 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6918ZZ | Metric | 90 mm | 125 mm | 565 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6019ZZ | Metric | 95 mm | 145 mm | 1200 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6019 | Metric | 95 mm | 145 mm | 1200 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6019-2RS | Metric | 95 mm | 145 mm | 1200 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6219 | Metric | 95 mm | 170 mm | 2590 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6319-2RS | Metric | 95 mm | 200 mm | 5760 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6219-2RS | Metric | 95 mm | 170 mm | 2590 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6219ZZ | Metric | 95 mm | 170 mm | 2590 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6319 | Metric | 95 mm | 200 mm | 5760 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6319ZZ | Metric | 95 mm | 200 mm | 5760 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6819-2RS | Metric | 95 mm | 120 mm | 279 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6819 | Metric | 95 mm | 120 mm | 279 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6819ZZ | Metric | 95 mm | 120 mm | 279 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6020ZZ | Metric | 100 mm | 150 mm | 1250 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6020 | Metric | 100 mm | 150 mm | 1250 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6020-2RS | Metric | 100 mm | 150 mm | 1250 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6220 | Metric | 100 mm | 180 mm | 3120 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6220ZZ | Metric | 100 mm | 180 mm | 3120 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6220-2RS | Metric | 100 mm | 180 mm | 3120 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6320 | Metric | 100 mm | 215 mm | 7040 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6320-2RS | Metric | 100 mm | 215 mm | 7040 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6320ZZ | Metric | 100 mm | 215 mm | 7040 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6021 | Metric | 105 mm | 160 mm | 1560 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6321ZZ | Metric | 105 mm | 225 mm | 8090 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6021-2RS | Metric | 105 mm | 160 mm | 1560 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6021ZZ | Metric | 105 mm | 160 mm | 1560 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6221 | Metric | 105 mm | 190 mm | 3730 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6221-2RS | Metric | 105 mm | 190 mm | 3730 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6221ZZ | Metric | 105 mm | 190 mm | 3730 | Shielded | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6321 | Metric | 105 mm | 225 mm | 8090 | Open | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
| S6321-2RS | Metric | 105 mm | 225 mm | 8090 | Sealed | 440C Stainless Steel | 440C Stainless Steel | 304 Stainless Steel |
REQUEST FOR QUOTE
