S6912ZZ
AISI440C Stainless Steel Ball Bearings

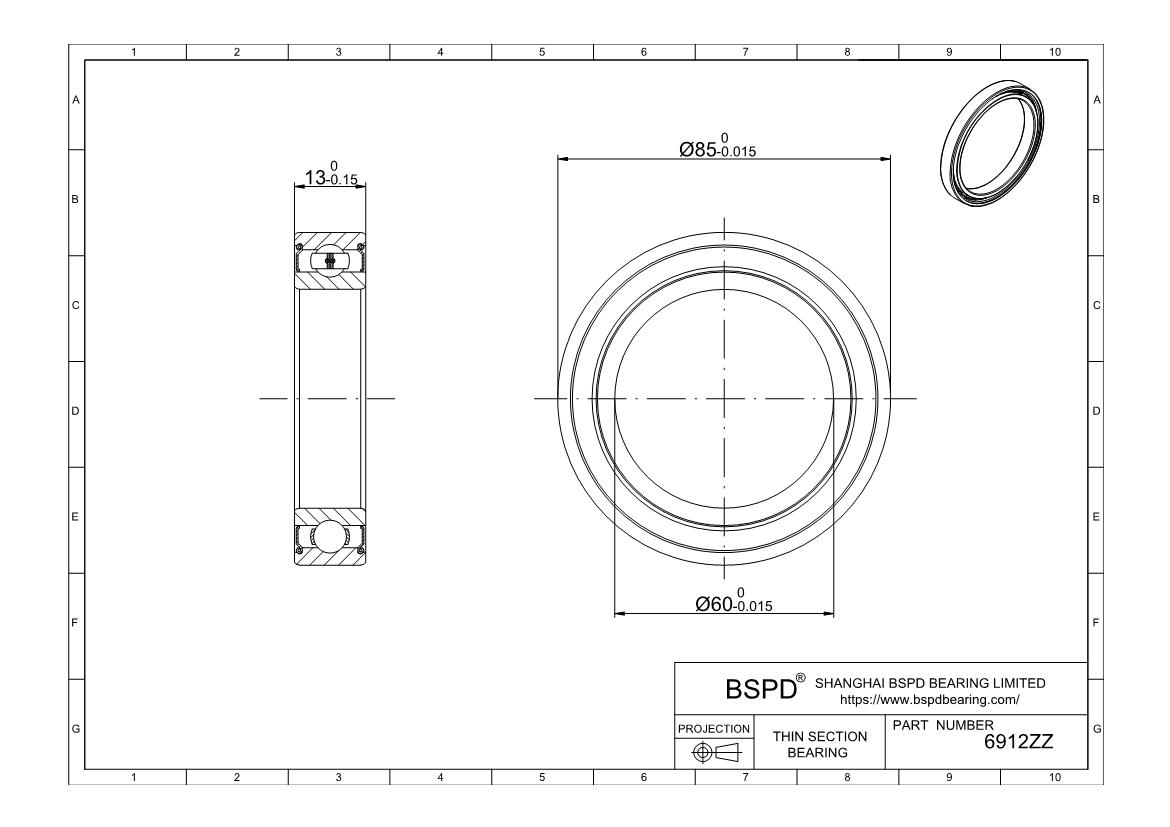

Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 85 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | S6912zz |
| For Shaft Diameter | 60mm |
| Bore Dia (d) | 60mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| For Housing ID | 85mm |
| Outer Dia (D) | 85mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width (B) | 13mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 304 Stainless Steel |
| Seals Material | 304 Stainless Steel |
| Dynamic radial (Newtons) | 18180 |
| Static radial (Newtons) | 15570 |
| Max Speed (X1000 RPM) | 8.01 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| Weight (g) | 192 |
Print PDF
Request a 3D CAD Model
