011.40.2240.001.41.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2090 mm; Outer Diameter: 2524.8 mm; Width (Thickness): 156 mm;

011.40.2240.001.41.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number011.40.2240.001.41.1502
SeriesSeries 01
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring2090 mm
Outside Diameter Of Outer Ring2524.8 mm
Internal Diameter On Outer Ring2275 mm
Height Of Overall Bearing Assembly156 mm
Height Of Inner Ring150 mm
Height Of Outer Ring117 mm
External Diameter On Inner Ring2272 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly1316 Kg
Bolt Circle In Inner Ring2145 mm
Bolt Circle In Outer Ring2375 mm
Size Of Hole In Inner Ring33 mm
Size Of Hole In Outer Ring33 mm
Number Holes In Inner Ring48
Number Holes In Outer Ring48
Diametral Pitch2480 mm
Number Of Gear Teeth155
Permissible Tooth Forces T162.7
Max Gear Tooth Load Fz325.5
Diameter Of Bearing Raceway2240 mm
Distance Between Bottom Outer Ring Inner Ring6 mm

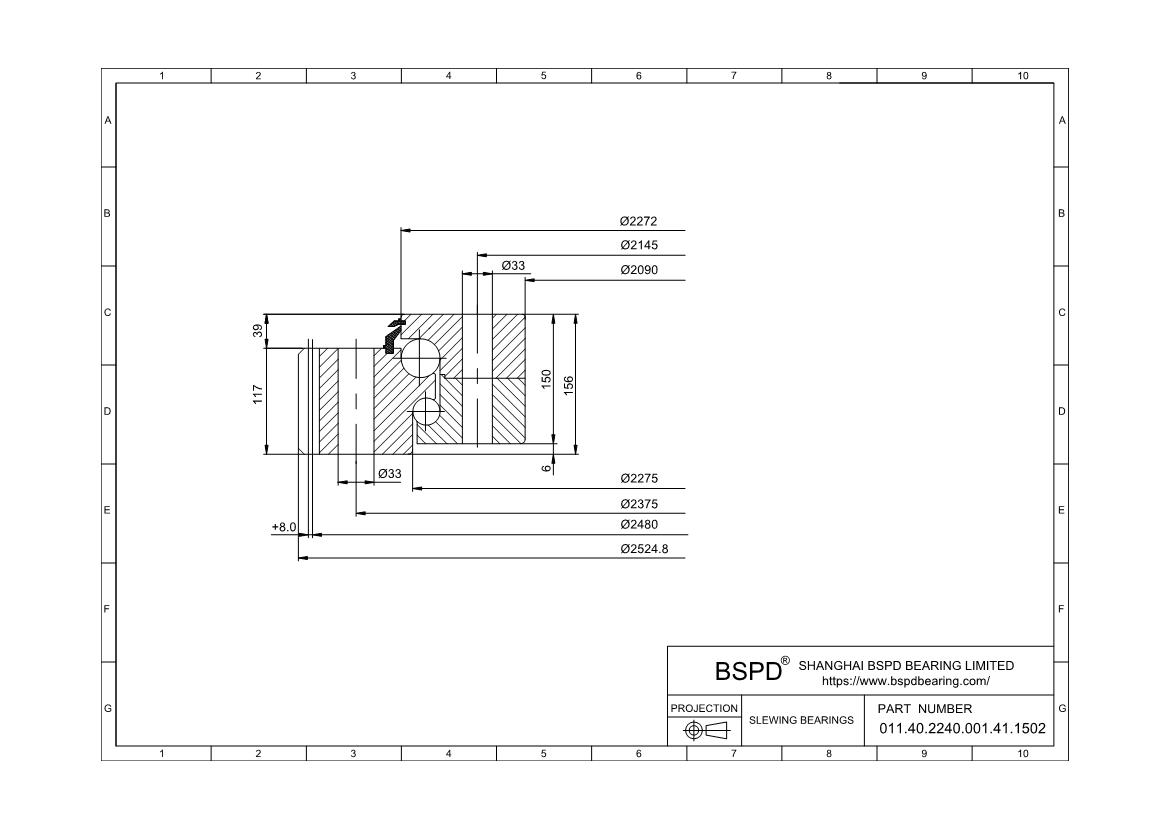

CorrespondFIG1
x·m+8
k·m–1.6
K39 mm
n14
Bolt Size (M)30 mm
M16
F117 mm
RoHSCompliant
011.40.2240.001.41.1502
