KH-225P Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 18.5"; Outer Diameter: 26.7"; Width (Thickness): ;

KH-225P
Slewing Bearings of similar size
Product Attributes
Specifications
Part Number KH-225P
Bearing Types Slewing Ring Bearing
Maximum Allowable Gear Tooth Load (Fz) -
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 26.700" | 678.18mm
Outside Diameter of Outer Ring (Do) Tolerance ±.050" | ±1.27mm
Inside Diameter of Inner Ring (di) 18.500" | 469.9mm
Inside Diameter of Inner Ring (di) Tolerance ±.050" | ±1.27mm
Internal Diameter on Outer Ring (Di) 22.750" | 577.85mm
Internal Diameter on Outer Ring (Di) Tolerance *
External Diameter on Inner Ring (do) 22.250" | 565.15mm
External Diameter on Inner Ring (do) Tolerance *
Approximate Weight (G) 150lbs | 68.039KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 24.500" | 622.3mm

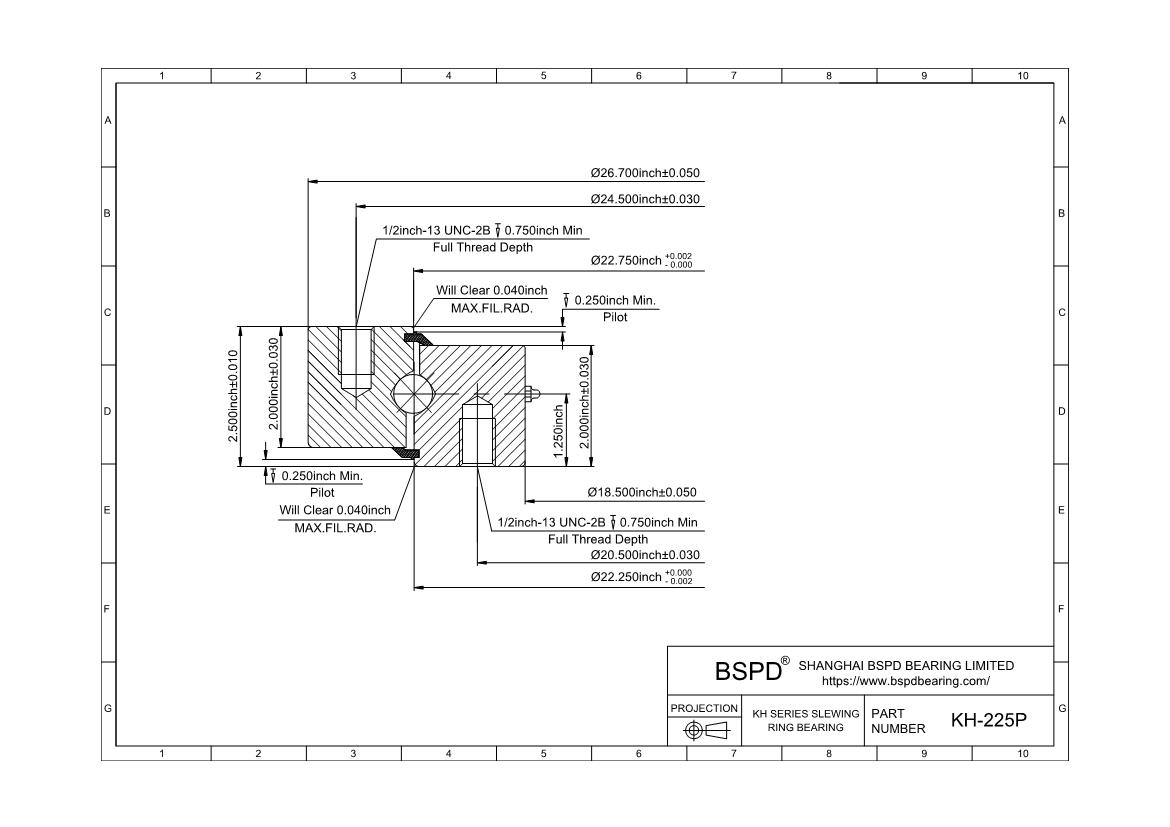

Size of Hole in Outer Ring See the picture on the right
Number Holes in Outer Ring (no) 18
Bolt Circle in Inner Ring (Li) 20.500" | 520.7mm
Size of Hole in Inner Ring See the picture on the right
Number Holes in Inner Ring (ni) 18
Gear Data
Pressure Angle of Gear Teeth (α) -
Pitch diameter of gear(D2) -
Face width of gear teeth(b2) -
Number of gear teeth(z2) -
Dynamic Capacity
Axial Dynamic Capacity 40,000
Moment Dynamic Capacity 30,500
Intermittent Capacity
Axial Intermittent Capacity 115,200
Moment Intermittent Capacity 56,000
