KH-275P
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 23.5"； Outer Diameter: 31.7"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | KH-275P |
| Bearing Types | Slewing Ring Bearing |
| Maximum Allowable Gear Tooth Load (Fz) | - |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 31.700" | 805.18mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.050" | ±1.27mm |
| Inside Diameter of Inner Ring (di) | 23.500" | 596.9mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.050" | ±1.27mm |
| Internal Diameter on Outer Ring (Di) | 27.750" | 704.85mm |
| Internal Diameter on Outer Ring (Di) Tolerance | * |
| External Diameter on Inner Ring (do) | 27.750" | 704.85mm |
| External Diameter on Inner Ring (do) Tolerance | * |
| Approximate Weight (G) | 185lbs | 83.914KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 29.500" | 749.3mm |

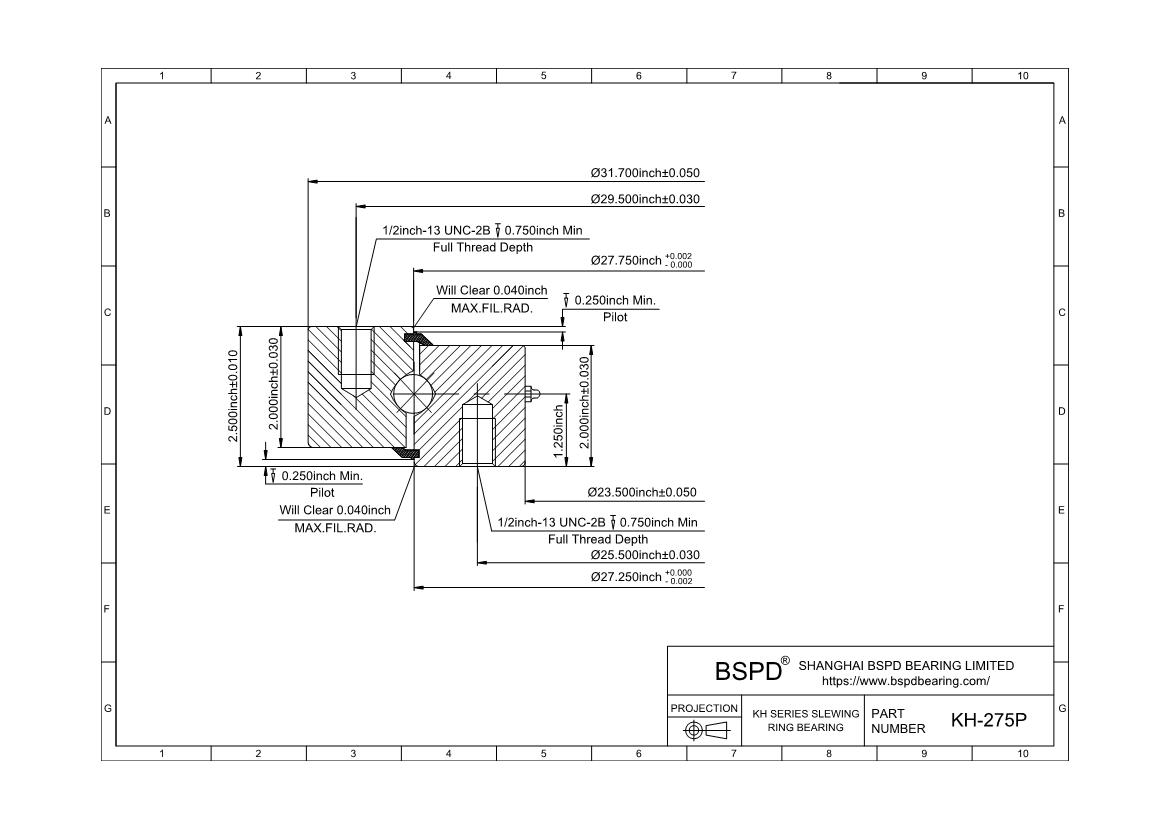

| Size of Hole in Outer Ring | See the picture on the right |
| Number Holes in Outer Ring (no) | 24 |
| Bolt Circle in Inner Ring (Li) | 25.500" | 647.7mm |
| Size of Hole in Inner Ring | See the picture on the right |
| Number Holes in Inner Ring (ni) | 24 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Pitch diameter of gear(D2) | - |
| Face width of gear teeth(b2) | - |
| Number of gear teeth(z2) | - |
| Dynamic Capacity | |
| Axial Dynamic Capacity | 43,000 |
| Moment Dynamic Capacity | 39,600 |
| Intermittent Capacity | |
| Axial Intermittent Capacity | 142,000 |
| Moment Intermittent Capacity | 75,000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings KH-275P ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
