KH-166P Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 12.75"; Outer Diameter: 20.5"; Width (Thickness): ;

KH-166P
Slewing Bearings of similar size
same outer diameter
same width
Product Attributes
Specifications
Part Number KH-166P
Bearing Types Slewing Ring Bearing
Maximum Allowable Gear Tooth Load (Fz) -
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 20.500" | 520.7mm
Outside Diameter of Outer Ring (Do) Tolerance ±.050" | ±1.27mm
Inside Diameter of Inner Ring (di) 12.750" | 323.85mm
Inside Diameter of Inner Ring (di) Tolerance ±.050" | ±1.27mm
Internal Diameter on Outer Ring (Di) 16.875" | 428.63mm
Internal Diameter on Outer Ring (Di) Tolerance *
External Diameter on Inner Ring (do) 16.375" | 415.93mm
External Diameter on Inner Ring (do) Tolerance *
Approximate Weight (G) 105lbs | 47.627KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 18.875" | 479.43mm

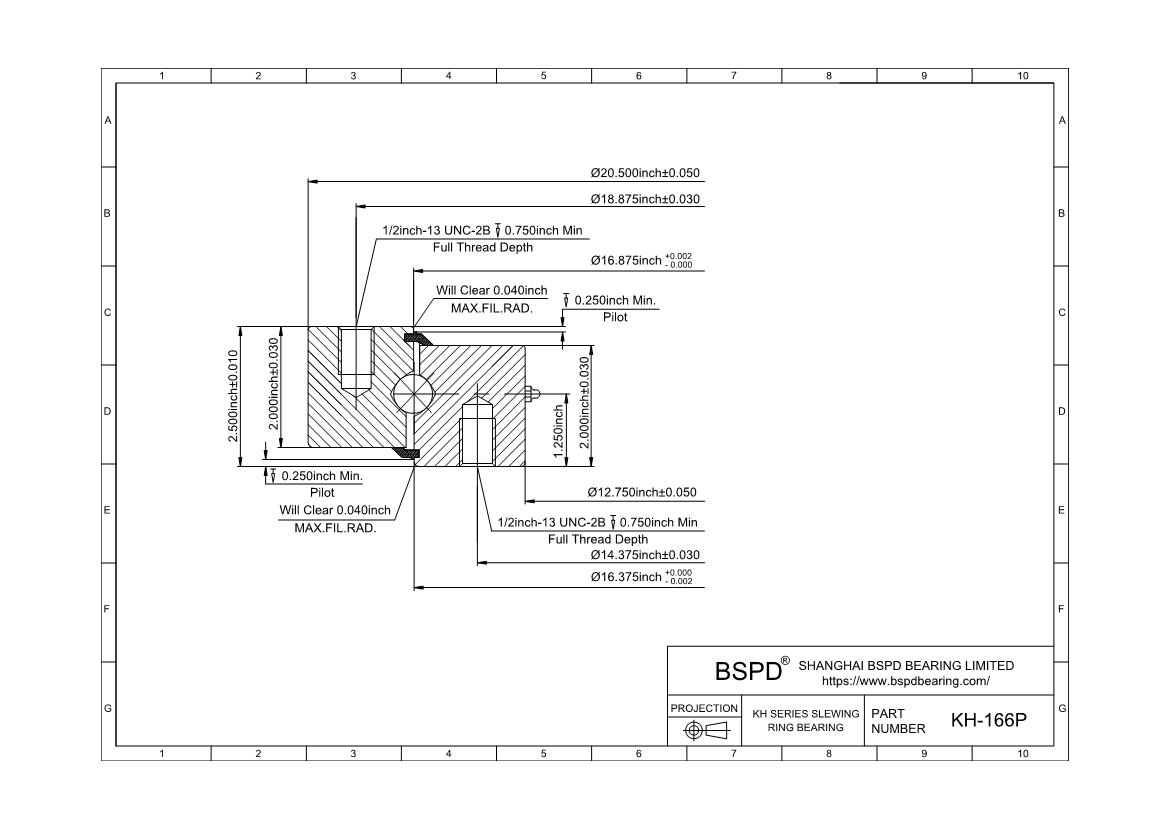

Size of Hole in Outer Ring See the picture on the right
Number Holes in Outer Ring (no) 20
Bolt Circle in Inner Ring (Li) 14.375" | 365.13mm
Size of Hole in Inner Ring See the picture on the right
Number Holes in Inner Ring (ni) 20
Gear Data
Pressure Angle of Gear Teeth (α) -
Pitch diameter of gear(D2) -
Face width of gear teeth(b2) -
Number of gear teeth(z2) -
Dynamic Capacity
Axial Dynamic Capacity 36,000
Moment Dynamic Capacity 20,500
Intermittent Capacity
Axial Intermittent Capacity 82,800
Moment Intermittent Capacity 45,200
KH-166P
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
