011.40.3150.001.41.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3000 mm; Outer Diameter: 3456 mm; Width (Thickness): 156 mm;

011.40.3150.001.41.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number011.40.3150.001.41.1502
SeriesSeries 01
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring3000 mm
Outside Diameter Of Outer Ring3456.0 mm
Internal Diameter On Outer Ring3185 mm
Height Of Overall Bearing Assembly156 mm
Height Of Inner Ring150 mm
Height Of Outer Ring117 mm
External Diameter On Inner Ring3182 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly1969 Kg
Bolt Circle In Inner Ring3055 mm
Bolt Circle In Outer Ring3285 mm
Size Of Hole In Inner Ring33 mm
Size Of Hole In Outer Ring33 mm
Number Holes In Inner Ring60
Number Holes In Outer Ring60
Diametral Pitch3400 mm
Number Of Gear Teeth170
Diameter Of Bearing Raceway3150 mm
Distance Between Bottom Outer Ring Inner Ring6 mm

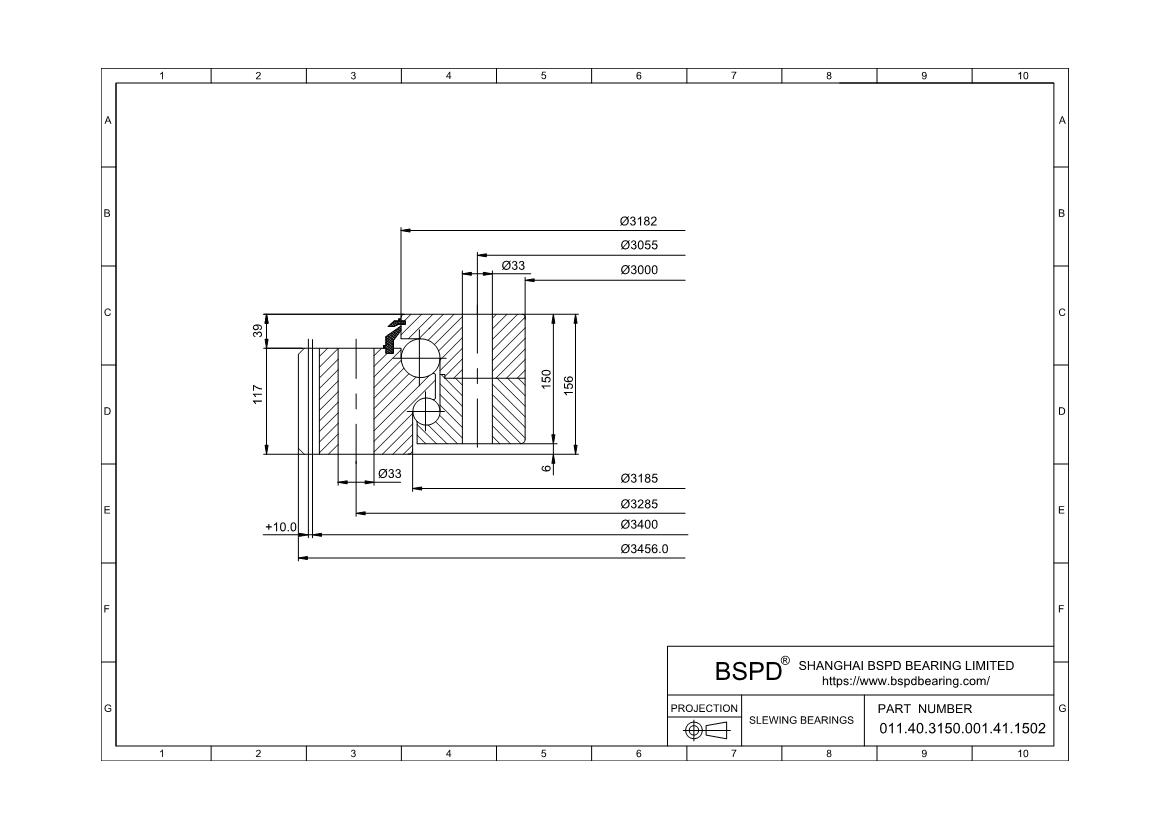

CorrespondFIG1
x·m+10
k·m–2.0
K39 mm
n16
Bolt Size (M)30 mm
M20
F117 mm
RoHSCompliant
011.40.3150.001.41.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
