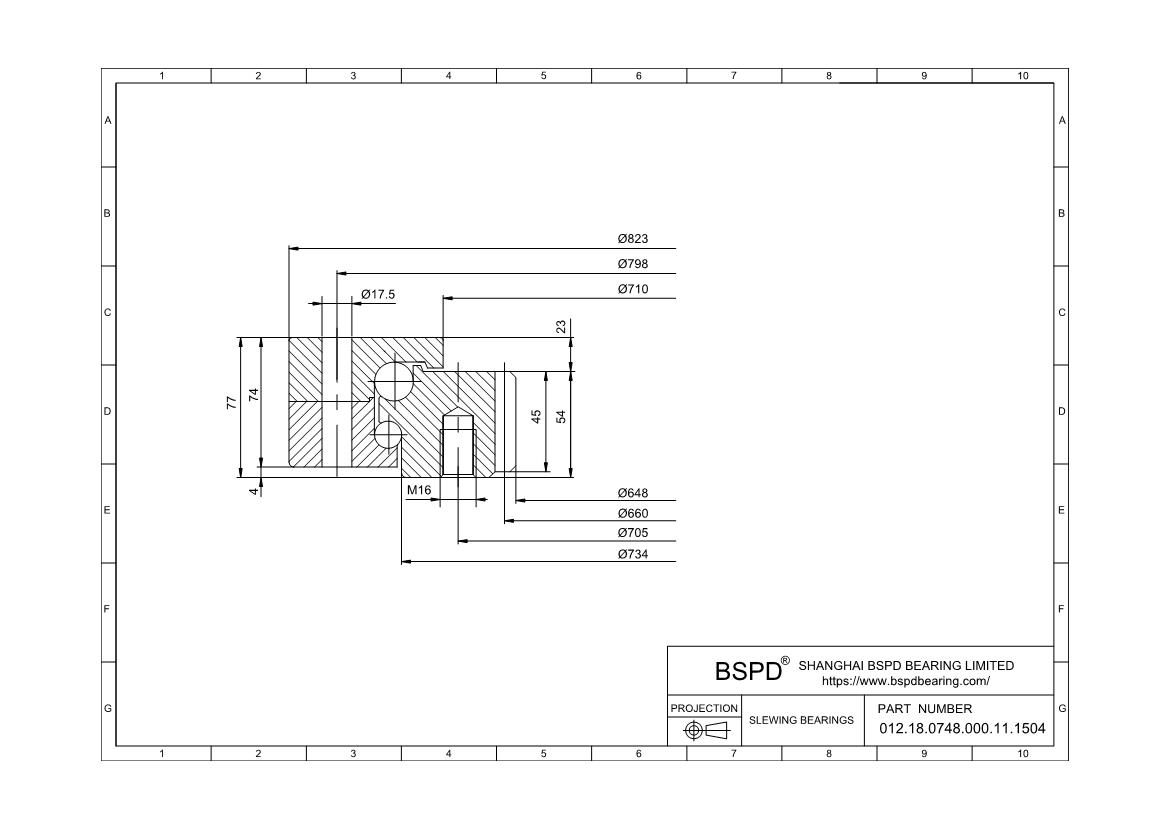

012.18.0748.000.11.1504 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 648 mm; Outer Diameter: 823 mm; Width (Thickness): 77 mm;

012.18.0748.000.11.1504
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number012.18.0748.000.11.1504
SeriesSeries 01
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring648 mm
Outside Diameter Of Outer Ring734 mm
Internal Diameter On Outer Ring823 mm
Height Of Overall Bearing Assembly77 mm
Height Of Inner Ring74 mm
Height Of Outer Ring54 mm
External Diameter On Inner Ring710 mm
External Diameter On Outer Ring678 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly90 Kg
Bolt Circle In Outer Ring798 mm
Size Of Hole In Inner Ring17.5 mm
Size Of Hole In Outer Ring17.5 mm
Number Holes In Inner Ring24
Number Holes In Outer Ring24
Diametral Pitch660 mm
Number Of Gear Teeth110
Tooth Neck Height (Hu)9 mm
Permissible Tooth Forces T15.20
Max Gear Tooth Load Fz30.40
Diameter Of Bearing Raceway748 mm
Distance Between Bottom Outer Ring Inner Ring3 mm
CorrespondFIG2
x·m–0.0
k·m
K23 mm
F19734 mm
n14
Bolt Size (M)16 mm
T30
M6
F45 mm
RoHSCompliant
012.18.0748.000.11.1504
