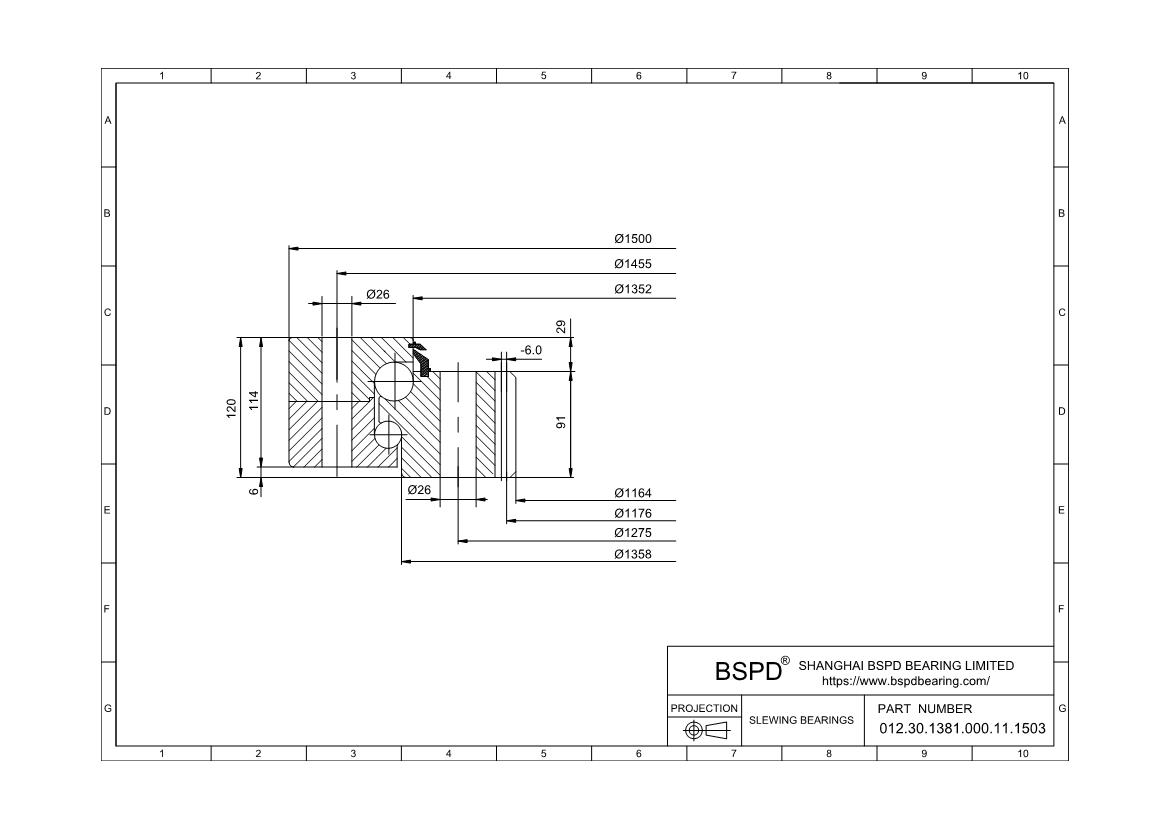

012.30.1381.000.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1164 mm； Outer Diameter: 1500 mm； Width (Thickness): 120 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 012.30.1381.000.11.1503 |
| Series | Series 01 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1164 mm |
| Outside Diameter Of Outer Ring | 1358 mm |
| Internal Diameter On Outer Ring | 1500 mm |
| Height Of Overall Bearing Assembly | 120 mm |
| Height Of Inner Ring | 114 mm |
| Height Of Outer Ring | 91 mm |
| External Diameter On Inner Ring | 1352 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 474 Kg |
| Bolt Circle In Inner Ring | 1275 mm |
| Bolt Circle In Outer Ring | 1455 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1176 mm |
| Number Of Gear Teeth | 98 |
| Permissible Tooth Forces T | 68.5 |
| Max Gear Tooth Load Fz | 137.0 |
| Diameter Of Bearing Raceway | 1381 mm |
| Distance Between Bottom Outer Ring Inner Ring | 6 mm |
| Correspond | FIG2 |
| x·m | –6.0 |
| K | 29 mm |
| F19 | 1358 mm |
| n1 | 3 |
| Bolt Size (M) | 24 mm |
| M | 12 |
| F | 91 mm |
| RoHS | Compliant |
