012.35.2500.001.41.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2254 mm; Outer Diameter: 2630 mm; Width (Thickness): 138 mm;

012.35.2500.001.41.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number012.35.2500.001.41.1503
SeriesSeries 01
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring2254 mm
Outside Diameter Of Outer Ring2471 mm
Internal Diameter On Outer Ring2630 mm
Height Of Overall Bearing Assembly138 mm
Height Of Inner Ring132 mm
Height Of Outer Ring104 mm
External Diameter On Inner Ring2466 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly1112 Kg
Bolt Circle In Inner Ring2385 mm
Bolt Circle In Outer Ring2585 mm
Size Of Hole In Inner Ring26 mm
Size Of Hole In Outer Ring26 mm
Number Holes In Inner Ring66
Number Holes In Outer Ring66
Diametral Pitch2268 mm
Number Of Gear Teeth162
Permissible Tooth Forces T133.6
Max Gear Tooth Load Fz267.2
Diameter Of Bearing Raceway2500 mm
Distance Between Bottom Outer Ring Inner Ring6 mm

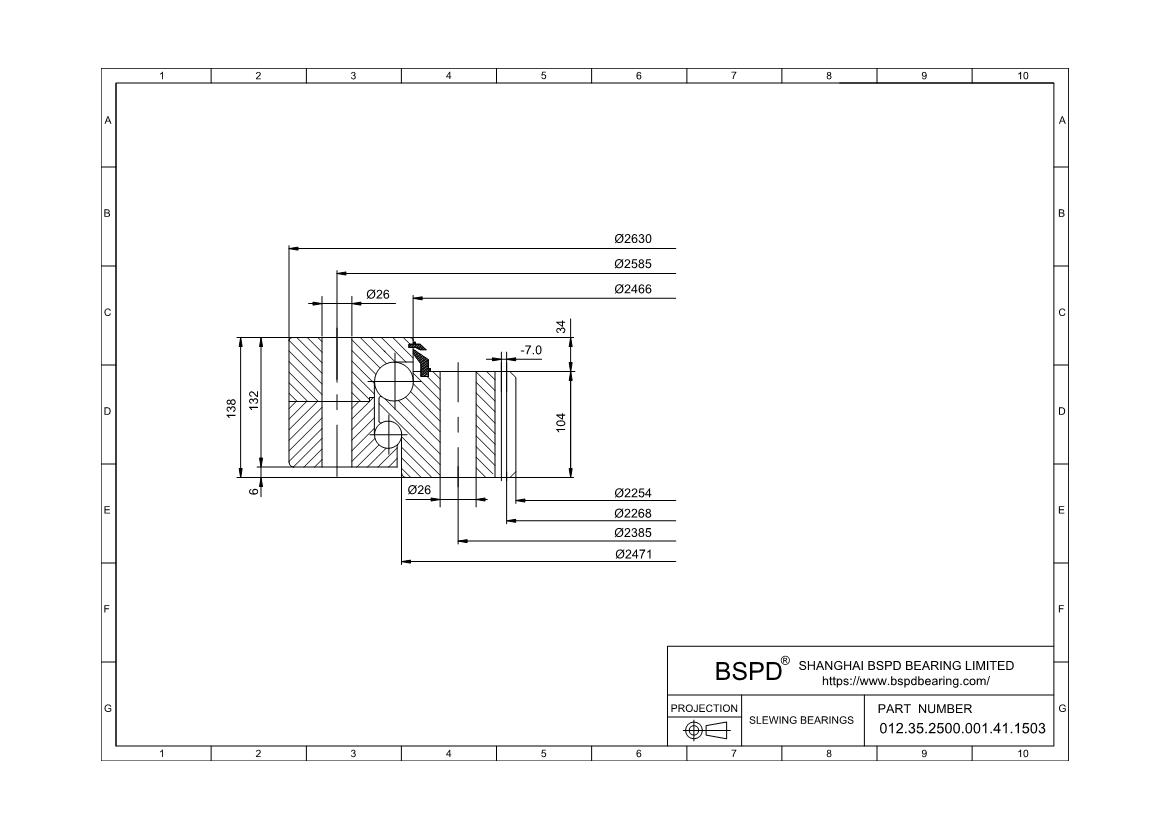

CorrespondFIG2
x·m–7.0
K34 mm
F192471 mm
n16
Bolt Size (M)24 mm
M14
F104 mm
RoHSCompliant
012.35.2500.001.41.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 012.35.2500.001.41.1503 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
