012.45.3400.101.49.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3080 mm; Outer Diameter: 3560 mm; Width (Thickness): 175 mm;

012.45.3400.101.49.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number012.45.3400.101.49.1502
SeriesSeries 01
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring3080 mm
Outside Diameter Of Outer Ring3358 mm
Internal Diameter On Outer Ring3560 mm
Height Of Overall Bearing Assembly175 mm
Height Of Inner Ring168 mm
Height Of Outer Ring132 mm
External Diameter On Inner Ring3363 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly2435 Kg
Bolt Circle In Inner Ring3260 mm
Bolt Circle In Outer Ring3505 mm
Size Of Hole In Inner Ring33 mm
Size Of Hole In Outer Ring33 mm
Number Holes In Inner Ring72
Number Holes In Outer Ring72
Diametral Pitch3100 mm
Number Of Gear Teeth155
Permissible Tooth Forces T229.5
Max Gear Tooth Load Fz459.1
Diameter Of Bearing Raceway3400 mm
Distance Between Bottom Outer Ring Inner Ring7 mm

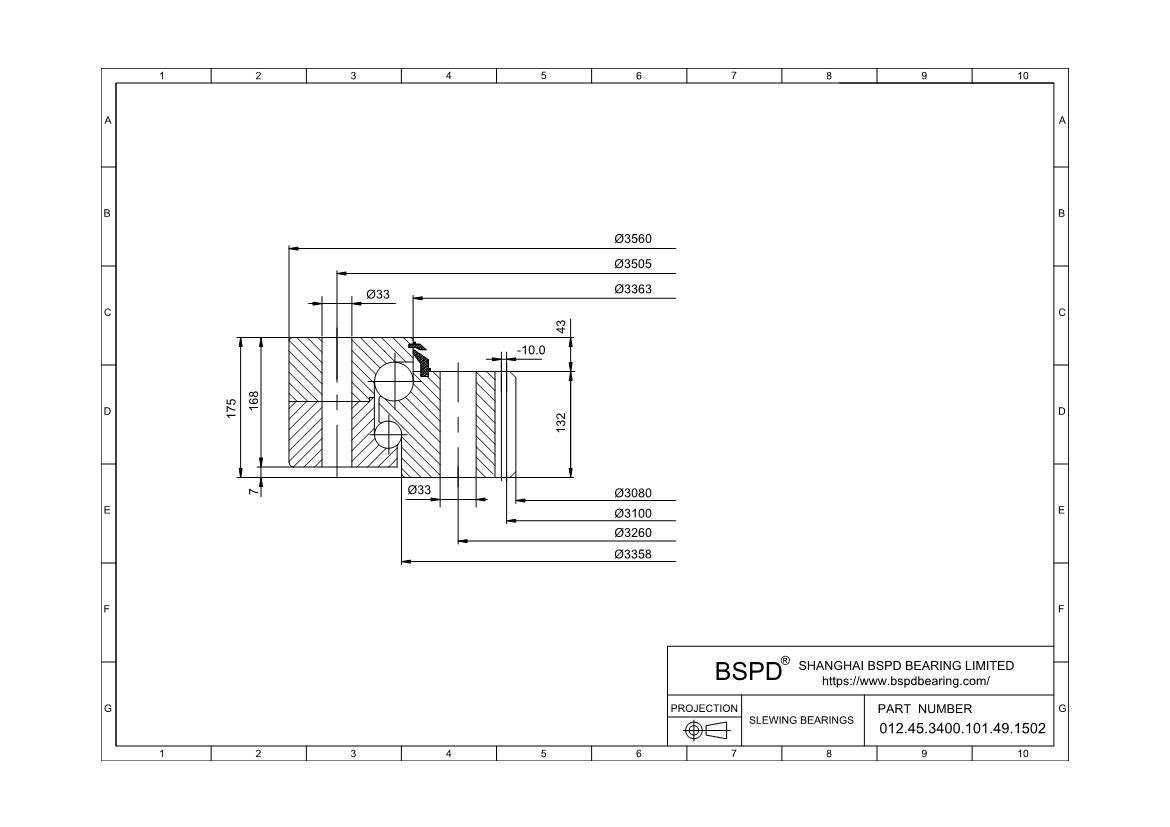

CorrespondFIG2
x·m–10.0
K43 mm
F193358 mm
n16
Bolt Size (M)30 mm
M20
F132 mm
RoHSCompliant
012.45.3400.101.49.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
