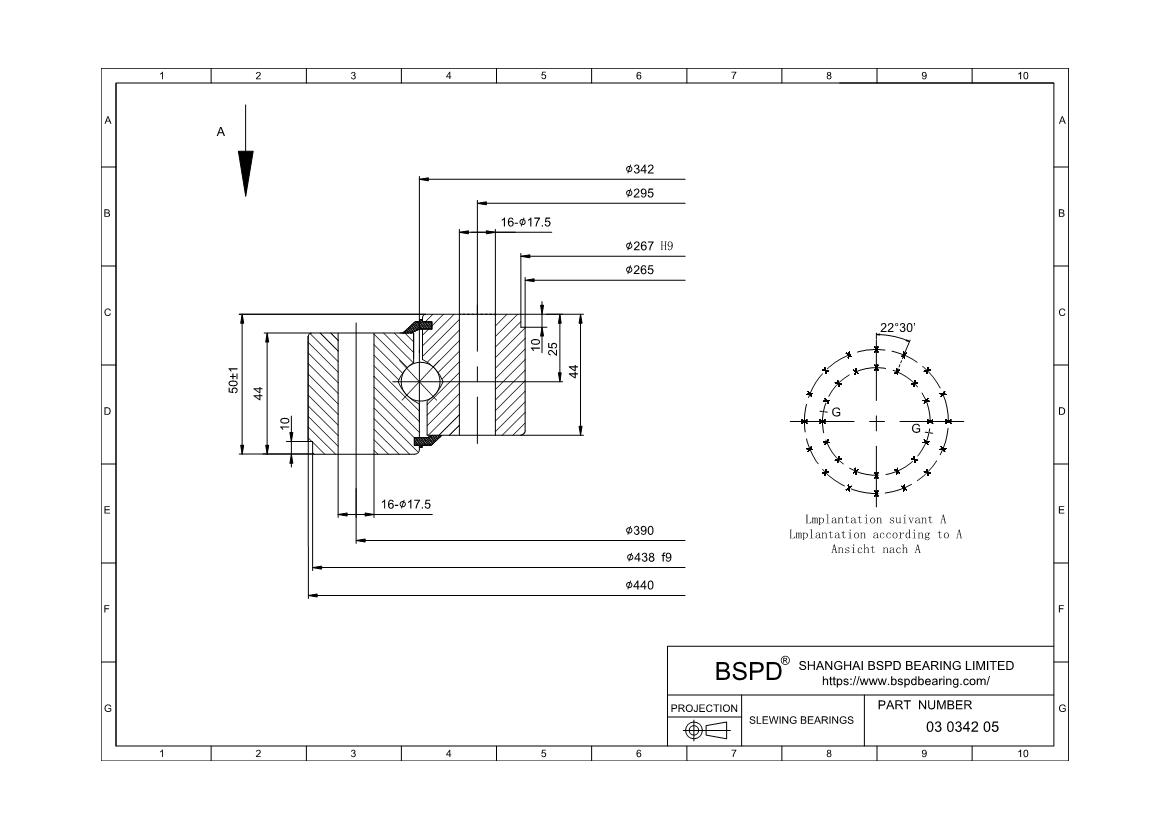

03 0342 05
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 265.0 mm； Outer Diameter: 440.0 mm； Width (Thickness): 50 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 03 0342 05 |
| Gear | Without gear |
| Geometry | |
| External Diameter (DR) | 440 |
| Internal Diameter (di) | 265 |
| Height(H) | 50 |
| Weight(kg) | 29 |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 390 |
| Number Holes in Outer Ring (no) | 16 |
| Bolt Circle in Inner Ring (Li) | 295 |
| Number Holes in Inner Ring (ni) | 16 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 03 0342 05 ? Metric Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
