060.20.1094.500.01.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1022 mm; Outer Diameter: 1166 mm; Width (Thickness): 56 mm;

060.20.1094.500.01.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number060.20.1094.500.01.1503
SeriesSeries 06
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1022 mm
Outside Diameter Of Outer Ring1166 mm
Internal Diameter On Outer Ring1095.5 mm
Height Of Overall Bearing Assembly56 mm
Height Of Inner Ring45.5 mm
Height Of Outer Ring45.5 mm
External Diameter On Inner Ring1092.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly77 Kg
Bolt Circle In Inner Ring1048 mm
Bolt Circle In Outer Ring1140 mm
Size Of Hole In Inner Ring13.5 mm
Size Of Hole In Outer Ring13.5 mm
Number Holes In Inner Ring48
Number Holes In Outer Ring48
Diameter Of Bearing Raceway1094 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm

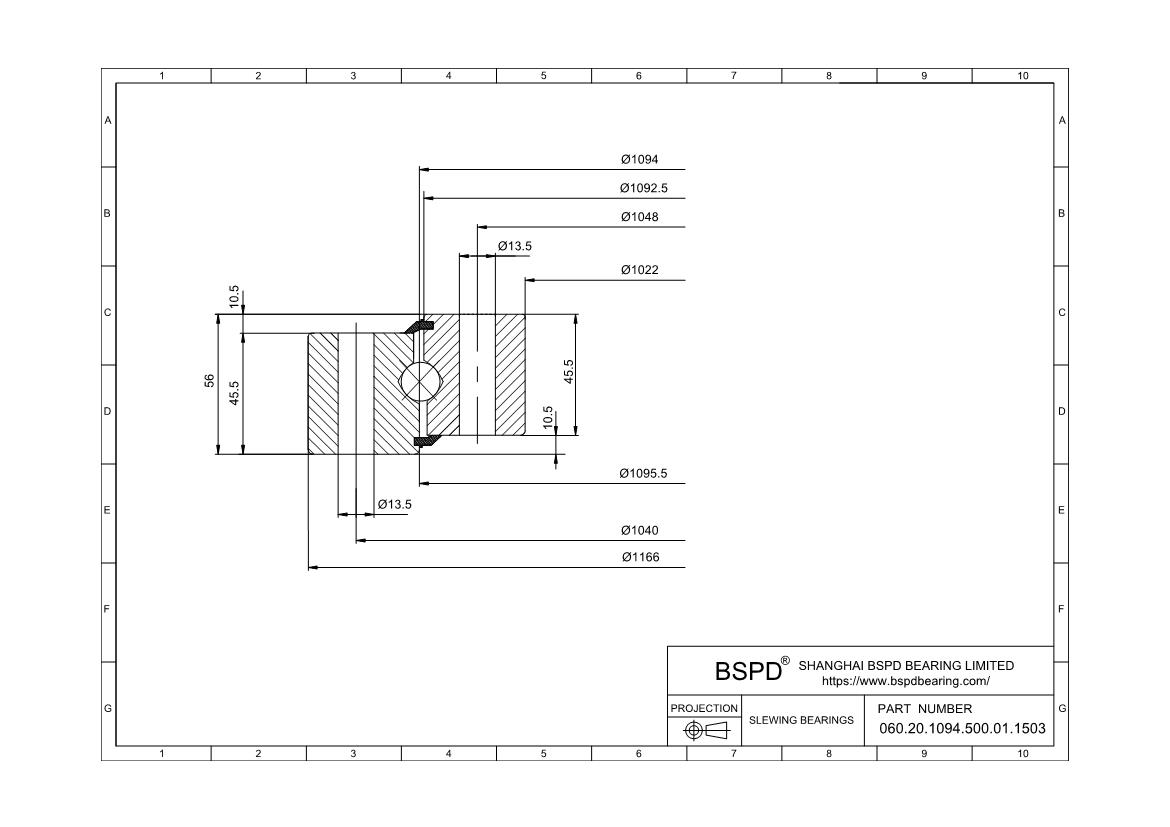

CorrespondFIG1
K10.5 mm
Bolt Size (M)12 mm
RoHSCompliant
060.20.1094.500.01.1503
