060.22.0370.301.11.1504 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 289 mm； Outer Diameter: 456 mm； Width (Thickness): 59 mm;

060.22.0370.301.11.1504
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number060.22.0370.301.11.1504
SeriesSeries 06
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring289 mm
Outside Diameter Of Outer Ring456 mm
Internal Diameter On Outer Ring369 mm
Height Of Overall Bearing Assembly59 mm
Height Of Inner Ring50 mm
Height Of Outer Ring50 mm
External Diameter On Inner Ring371 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly35 Kg
Bolt Circle In Inner Ring320 mm
Bolt Circle In Outer Ring425 mm
Size Of Hole In Inner Ring17.5 mm
Size Of Hole In Outer Ring17.5 mm
Number Holes In Inner Ring16
Number Holes In Outer Ring16
Diameter Of Bearing Raceway370 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

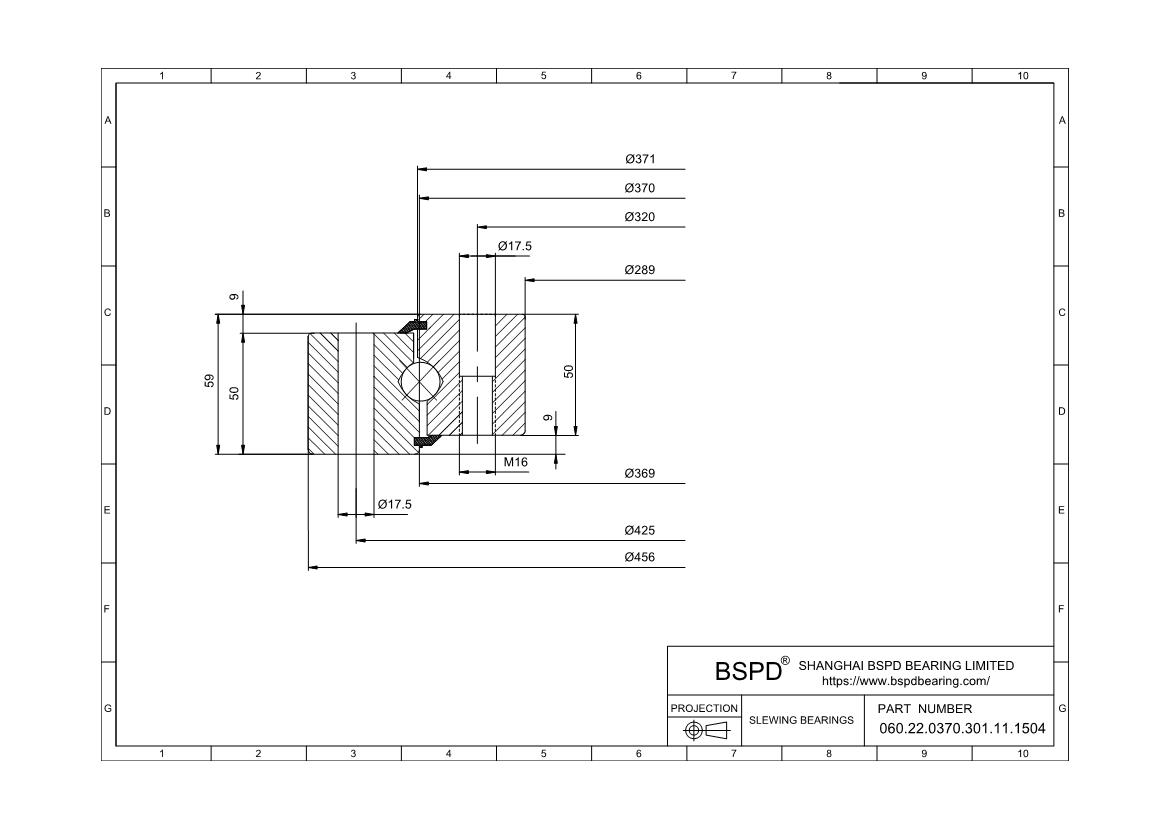

CorrespondFIG3
K9 mm
n14
Bolt Size (M)16 mm
RoHSCompliant
060.22.0370.301.11.1504
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
