060.25.1255.500.11.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1155 mm; Outer Diameter: 1355 mm; Width (Thickness): 63 mm;

060.25.1255.500.11.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number060.25.1255.500.11.1503
SeriesSeries 06
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1155 mm
Outside Diameter Of Outer Ring1355 mm
Internal Diameter On Outer Ring1254 mm
Height Of Overall Bearing Assembly63 mm
Height Of Inner Ring54 mm
Height Of Outer Ring54 mm
External Diameter On Inner Ring1256 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly148 Kg
Bolt Circle In Inner Ring1195 mm
Bolt Circle In Outer Ring1315 mm
Size Of Hole In Inner Ring22 mm
Size Of Hole In Outer Ring22 mm
Number Holes In Inner Ring42
Number Holes In Outer Ring42
Diameter Of Bearing Raceway1255 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

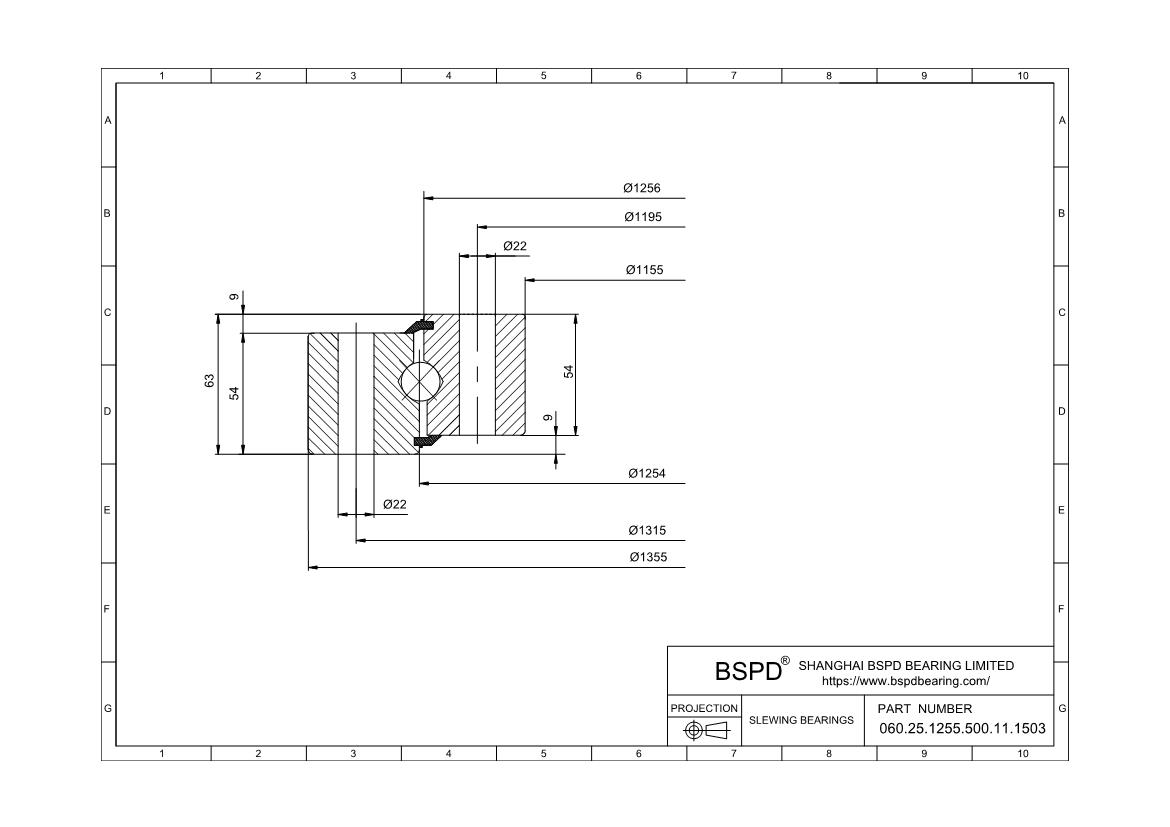

CorrespondFIG1
K9 mm
n16
Bolt Size (M)20 mm
RoHSCompliant
060.25.1255.500.11.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
