060.25.1455.575.11.1403 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1357 mm; Outer Diameter: 1553 mm; Width (Thickness): 63 mm;

060.25.1455.575.11.1403
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number060.25.1455.575.11.1403
SeriesSeries 06
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1357 mm
Outside Diameter Of Outer Ring1553 mm
Internal Diameter On Outer Ring1454 mm
Height Of Overall Bearing Assembly63 mm
Height Of Inner Ring54 mm
Height Of Outer Ring54 mm
External Diameter On Inner Ring1456 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly171 Kg
Bolt Circle In Inner Ring1395 mm
Bolt Circle In Outer Ring1515 mm
Size Of Hole In Inner Ring22 mm
Size Of Hole In Outer Ring22 mm
Number Holes In Inner Ring48
Number Holes In Outer Ring48
Diameter Of Bearing Raceway1455 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

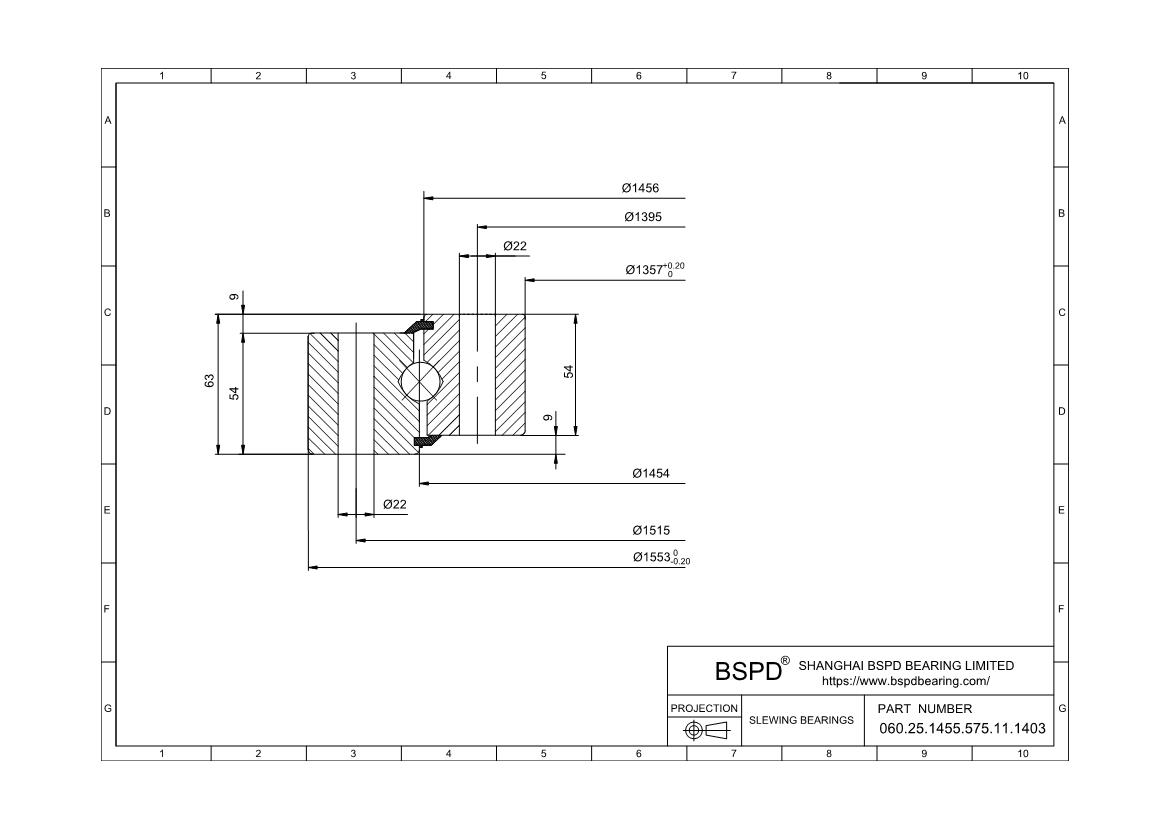

CorrespondFIG1
K9 mm
n14
Bolt Size (M)20 mm
RoHSCompliant
060.25.1455.575.11.1403
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 060.25.1455.575.11.1403 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
