061.20.0450.100.11.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 369 mm; Outer Diameter: 554.8 mm; Width (Thickness): 55 mm;

061.20.0450.100.11.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number061.20.0450.100.11.1503
SeriesSeries 06
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring369 mm
Outside Diameter Of Outer Ring554.8 mm
Internal Diameter On Outer Ring449 mm
Height Of Overall Bearing Assembly55 mm
Height Of Inner Ring46 mm
Height Of Outer Ring46 mm
External Diameter On Inner Ring451 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly39 Kg
Bolt Circle In Inner Ring400 mm
Bolt Circle In Outer Ring500 mm
Size Of Hole In Inner Ring15.5 mm
Size Of Hole In Outer Ring15.5 mm
Number Holes In Inner Ring16
Number Holes In Outer Ring16
Diametral Pitch540 mm
Number Of Gear Teeth108
Permissible Tooth Forces T14.13
Max Gear Tooth Load Fz28.26
Diameter Of Bearing Raceway450 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

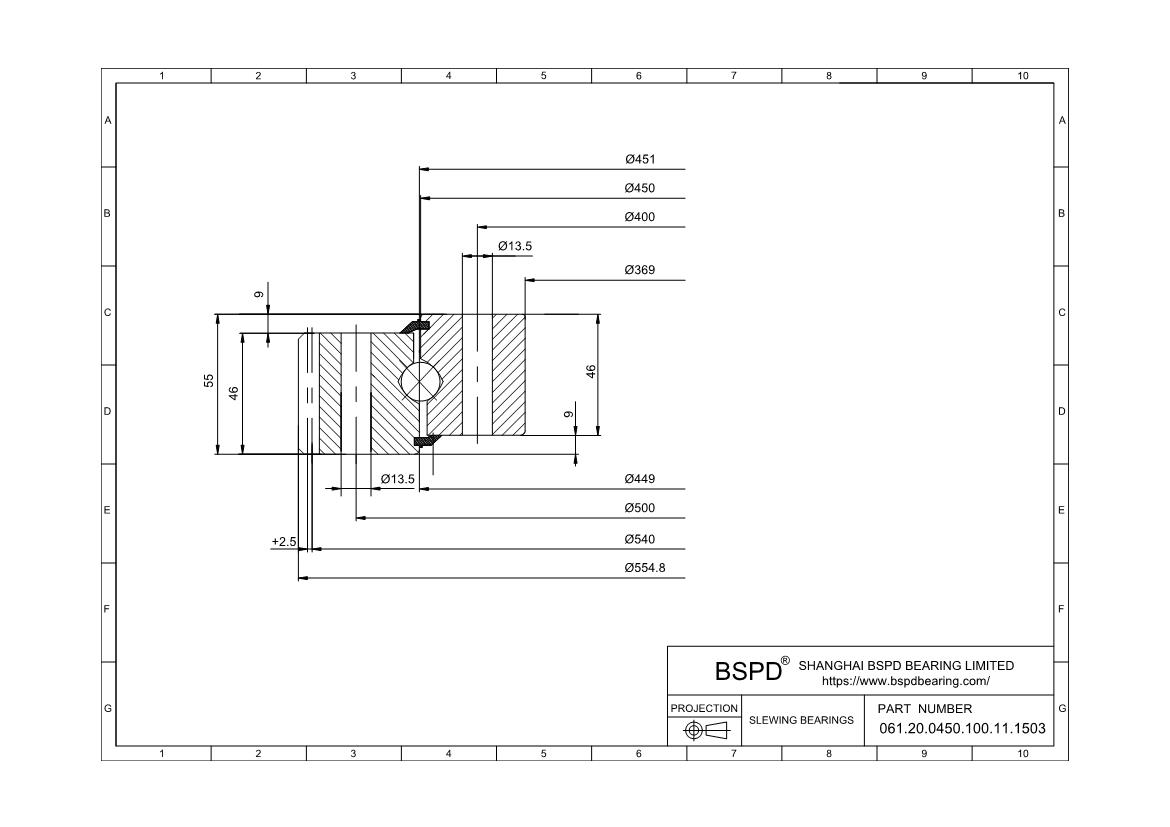

CorrespondFIG1
x·m+2.5
k·m-0.5
K9 mm
n12
Bolt Size (M)14 mm
M5
F45 mm
RoHSCompliant
061.20.0450.100.11.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
