061.20.0560.100.11.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 479 mm; Outer Diameter: 670.8 mm; Width (Thickness): 55 mm;

061.20.0560.100.11.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number061.20.0560.100.11.1503
SeriesSeries 06
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring479 mm
Outside Diameter Of Outer Ring670.8 mm
Internal Diameter On Outer Ring559 mm
Height Of Overall Bearing Assembly55 mm
Height Of Inner Ring46 mm
Height Of Outer Ring46 mm
External Diameter On Inner Ring561 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly53 Kg
Bolt Circle In Inner Ring510 mm
Bolt Circle In Outer Ring610 mm
Size Of Hole In Inner Ring15.5 mm
Size Of Hole In Outer Ring15.5 mm
Number Holes In Inner Ring20
Number Holes In Outer Ring20
Diametral Pitch654 mm
Number Of Gear Teeth109
Permissible Tooth Forces T16.96
Max Gear Tooth Load Fz33.91
Diameter Of Bearing Raceway560 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

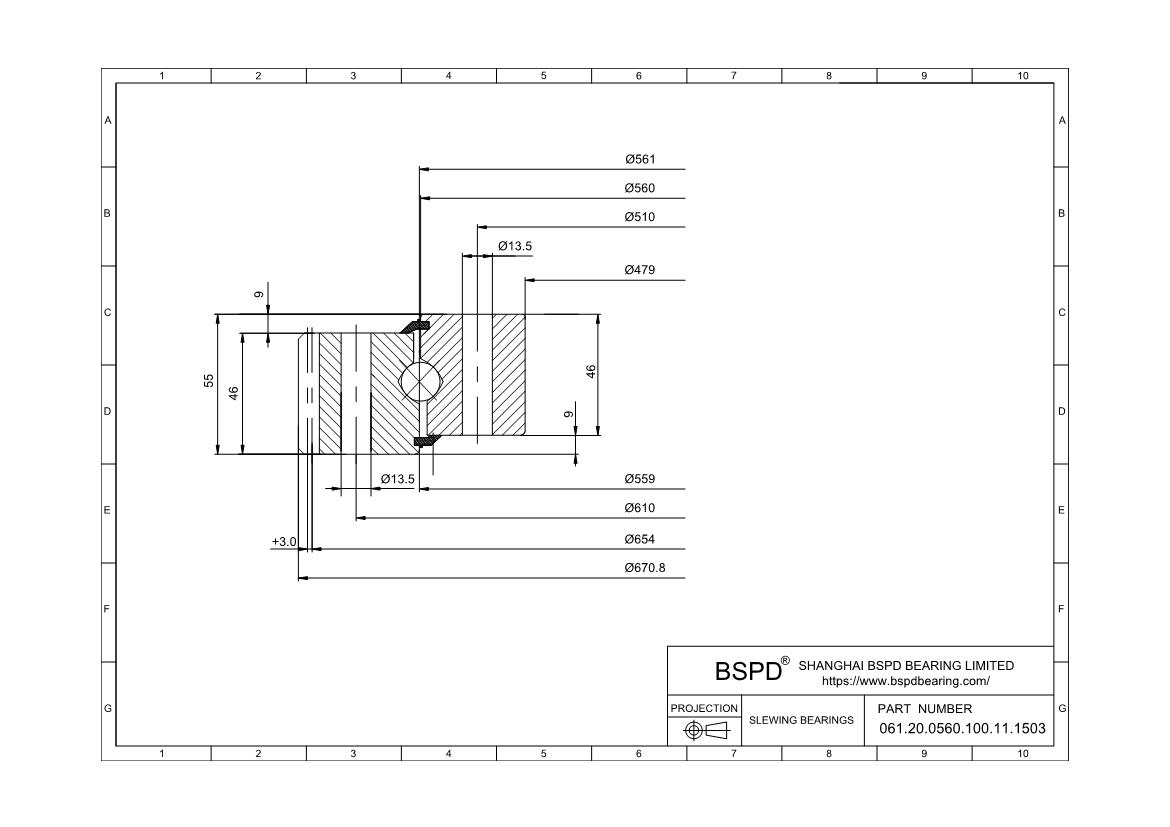

CorrespondFIG1
x·m+3.0
k·m-0.6
K9 mm
n14
Bolt Size (M)14 mm
M6
F45 mm
RoHSCompliant
061.20.0560.100.11.1503
