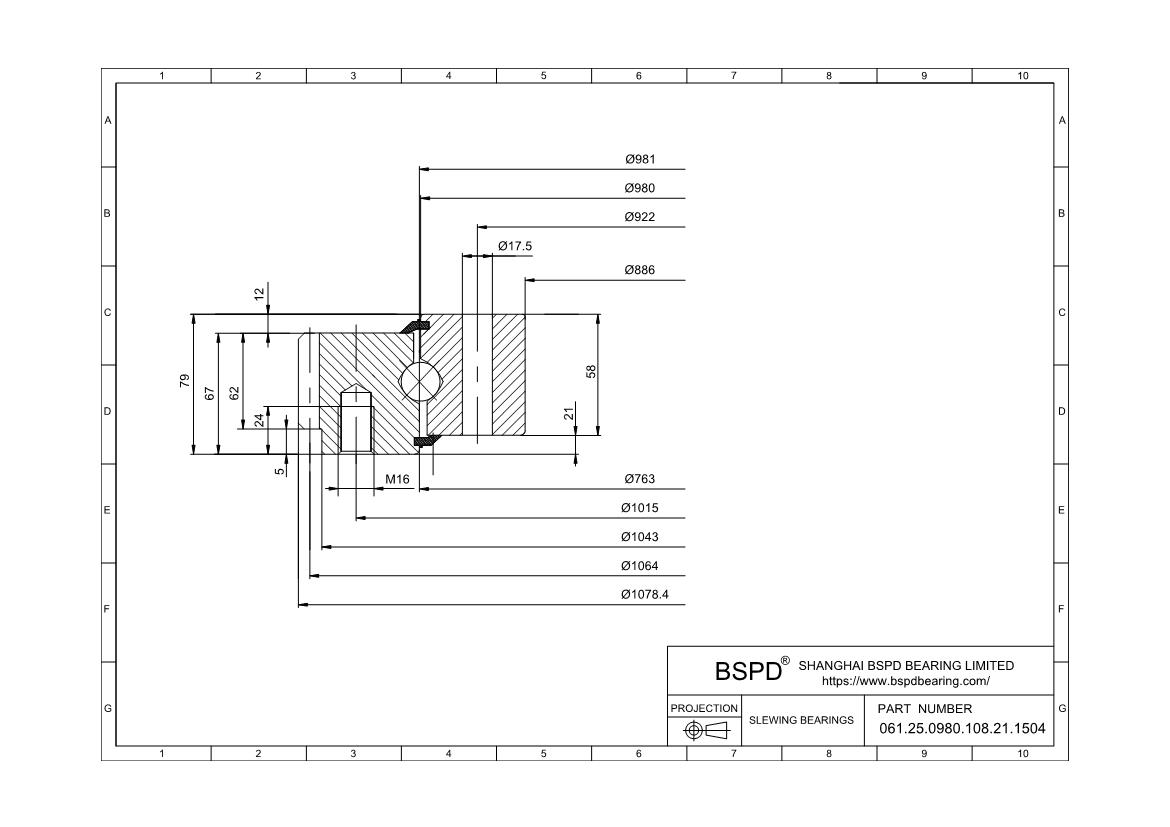

061.25.0980.108.21.1504 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 886 mm; Outer Diameter: 1078.4 mm; Width (Thickness): 79 mm;

061.25.0980.108.21.1504
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number061.25.0980.108.21.1504
SeriesSeries 06
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring886 mm
Outside Diameter Of Outer Ring1078.4 mm
Internal Diameter On Outer Ring979 mm
Height Of Overall Bearing Assembly79 mm
Height Of Inner Ring58 mm
Height Of Outer Ring67 mm
External Diameter On Inner Ring981 mm
External Diameter On Outer Ring1042 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly123 Kg
Bolt Circle In Inner Ring922 mm
Bolt Circle In Outer Ring1015 mm
Size Of Hole In Inner Ring17.5 mm
Size Of Hole In Outer Ring17.5 mm
Number Holes In Inner Ring30
Number Holes In Outer Ring30
Diametral Pitch1064 mm
Number Of Gear Teeth133
Tooth Neck Height (Hu)5 mm
Permissible Tooth Forces T39.68
Max Gear Tooth Load Fz79.36
Diameter Of Bearing Raceway980 mm
Distance Between Bottom Outer Ring Inner Ring21 mm
CorrespondFIG3
x·m+0.0
k·m-1.2
K12 mm
n15
Bolt Size (M)16 mm
T24
M8
F62 mm
RoHSCompliant
061.25.0980.108.21.1504
