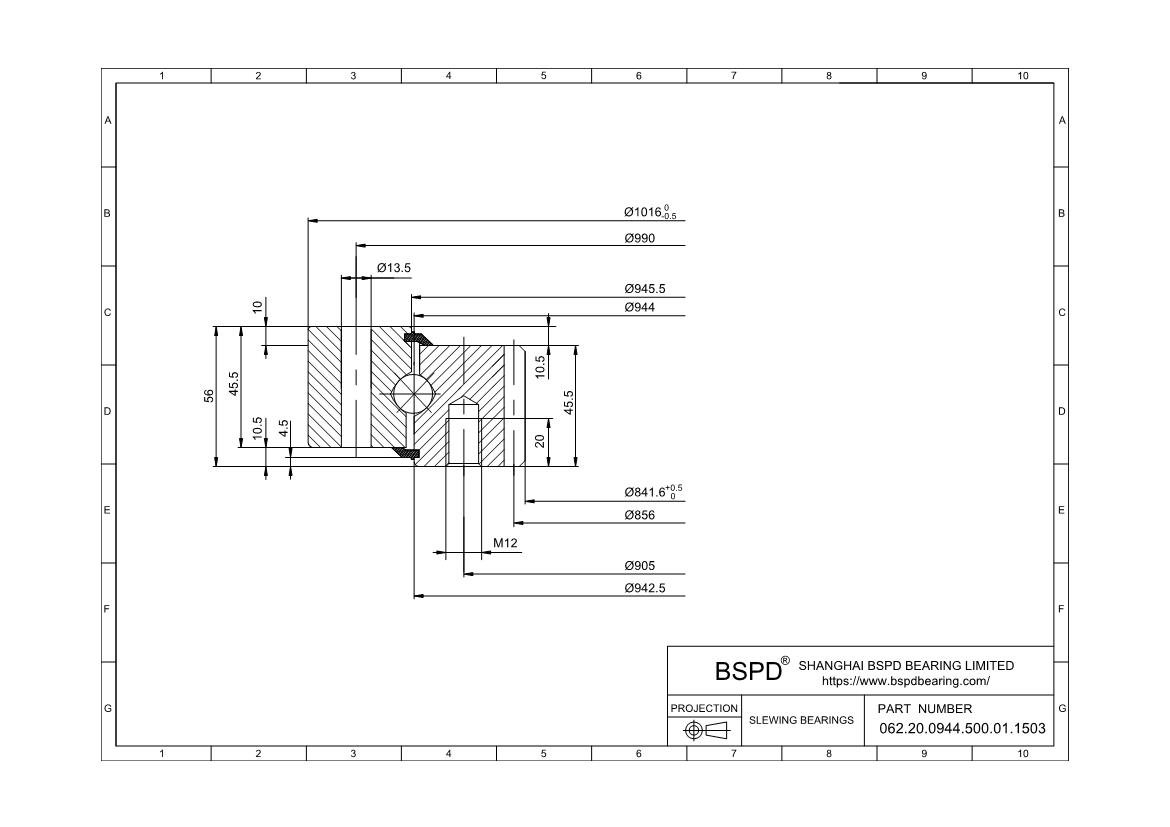

062.20.0944.500.01.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 841.6 mm; Outer Diameter: 1016 mm; Width (Thickness): 56 mm;

062.20.0944.500.01.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number062.20.0944.500.01.1503
SeriesSeries 06
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring841.6 mm
Outside Diameter Of Outer Ring942.5 mm
Internal Diameter On Outer Ring1016 mm
Height Of Overall Bearing Assembly56 mm
Height Of Inner Ring45.5 mm
Height Of Outer Ring45.5 mm
External Diameter On Inner Ring945.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly76 Kg
Bolt Circle In Inner Ring905 mm
Bolt Circle In Outer Ring990 mm
Size Of Hole In Inner Ring13.5 mm
Size Of Hole In Outer Ring13.5 mm
Number Holes In Inner Ring44
Number Holes In Outer Ring44
Diametral Pitch856 mm
Number Of Gear Teeth107
Permissible Tooth Forces T20.49
Max Gear Tooth Load Fz40.98
Diameter Of Bearing Raceway944 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm
CorrespondFIG3
k·m-0.8
K10.5 mm
F19942.5 mm
Bolt Size (M)12 mm
T20
M8
F45.5 mm
RoHSCompliant
