091.20.1006.990.11.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 893 mm; Outer Diameter: 1168 mm; Width (Thickness): 92 mm;

091.20.1006.990.11.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number091.20.1006.990.11.1503
SeriesSeries 09
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring893 mm
Outside Diameter Of Outer Ring1168.0 mm
Internal Diameter On Outer Ring1005 mm
Height Of Overall Bearing Assembly92 mm
Height Of Inner Ring83 mm
Height Of Outer Ring83 mm
External Diameter On Inner Ring1012 mm
External Diameter On Outer Ring1119 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly242 Kg
Bolt Circle In Inner Ring942 mm
Bolt Circle In Outer Ring1075 mm
Size Of Hole In Inner Ring22 mm
Size Of Hole In Outer Ring22 mm
Number Holes In Inner Ring40
Number Holes In Outer Ring40
Diametral Pitch1140 mm
Number Of Gear Teeth114
Permissible Tooth Forces T51.50
Max Gear Tooth Load Fz103.00
Diameter Of Bearing Raceway1006 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

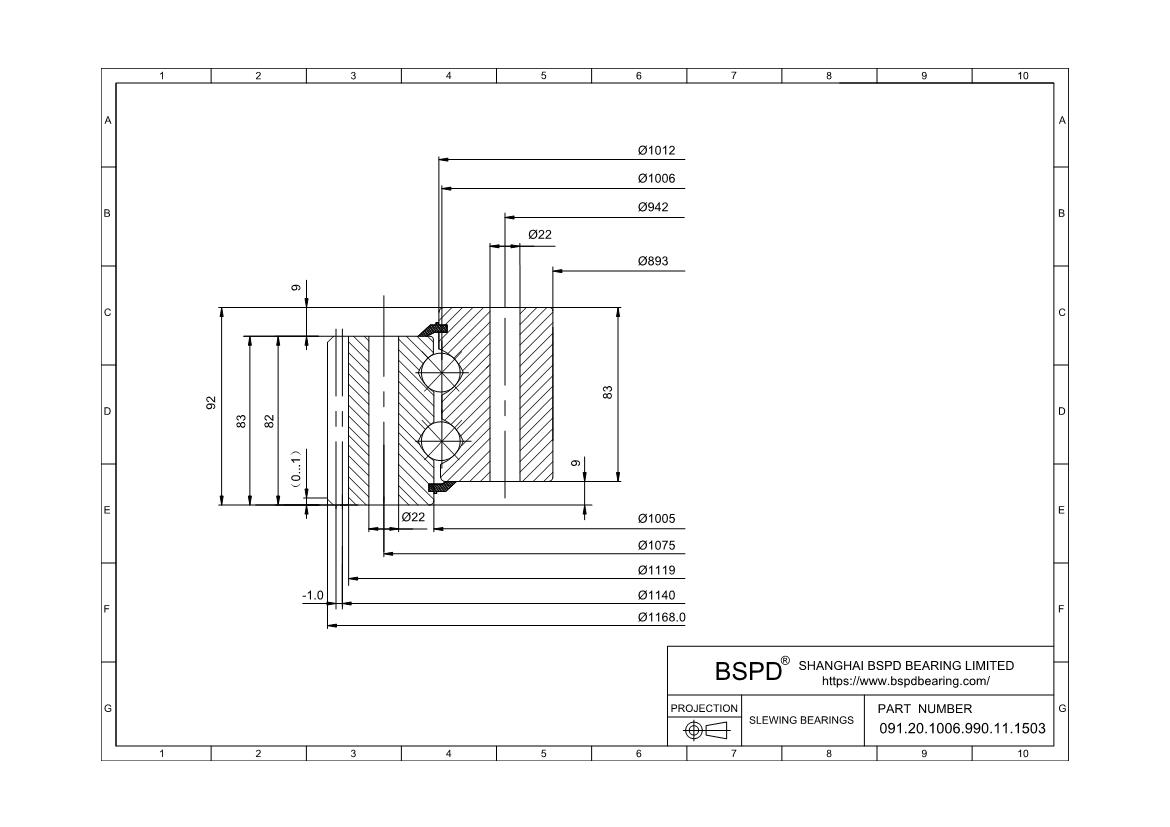

CorrespondFIG1
x·m5
k·m-1.0
K9 mm
n14
Bolt Size (M)20 mm
M10
F82 mm
RoHSCompliant
091.20.1006.990.11.1503
