091.20.1146.991.21.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1033 mm； Outer Diameter: 1308 mm； Width (Thickness): 92 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 091.20.1146.991.21.1503 |
| Series | Series 09 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1033 mm |
| Outside Diameter Of Outer Ring | 1308 mm |
| Internal Diameter On Outer Ring | 1145 mm |
| Height Of Overall Bearing Assembly | 92 mm |
| Height Of Inner Ring | 83 mm |
| Height Of Outer Ring | 83 mm |
| External Diameter On Inner Ring | 1152 mm |
| External Diameter On Outer Ring | 1259 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 270 Kg |
| Bolt Circle In Inner Ring | 1082 mm |
| Bolt Circle In Outer Ring | 1215 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 56 |
| Number Holes In Outer Ring | 56 |
| Diametral Pitch | 1280 mm |
| Number Of Gear Teeth | 128 |
| Permissible Tooth Forces T | 79.23 |
| Max Gear Tooth Load Fz | 158.45 |
| Diameter Of Bearing Raceway | 1146 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |

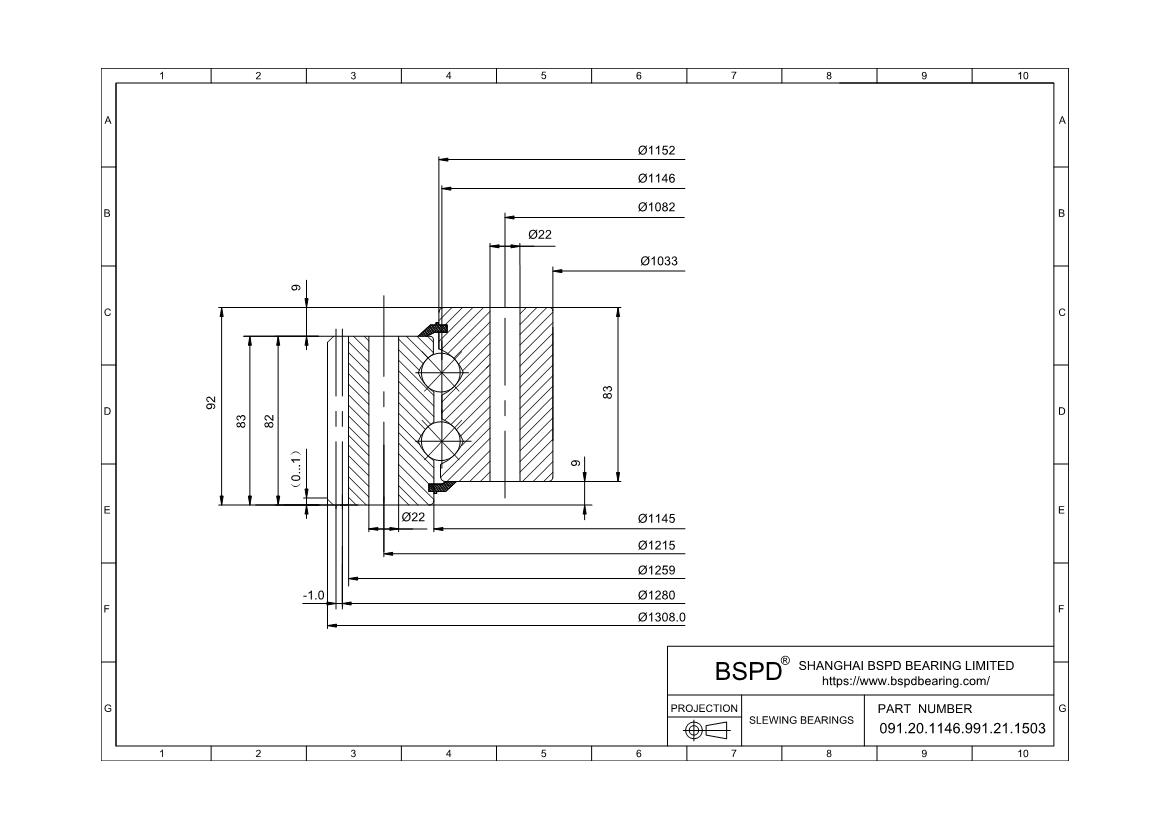

| Correspond | FIG1 |
| x·m | 5 |
| k·m | -1.0 |
| K | 9 mm |
| n1 | 4 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 82 mm |
| RoHS | Compliant |
