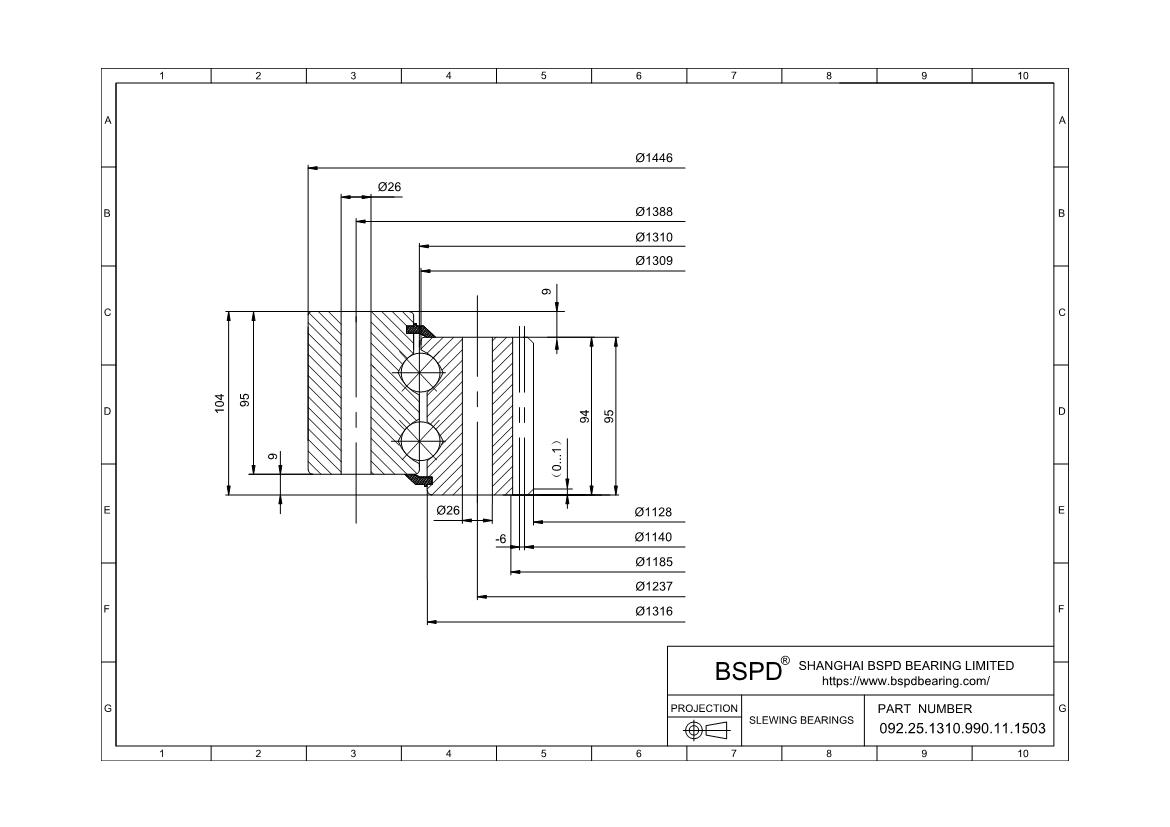

092.25.1310.990.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1128 mm； Outer Diameter: 1446 mm； Width (Thickness): 104 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 092.25.1310.990.11.1503 |
| Series | Series 09 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1128 mm |
| Outside Diameter Of Outer Ring | 1316 mm |
| Internal Diameter On Outer Ring | 1446 mm |
| Height Of Overall Bearing Assembly | 104 mm |
| Height Of Inner Ring | 95 mm |
| Height Of Outer Ring | 95 mm |
| External Diameter On Inner Ring | 1309 mm |
| External Diameter On Outer Ring | 1185 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 389 Kg |
| Bolt Circle In Inner Ring | 1237 mm |
| Bolt Circle In Outer Ring | 1388 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 56 |
| Number Holes In Outer Ring | 56 |
| Diametral Pitch | 1140 mm |
| Number Of Gear Teeth | 95 |
| Permissible Tooth Forces T | 70.84 |
| Max Gear Tooth Load Fz | 141.68 |
| Diameter Of Bearing Raceway | 1310 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -6 |
| K | 9 mm |
| F19 | 1316 mm |
| n1 | 4 |
| Bolt Size (M) | 24 mm |
| M | 12 |
| F | 94 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 092.25.1310.990.11.1503 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
