092.30.1799.990.11.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1596 mm; Outer Diameter: 1950 mm; Width (Thickness): 119 mm;

092.30.1799.990.11.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number092.30.1799.990.11.1502
SeriesSeries 09
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1596 mm
Outside Diameter Of Outer Ring1807 mm
Internal Diameter On Outer Ring1950 mm
Height Of Overall Bearing Assembly119 mm
Height Of Inner Ring110 mm
Height Of Outer Ring110 mm
External Diameter On Inner Ring1797 mm
External Diameter On Outer Ring1656 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly682 Kg
Bolt Circle In Inner Ring1720 mm
Bolt Circle In Outer Ring1884 mm
Size Of Hole In Inner Ring30 mm
Size Of Hole In Outer Ring30 mm
Number Holes In Inner Ring72
Number Holes In Outer Ring72
Diametral Pitch1608 mm
Number Of Gear Teeth134
Permissible Tooth Forces T82.14
Max Gear Tooth Load Fz164.29
Diameter Of Bearing Raceway1799 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

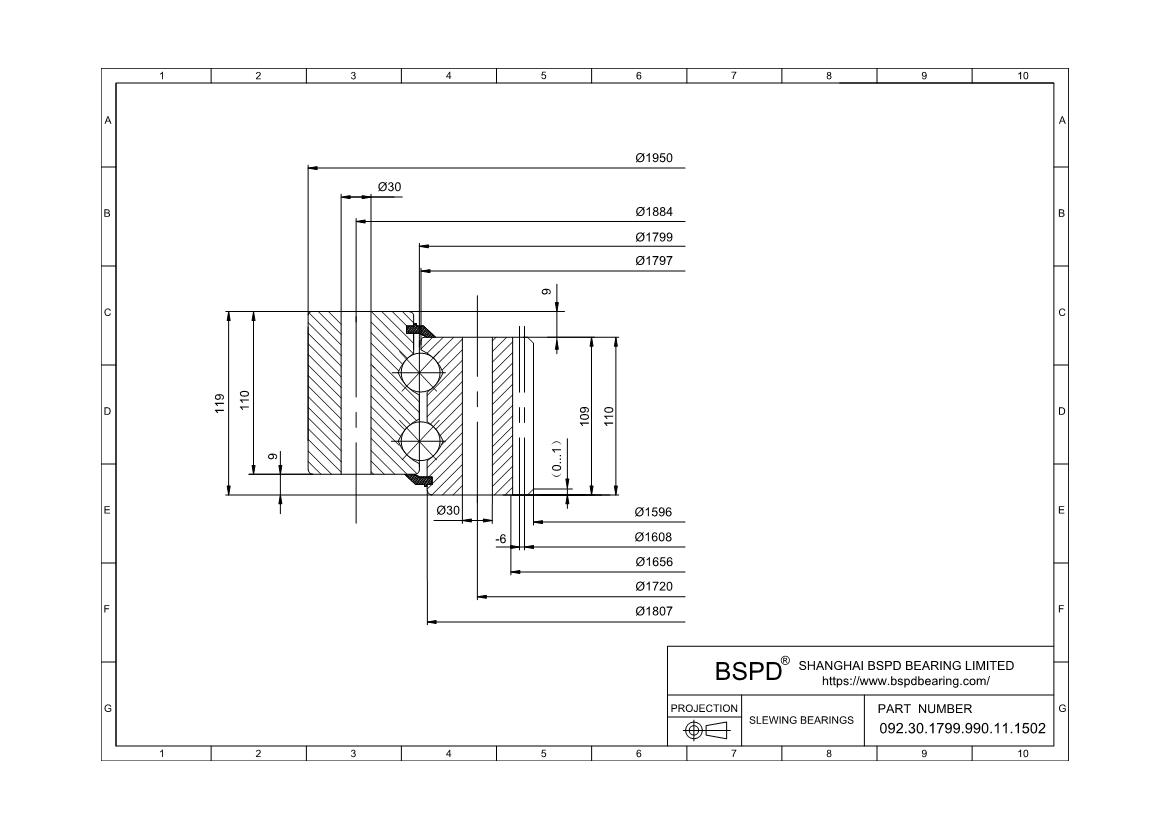

CorrespondFIG2
x·m-6
K9 mm
F191807 mm
n18
Bolt Size (M)27 mm
M12
F108 mm
RoHSCompliant
092.30.1799.990.11.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 092.30.1799.990.11.1502 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
