092.35.1704.991.41.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1484 mm; Outer Diameter: 1870 mm; Width (Thickness): 133 mm;

092.35.1704.991.41.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number092.35.1704.991.41.1502
SeriesSeries 09
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1484 mm
Outside Diameter Of Outer Ring1712 mm
Internal Diameter On Outer Ring1870 mm
Height Of Overall Bearing Assembly133 mm
Height Of Inner Ring124 mm
Height Of Outer Ring124 mm
External Diameter On Inner Ring1702 mm
External Diameter On Outer Ring1551 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly805 Kg
Bolt Circle In Inner Ring1617 mm
Bolt Circle In Outer Ring1797 mm
Size Of Hole In Inner Ring33 mm
Size Of Hole In Outer Ring33 mm
Number Holes In Inner Ring50
Number Holes In Outer Ring50
Diametral Pitch1498 mm
Number Of Gear Teeth107
Permissible Tooth Forces T158.06
Max Gear Tooth Load Fz316.12
Diameter Of Bearing Raceway1704 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

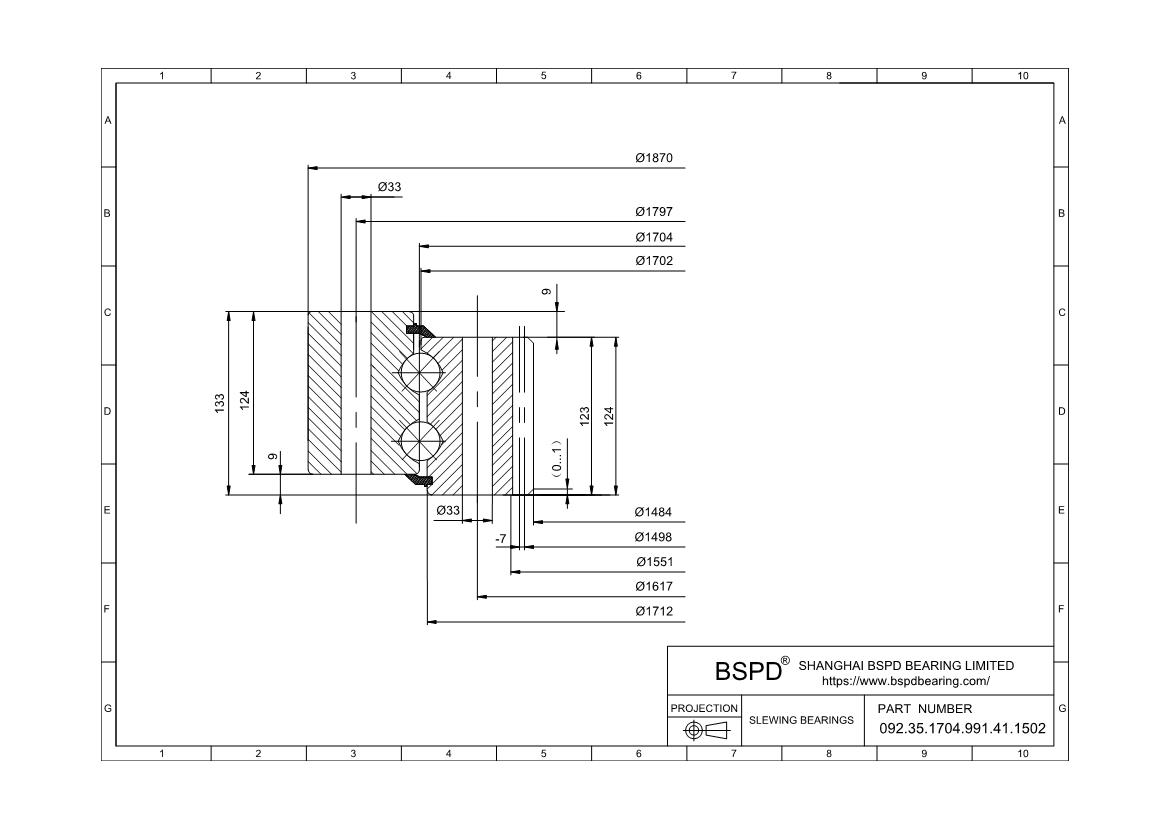

CorrespondFIG2
x·m-7
K9 mm
F191712 mm
n15
Bolt Size (M)30 mm
M14
F123 mm
RoHSCompliant
092.35.1704.991.41.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
