092.35.1900.990.11.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1680 mm; Outer Diameter: 2066 mm; Width (Thickness): 133 mm;

092.35.1900.990.11.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number092.35.1900.990.11.1502
SeriesSeries 09
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1680 mm
Outside Diameter Of Outer Ring1908 mm
Internal Diameter On Outer Ring2066 mm
Height Of Overall Bearing Assembly133 mm
Height Of Inner Ring124 mm
Height Of Outer Ring124 mm
External Diameter On Inner Ring1898 mm
External Diameter On Outer Ring1747 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly884 Kg
Bolt Circle In Inner Ring1813 mm
Bolt Circle In Outer Ring1993 mm
Size Of Hole In Inner Ring33 mm
Size Of Hole In Outer Ring33 mm
Number Holes In Inner Ring64
Number Holes In Outer Ring64
Diametral Pitch1694 mm
Number Of Gear Teeth121
Permissible Tooth Forces T108.14
Max Gear Tooth Load Fz216.29
Diameter Of Bearing Raceway1900 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

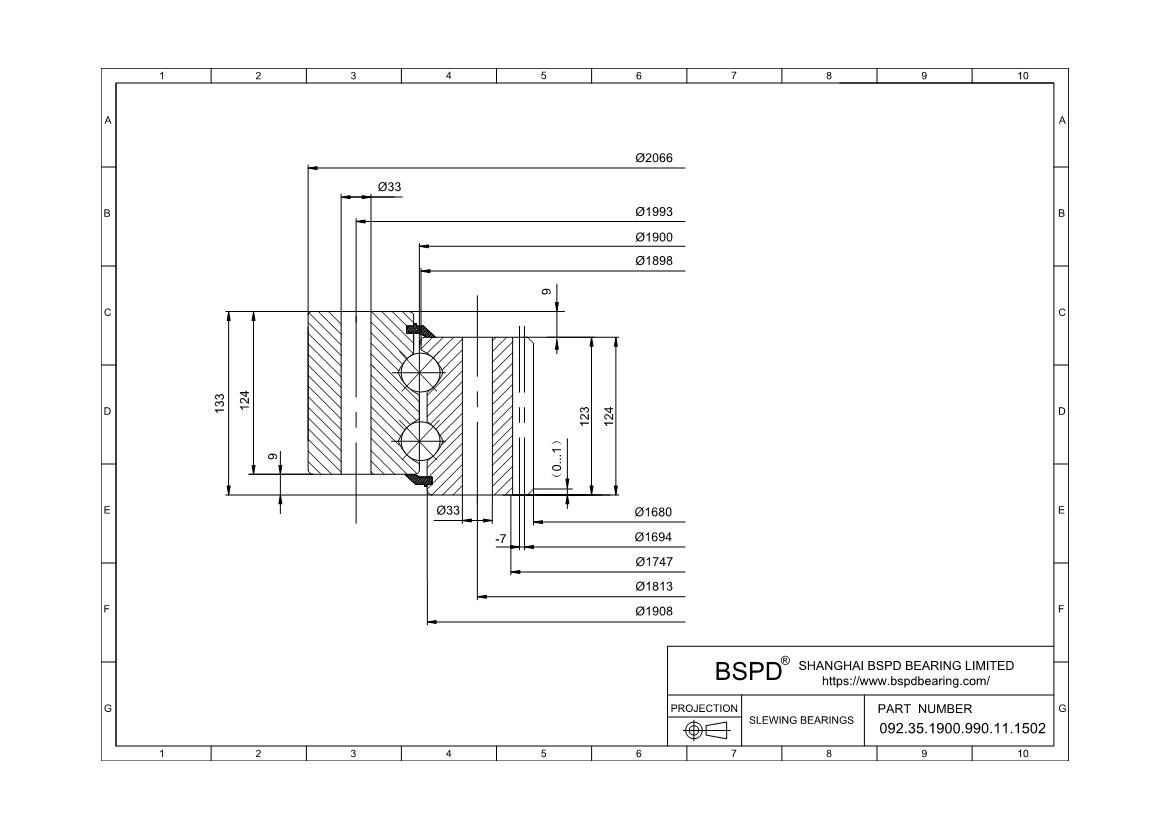

CorrespondFIG2
x·m-7
K9 mm
F191908 mm
n18
Bolt Size (M)30 mm
M14
F123 mm
RoHSCompliant
092.35.1900.990.11.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
