092.40.2003.990.11.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1750 mm; Outer Diameter: 2192 mm; Width (Thickness): 148 mm;

092.40.2003.990.11.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number092.40.2003.990.11.1502
SeriesSeries 09
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1750 mm
Outside Diameter Of Outer Ring2011 mm
Internal Diameter On Outer Ring2192 mm
Height Of Overall Bearing Assembly148 mm
Height Of Inner Ring139 mm
Height Of Outer Ring139 mm
External Diameter On Inner Ring2001 mm
External Diameter On Outer Ring1819 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly1221 Kg
Bolt Circle In Inner Ring1899 mm
Bolt Circle In Outer Ring2113 mm
Size Of Hole In Inner Ring36 mm
Size Of Hole In Outer Ring36 mm
Number Holes In Inner Ring60
Number Holes In Outer Ring60
Diametral Pitch1764 mm
Number Of Gear Teeth126
Permissible Tooth Forces T121.33
Max Gear Tooth Load Fz242.67
Diameter Of Bearing Raceway2003 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

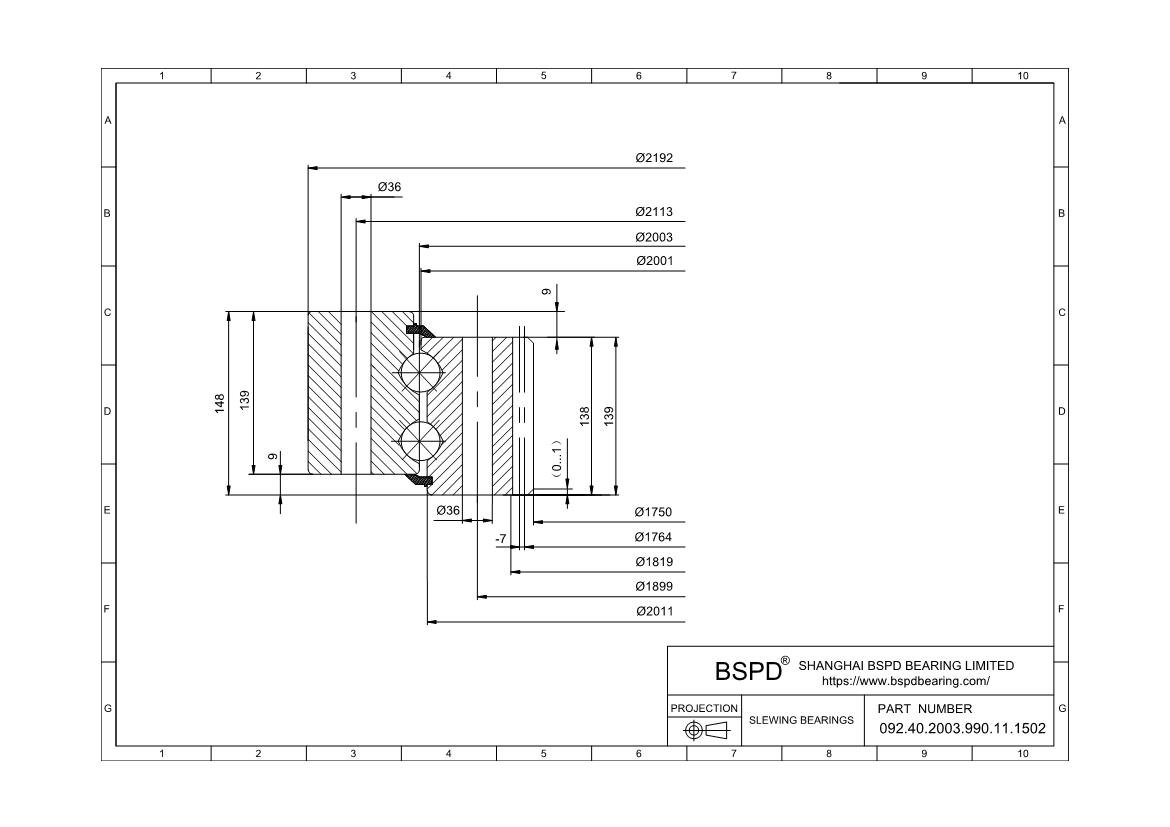

CorrespondFIG2
x·m+7
K9 mm
F192011 mm
n110
Bolt Size (M)33 mm
M14
F138 mm
RoHSCompliant
092.40.2003.990.11.1502
