092.40.2395.990.11.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2142 mm; Outer Diameter: 2584 mm; Width (Thickness): 148 mm;

092.40.2395.990.11.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number092.40.2395.990.11.1502
SeriesSeries 09
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring2142 mm
Outside Diameter Of Outer Ring2403 mm
Internal Diameter On Outer Ring2584 mm
Height Of Overall Bearing Assembly148 mm
Height Of Inner Ring139 mm
Height Of Outer Ring139 mm
External Diameter On Inner Ring2393 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly1480 Kg
Permissible Tooth Forces T121.3
Max Gear Tooth Load Fz242.67
Diameter Of Bearing Raceway2395 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

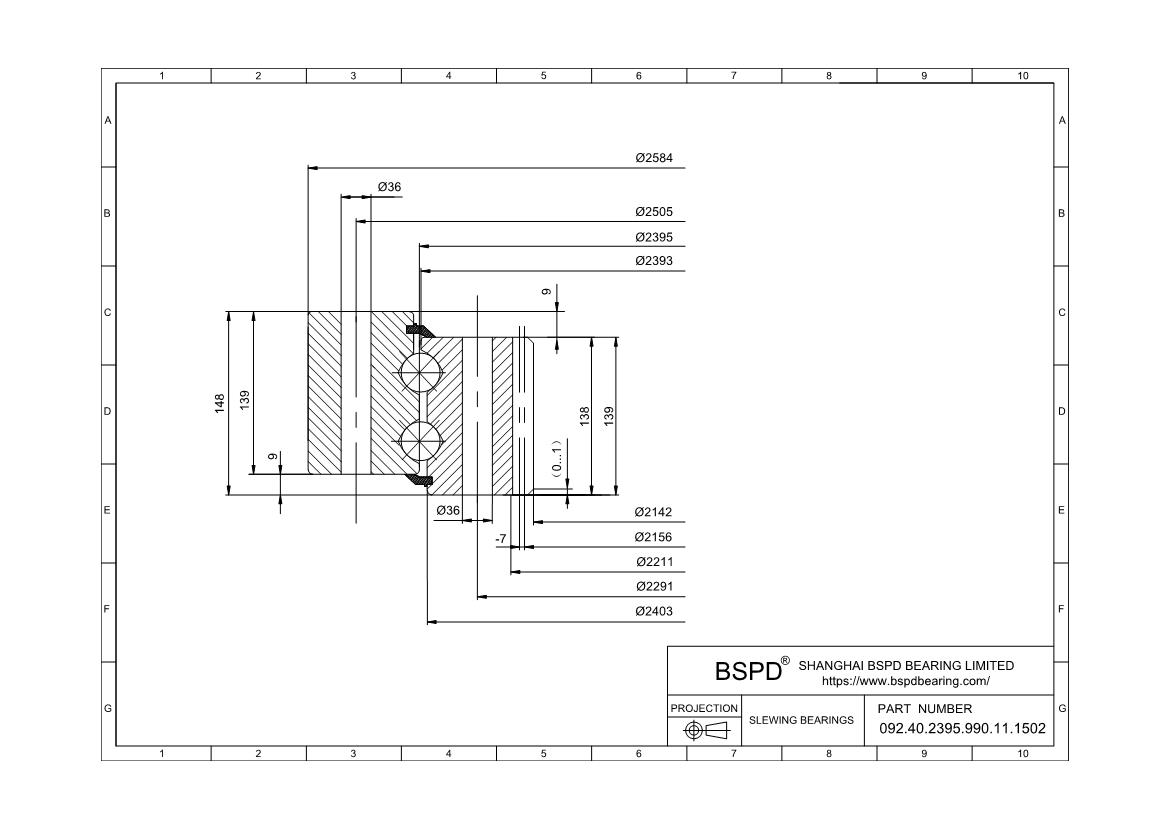

CorrespondFIG2
K9 mm
F192403 mm
RoHSCompliant
092.40.2395.990.11.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
