11-20 0413/1-32112 IMO Slewing Rings & Slewing drives

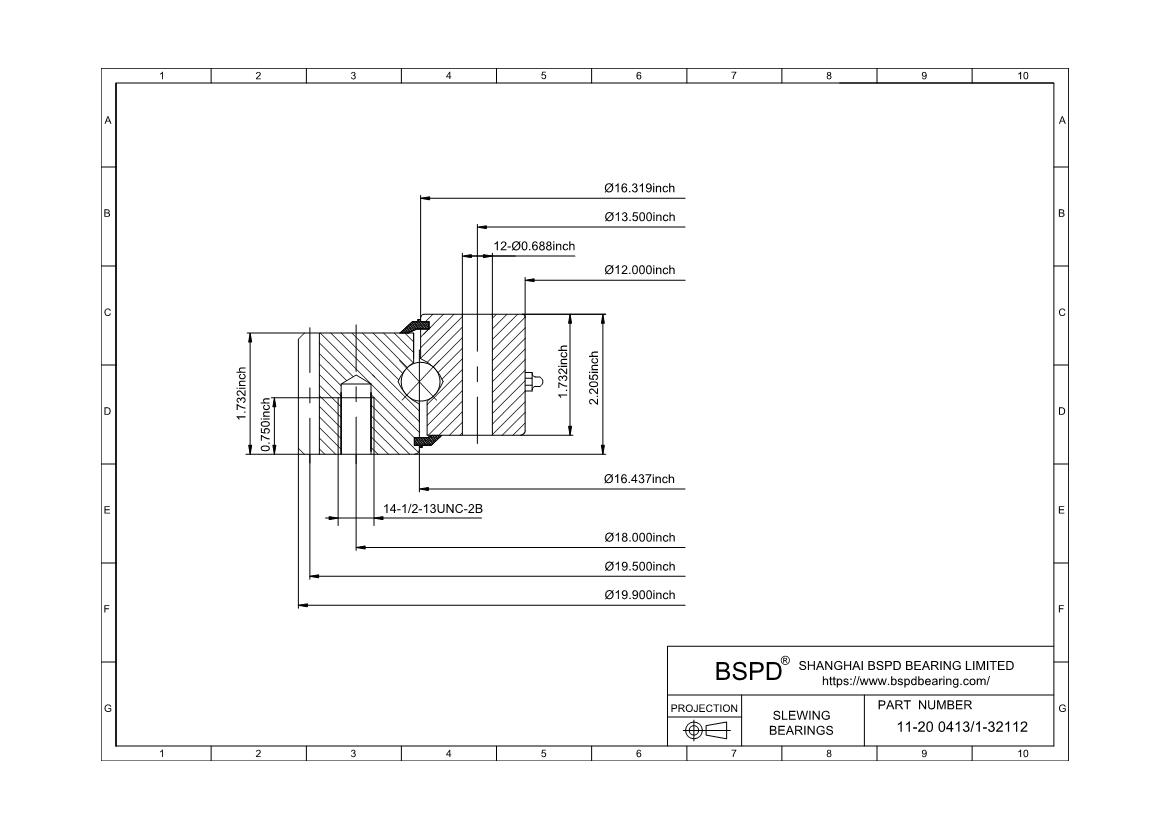

Dimensions: Bore (Inner) Diameter: 12.0; Outer Diameter: 19.9; Width (Thickness): ;

11-20 0413/1-32112
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number 11-20 0413/1-32112
Gear External toothed
Geometry
Weight(G) 71
Outside diameter outer ring(Da) 19.9
Inside diameter inner ring(di) 12
inside diameter outer ring(Di) 16.437
Outside diameter inner ring (da) 16.319
Outside bole-hole circle diameter (La)
intside bole-hole circle diameter (Li)
Mounting Holes
Pitch circle diameter Outer Ring (La) 18
Number Holes in Outer Ring (na) 14
Pitch circle diameter Inner Ring (Li) 13.5
Number Holes in Inner Ring (ni) 12
Gearing and Tooth Forces
Pitch Circle Diameter (do) 19.5
Diametral Pitch (Pd) 4
Number of Teeth (Z2) 78
Permissible tooth force (fz norm)(lbs) 2540
Maximum perissible tooth force (fz max)(lbs) 5800
Load Rating
Static Co rad(lbs) 57101
Static Co Max(lbs) 133087
Dynamic C rad(lbs) 35070
Dynamic C Max(lbs) 35070
11-20 0413/1-32112
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
