11-20 0741/1-32142 IMO Slewing Rings & Slewing drives

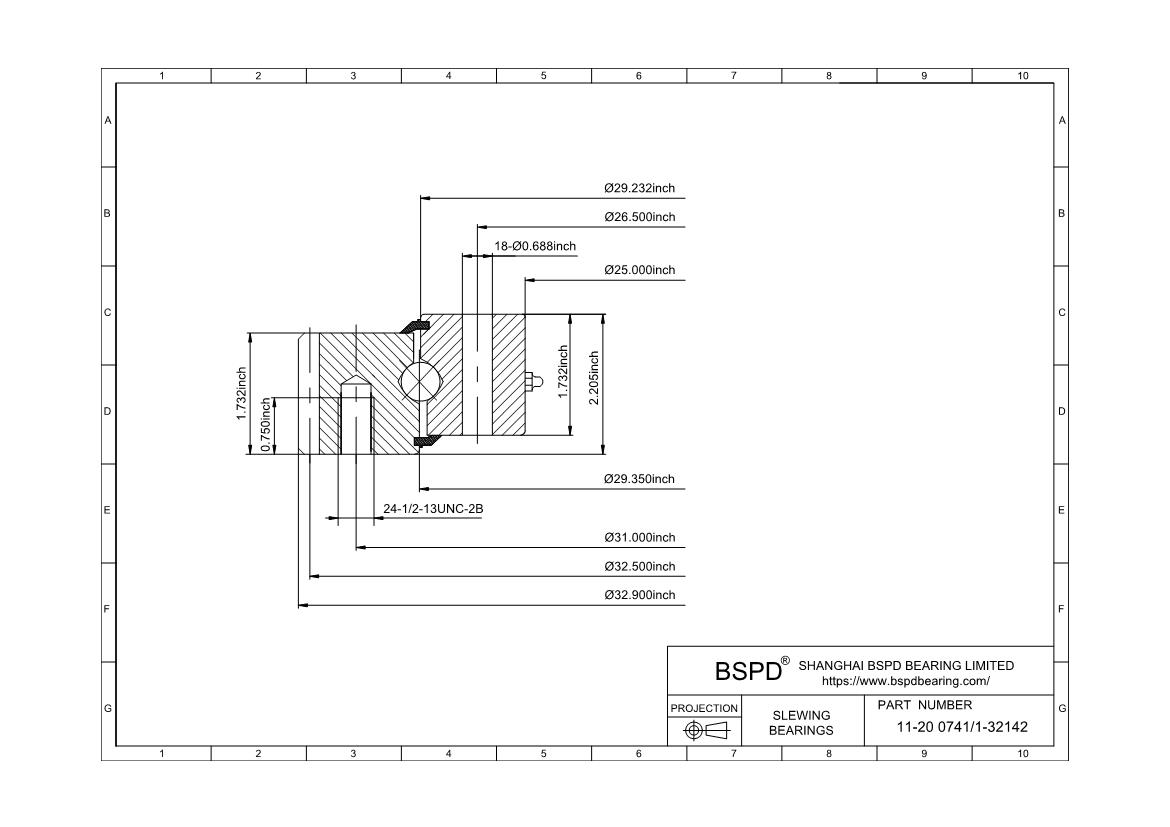

Dimensions: Bore (Inner) Diameter: 25.0; Outer Diameter: 32.9; Width (Thickness): ;

11-20 0741/1-32142
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number 11-20 0741/1-32142
Gear External toothed
Geometry
Weight(G) 128
Outside diameter outer ring(Da) 32.9
Inside diameter inner ring(di) 25
inside diameter outer ring(Di) 29.350
Outside diameter inner ring (da) 29.232
Outside bole-hole circle diameter (La)
intside bole-hole circle diameter (Li)
Mounting Holes
Pitch circle diameter Outer Ring (La) 31
Number Holes in Outer Ring (na) 24
Pitch circle diameter Inner Ring (Li) 26.5
Number Holes in Inner Ring (ni) 18
Gearing and Tooth Forces
Pitch Circle Diameter (do) 32.5
Diametral Pitch (Pd) 4
Number of Teeth (Z2) 130
Permissible tooth force (fz norm)(lbs) 2540
Maximum perissible tooth force (fz max)(lbs) 5800
Load Rating
Static Co rad(lbs) 102738
Static Co Max(lbs) 240043
Dynamic C rad(lbs) 43613
Dynamic C Max(lbs) 43838
11-20 0741/1-32142
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
